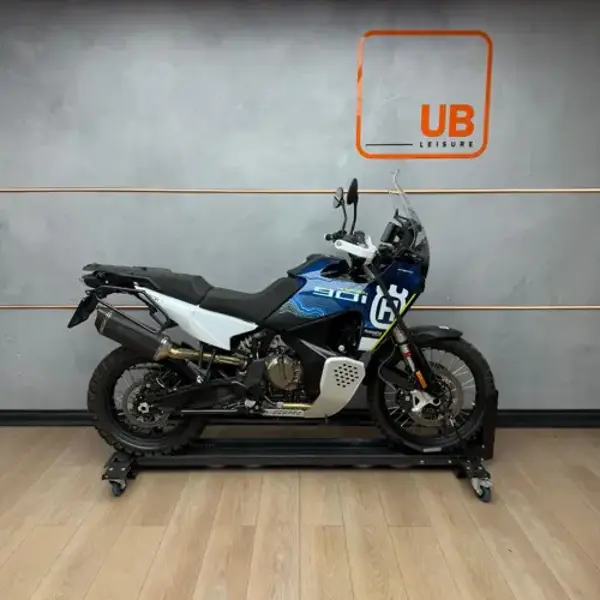

2023 Husqvarna Norden 901 Expedition Overview
The 2023 Husqvarna Norden 901 Expedition is an enduro / off-road motorcycle built around 889 cc of displacement. Under the tank sits a Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder engine, a compression ratio of 13.5:1. 2023 Husqvarna Norden 901 Expedition delivers 78.3 kW @ 8000 rpm of peak power and 100 Nm @ 6500 rpm of torque. From a practical standpoint, the 2023 Norden 901 Expedition tips the scales at 214.5 kg, carries a 19-litre fuel tank, offers a seat height of 875 - 895 mm and spans a 1,529 mm ± 15 mm wheelbase. That's roughly 15.7 kg heavier than the average enduro / off-road motorcycle in our database. Scroll down for the complete 2023 Husqvarna Norden 901 Expedition spec sheet covering every technical detail from suspension travel to tyre sizes.
2023 Norden 901 Expedition - Pros & Cons
Strengths
-
⚡
Strong power output: 2023 Husqvarna Norden 901 Expedition makes 78.3 kW @ 8000 rpm with 100 Nm @ 6500 rpm of torque - competitive figures for its class.
-
⛽
Large fuel range: The 19-litre tank is generously sized, translating to extended range between stops - ideal for touring or longer commutes.
Considerations
-
📏
Tall seat height: The 875 - 895 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
-
⚙️
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.
Wear Points & Servicing Notes
Cooling system servicing
The Liquid cooled with water/oil heat exchanger system on the Norden 901 Expedition needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.
Brake disc and pad wear
The 2x 320mm discs, 4-piston radially mounted calipers front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.
Suspension condition on used examples
Up front, the Norden 901 Expedition runs 48mm WP XPLOR-USD, compression, rebound, preload and WP XPLOR-Monoshock, Compression high/low speed, rebound, preload at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.
Final drive maintenance
Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.
Frame & chassis check
The frame is Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.
Norden 901 Expedition - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2023 Husqvarna Norden 901 Expedition, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Norden 901 Expedition should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task on any Norden 901 Expedition. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.
Carburetor upkeep
Keep the carburetors clean and free of deposits. If the Norden 901 Expedition has been stored, strip and clean the carb float bowls before attempting to start it. Pilot jets are the first to block and the last to be checked - always include them in any carb rebuild.
2023 Husqvarna Norden 901 Expedition - Frequently Asked Questions
What engine does the 2023 Husqvarna Norden 901 Expedition have?
The 2023 Husqvarna Norden 901 Expedition uses a Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder engine with 889 cc of displacement. It is liquid cooled with water/oil heat exchanger.
How much does the 2023 Husqvarna Norden 901 Expedition weigh?
The 2023 Husqvarna Norden 901 Expedition weighs 214.5 kg. This is the manufacturer's wet figure.
How much power does the 2023 Husqvarna Norden 901 Expedition make?
The 2023 Husqvarna Norden 901 Expedition produces 78.3 kW @ 8000 rpm of power and 100 Nm @ 6500 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2023 Husqvarna Norden 901 Expedition?
The 2023 Husqvarna Norden 901 Expedition has a 19-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 316-380 km between stops.
Is the 2023 Husqvarna Norden 901 Expedition suitable for shorter riders?
The 2023 Husqvarna Norden 901 Expedition has a seat height of 875 - 895 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2023 Husqvarna Norden 901 Expedition have?
The 2023 Husqvarna Norden 901 Expedition uses 2x 320mm discs, 4-piston radially mounted calipers at the front and Single 260mm disc, 2 piston floating caliper at the rear.
What tyre sizes does the 2023 Husqvarna Norden 901 Expedition use?
The 2023 Husqvarna Norden 901 Expedition runs 90/90 R 21 Pirelli Scorpion Rally STR front and 150/70 R 18 Pirelli Scorpion Rally STR rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2023 Husqvarna Norden 901 Expedition have?
The 2023 Husqvarna Norden 901 Expedition is fitted with a 6 Speed transmission.
Husqvarna Norden 901 Expedition Spec Evolution
The Husqvarna Norden 901 Expedition was produced across 2 model years (2023-2025). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2023 |
2025 |
| Wet Weight |
214.5 kg / 472.8 lb without fuel |
214.5 kg / 472.8 lb |
| Seat Height |
875 - 895 mm / 34.4 - 35.2 in |
887 - 907 mm / 34.94 - 35.7 in |
| Fuel Capacity |
19 Litres / 5.0 US gal |
22 Litres / 5.8 US gal |
| Final Drive Ratio |
16.45 |
16:45 |
| Primary Drive Ratios |
39.75 |
39:75 |
Key Specifications
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Power
78.3 kW / 105 hp @ 8000 rpm
Torque
100 Nm / 73.7 lb-ft @ 6500 rpm
Top Speed
Not published by manufacturer
Weight
214.5 kg / 472.8 lb without fuel
Fuel Capacity
19 Litres / 5.0 US gal
Advertisement
Full 2023 Husqvarna Norden 901 Expedition Specifications
Year
2023
Make Model
Husqvarna Norden 901 Expedition
Seat Height
875 - 895 mm / 34.4 - 35.2 in
Wheelbase
1,529 mm ± 15 mm / 60.1 in ± 0.6 in
Ground Clearance
270 mm / 10.6 in
Dry Weight
211.5 kg / 466.2
Fuel Capacity
19 Litres / 5.0 US gal
Wet Weight
214.5 kg / 472.8 lb without fuel
Displacement
889 cc / 54.3 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
90.7 x 68.8 mm
Compression Ratio
13.5:1
Cooling System
Liquid cooled with water/oil heat exchanger
Emissions
Euro 5
Engine Management
Bosch EMS with RBW
Exhaust
Stainless steel primary and secondary silencer
Fuel Induction
DKK Dell'Orto with 46mm throttle body
Lubrication
Pressure lubrication with 2 oil pumps
Starter
Electric
Clutch
Cable operated PASC Slipper clutch
Final Drive
Chain 520 X-Ring
Final Drive Ratio
16.45
Primary Drive Ratios
39.75
Transmission / Drive
6 Speed
Frame Type
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Suspension - Front
48mm WP XPLOR-USD, compression, rebound, preload
Suspension - Rear
WP XPLOR-Monoshock, Compression high/low speed, rebound, preload
Clamp Offset - Triple
30 mm / 1.1 in
Handlebar
Aluminium, tapered, Ø 28/22 mm
Rake
25.8°
Steering Head Angle
64.2°
Subframe
Chromium-Molybdenum-Steel trellis, powder coated
Trail
106.9 mm / 4.2 in
Wheel Travel - Front
240 mm / 9.4 in
Wheel Travel - Rear
240 mm / 9.4 in
Traction control
MTC (lean angle sensitive, 3-Mode, disengageable, Explorer mode optional)
Brakes - Front
2x 320mm discs, 4-piston radially mounted calipers
Brakes - Rear
Single 260mm disc, 2 piston floating caliper
ABS
Bosch 9.1 ME (incl. Cornering-ABS and Offroad mode, disengageable)
Tyres - Front
90/90 R 21 Pirelli Scorpion Rally STR
Tyres - Rear
150/70 R 18 Pirelli Scorpion Rally STR
Wheels
Tubeless Aluminium spoked wheels
Wheels - Front
2.50 x 21
Wheels - Rear
4.50 x 18
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
