Key Specifications
Engine
Single cylinder, four-stroke
Weight
107.5 kg / 237 lbs
Fuel Capacity
9.5 Litres / 2.8 US gal
Advertisement

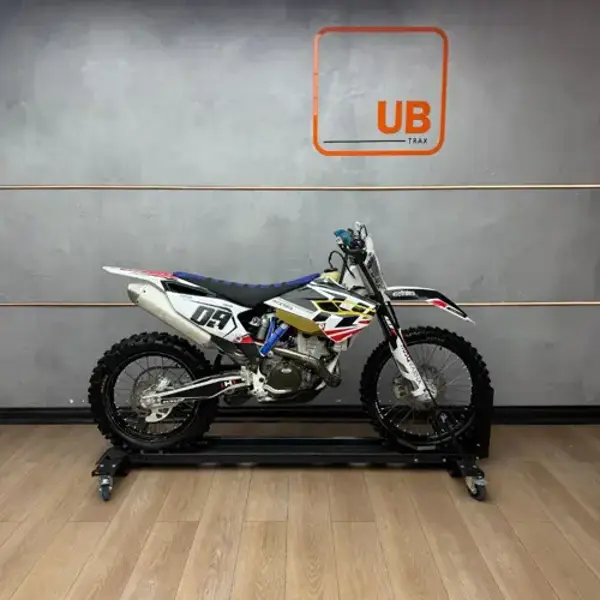

Full 2015 Husqvarna FE 250 Specifications
Comments
Swedish made bike.
Year
2014 - 15
Colours
Blue/yellow
Make Model
Husqvarna FE 250
Warranty
2 Years
Ground Clearance (mm)
345 mm
Ground Clearance (in.)
13.6 inches
Seat Height
970 mm / 38.2 in
Wheelbase
1482±10 mm / 58.3 in
Ground Clearance
345 mm / 13.6 in
Length
2260 mm / 89.0 in
Dry Weight
107.5 kg / 237 lbs
Fuel Capacity
9.5 Litres / 2.8 US gal
Fuel Control
DOHC
Engine Type
Single cylinder, four-stroke
Displacement
249.9 cc / 15.2 cu in
Engine Detail
Four stroke. single cylinder. DOHC. 4 valve per cylinder
Fuel System
Injection. Keihin Digital Fuel Injection
Bore x Stroke
78 x 52.30 mm
Compression Ratio
12.8:1.
Cooling System
Liquid cooling system, continuous circulation of cooling liquid with water pump
Engine Lubrication
Forced oil lubrication with 2 Eaton pumps
Fuel Induction
Keihin electronic fuel injection and 42mm throttle body
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Forced oil lubrication with 2 Eaton pumps
Starter
Electric
Clutch
Wet multi-disc clutch DDS / Brembo hydraulics
Final Drive
Chain 520 X-Ring
Gearbox
6-speed
Primary Drive Ratios
24:73
Secondary Drive Ratio
14:52 (13:52)
Transmission / Drive
6-speed, claw shifted
Frame Type
Central tube frame made of chrome molybdenum steel tubing
Suspension - Front
WP Suspension Up Side Down 4CS forks.
Suspension - Rear
WP Monoshock with linkage
Rake
26.5°
Steering Head Angle
63.5°
Trail
107 mm / 4.2 in
Wheel Travel - Front
300 mm /11.8 in
Wheel Travel - Rear
330 mm / 13.0 in
Brakes - Front Diameter (in.)
10.2 inches
Brakes - Front Diameter (mm)
260 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Single 260 mm with 4 pot brake caliper
Brakes - Rear
Single 220 mm with 1 pot brake caliper
Tyres - Front
90/90-21
Tyres - Rear
140/90-18
