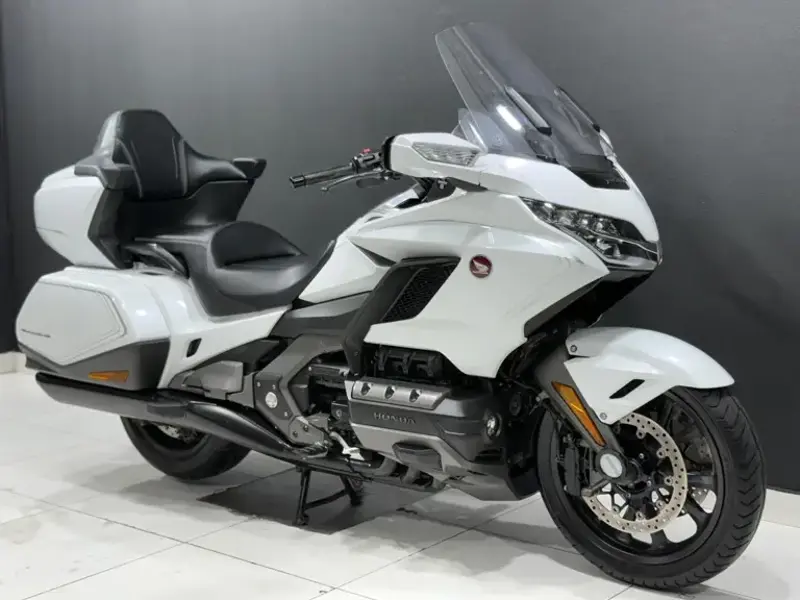

2020 Honda GL 1800 Gold Wing / DCT Specifications

Name: 2020 Honda GL 1800 Gold Wing / DCT
Brand: Honda

Touring • Specs last verified 13 July 2026

No images available

Tap to enlarge

2020 Honda GL 1800 Gold Wing / DCT Overview

For 2020, Honda offers the GL 1800 Gold Wing / DCT as a touring motorcycle with 1833 cc on tap. The 2020 Honda GL 1800 Gold Wing / DCT is built around a Four stroke, opposed boxer six cylinders, SOHC, 4-valve per cylinder, finger-follower rocker arm on intake, roller-rocker arm on exhaust engine, a compression ratio of 10.5:1. Out on the road, the GL 1800 Gold Wing / DCT delivers 124.7 hp @ 5500 rpm of peak power and 170 Nm @ 4500 rpm of torque. In everyday use, the 2020 GL 1800 Gold Wing / DCT tips the scales at 356 kg, carries a 21.1-litre fuel tank, offers a seat height of 744.2 mm and spans a 1694 mm wheelbase. That's roughly 31.9 kg heavier than the average touring motorcycle in our database. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2020 Honda GL 1800 Gold Wing / DCT spec sheet below.

2020 GL 1800 Gold Wing / DCT - Pros & Cons

Strengths

Strong power output: Peak output on the GL 1800 Gold Wing / DCT is 124.7 hp @ 5500 rpm and 170 Nm @ 4500 rpm of torque - strong numbers for what it is.
Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
Accessible seat height: At just 744.2 mm, flat-footing at a stop is easy for most riders - a genuine confidence builder for less experienced owners.
Large fuel range: With a 21.1-litre tank, this isn't a bike you'll be stopping for fuel every hour - a real asset on longer trips.
Low-maintenance final drive: Shaft final drive is about as close to maintenance-free as motorcycle drivetrains get.

Considerations

Age-related wear: No particular mechanical concern flags for the GL 1800 Gold Wing / DCT - condition on any used example comes down to how well it's been looked after.

Wear Points & Servicing Notes

Cooling system servicing

With Liquid cooled, thermal management is largely automatic, but the coolant has a service life of its own - replace it on the manufacturer's interval to protect the water passages and thermostat.

Fuelling & injector care

Fuelling on the GL 1800 Gold Wing / DCT comes from fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.

Brake disc and pad wear

2x 320mm discs 6-piston Nissin calipers up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.

Suspension condition on used examples

Suspension duties are handled by Double-wishbone front-suspension system w/Showa shock absorber up front and Pro-Link system w/ Showa shock absorber at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.

Final drive maintenance

Shaft final drive on the GL 1800 Gold Wing / DCT removes chain and belt maintenance entirely - the trade-off is a little extra unsprung weight and periodic gear-oil changes.

Handling the weight at a standstill

The GL 1800 Gold Wing / DCT's 356 kg kerb weight is worth factoring into how you handle it at a standstill - parking-lot manoeuvres need a bit more deliberate technique than on a lighter machine.

GL 1800 Gold Wing / DCT - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 2020 Honda GL 1800 Gold Wing / DCT should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept GL 1800 Gold Wing / DCT settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a GL 1800 Gold Wing / DCT's engine - keep to the manufacturer's interval rather than stretching it. Use the viscosity grade the manual specifies, not whatever's on sale.

Carburetor upkeep

A GL 1800 Gold Wing / DCT that's sat unused is almost always a carb-cleaning job before it runs right again - float bowls and pilot jets first, since they clog before anything else.

2020 Honda GL 1800 Gold Wing / DCT - Frequently Asked Questions

What engine does the 2020 Honda GL 1800 Gold Wing / DCT have?

The 2020 Honda GL 1800 Gold Wing / DCT uses a Four stroke, opposed boxer six cylinders, SOHC, 4-valve per cylinder, finger-follower rocker arm on intake, roller-rocker arm on exhaust engine with 1833 cc of displacement. It is liquid cooled.

How much does the 2020 Honda GL 1800 Gold Wing / DCT weigh?

The 2020 Honda GL 1800 Gold Wing / DCT weighs 356 kg. This is the manufacturer's wet figure.

How much power does the 2020 Honda GL 1800 Gold Wing / DCT make?

The 2020 Honda GL 1800 Gold Wing / DCT produces 124.7 hp @ 5500 rpm of power and 170 Nm @ 4500 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2020 Honda GL 1800 Gold Wing / DCT?

The 2020 Honda GL 1800 Gold Wing / DCT has a 21.1-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 351-422 km between stops.

Is the 2020 Honda GL 1800 Gold Wing / DCT suitable for shorter riders?

The 2020 Honda GL 1800 Gold Wing / DCT has a seat height of 744.2 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2020 Honda GL 1800 Gold Wing / DCT have?

The 2020 Honda GL 1800 Gold Wing / DCT uses 2x 320mm discs 6-piston Nissin calipers at the front and Single 316mm disc 3-piston Nissin caliper at the rear.

What tyre sizes does the 2020 Honda GL 1800 Gold Wing / DCT use?

The 2020 Honda GL 1800 Gold Wing / DCT runs 130/7018 front and 200/55-R16 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2020 Honda GL 1800 Gold Wing / DCT have?

The 2020 Honda GL 1800 Gold Wing / DCT is fitted with a 6-speed manual or 7-speed automatic DCT w/ Walking Mode F/R transmission.

Honda GL 1800 Gold Wing / DCT Spec Evolution

The Honda GL 1800 Gold Wing / DCT was produced across 3 model years (2018-2020). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2018	2019	2020
Max Power	118 hp / 86.1 kW @ 5500 rpm	118 hp / 86.1 kW @ 5500 rpm	124.7 hp / 93 kW @ 5500 rpm
Wet Weight	357 kg / 787 lbs - DCT 363 kg / 800 lbs	357 kg / 787 lbs - DCT 363 kg / 800 lbs	356 kg / 787 lbs - DCT 364 kg / 800 lbs
Fuel Capacity	20.8 Litres / 5.5 US gal	20.8 Litres / 5.5 US gal	21.1 Litres / US 5.57 gal
Displacement	1833 cc / 111.85 cub in.	1833 cc / 111.85 cub in.	1833 cc / 111.85 cub in
Max Torque	167 Nm / 123.2 lb-ft @ 4000 rpm	167 Nm / 123.2 ft-lb @ 4000 rpm	170 Nm / 125.3 ft-lb @ 4500 rpm

Key Specifications

Engine

Four stroke, opposed boxer six cylinders, SOHC, 4-valve per cylinder, finger-follower rocker arm on intake, roller-rocker arm on exhaust

Power

124.7 hp / 93 kW @ 5500 rpm

Torque

170 Nm / 125.3 ft-lb @ 4500 rpm

Top Speed

Not published by manufacturer

Weight

356 kg / 787 lbs - DCT 364 kg / 800 lbs

Fuel Capacity

21.1 Litres / US 5.57 gal

Full 2020 Honda GL 1800 Gold Wing / DCT Specifications

Year 2020

Make Model Honda GL 1800 Gold Wing / DCT

Seat Height 744.2 mm / 29.3 in

Wheelbase 1694 mm / 66.7 in

Ground Clearance 130 mm / 5.11 in

Fuel Capacity 21.1 Litres / US 5.57 gal

Wet Weight 356 kg / 787 lbs - DCT 364 kg / 800 lbs

Max Power 124.7 hp / 93 kW @ 5500 rpm

Max Torque 170 Nm / 125.3 ft-lb @ 4500 rpm

Displacement 1833 cc / 111.85 cub in

Engine Detail Four stroke, opposed boxer six cylinders, SOHC, 4-valve per cylinder, finger-follower rocker arm on intake, roller-rocker arm on exhaust

Bore x Stroke 73 x 73 mm

Compression Ratio 10.5:1

Cooling System Liquid cooled

Fuel Induction EFI, 50mm throttle body

Ignition Computer controlled digital

Starter Electric

Battery Capacity 12V/20AH

Clutch Hydraulic, wet, multiplate with coil springs

Final Drive Shaft

Transmission / Drive 6-speed manual or 7-speed automatic DCT w/ Walking Mode F/R

Suspension - Front Double-wishbone front-suspension system w/Showa shock absorber

Suspension - Rear Pro-Link system w/ Showa shock absorber

Rake 30.5°

Trail 110mm / 4.3 in

Wheel Travel - Front 110 mm / 4.3 in

Wheel Travel - Rear 104 mm / 4.1 in

Brakes - Front 2x 320mm discs 6-piston Nissin calipers

Brakes - Rear Single 316mm disc 3-piston Nissin caliper

ABS Electronically controlled combined ABS

Tyres - Front 130/7018

Tyres - Rear 200/55-R16

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
