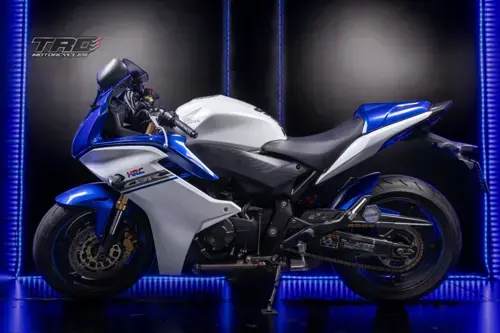

Honda CBR 600F Specs

2011 • 1 variants

Honda has built the CBR 600F, a sport motorcycle, across 1 variant since 2011. Under the tank sits a four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., 598.00 cc in capacity. It makes 102 hp at peak.

About the Honda CBR 600F

Documented here are the full technical specifications for the Honda CBR 600F, a Sport motorcycle with a production run from 1987 to 2013. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

Honda CBR 600F by Year

2011 Honda CBR 600F View specs →

Spec Evolution

How key specs changed across production years.

Specification	1987	1988	1989	1990	1991	1992	1993	1994	1996	1997	1998	1999	2001	2002	2003	2007	2011	2012	2013
Fuel Control	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	-	-	-	-	-	-	-	-	-	DOHC	DOHC	DOHC	Double Overhead Cams/Twin Cam (DOHC)
Engine Type	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Displacement (ci)	36.49 cubic inches	36.49 cubic inches	36.49 cubic inches	36.49 cubic inches	36.61 cubic inches ↑	36.61 cubic inches	36.55 cubic inches ↓	36.55 cubic inches	36.55 cubic inches	36.55 cubic inches	36.55 cubic inches	36.55 cubic inches	36.55 cubic inches	36.55 cubic inches	36.55 cubic inches	36.55 cubic inches	-	36.55 cubic inches	36.55 cubic inches
Displacement (cc)	598.00 cc	598.00 cc	598.00 cc	598.00 cc	600.00 cc ↑	600.00 cc	599.00 cc ↓	599.00 cc	599.00 cc	599.00 cc	599.00 cc	599.00 cc	599.00 cc	599.00 cc	599.00 cc	599.00 cc	-	599.00 cc	599.00 cc
Brakes - Rear Diameter (mm)	-	-	-	-	-	-	-	-	-	-	-	220 mm	220 mm	220 mm	-	220 mm	240 mm ↑	240 mm	240 mm
Brakes - Rear Diameter (in.)	-	-	-	-	-	-	-	-	-	-	-	8.7 inches	8.7 inches	8.7 inches	-	8.7 inches	9.4 inches ↑	9.4 inches	9.4 inches
Bore x Stroke (mm)	63.0 x 48.0 mm	63.0 x 48.0 mm	63.0 x 48.0 mm	63.0 x 48.0 mm	65.0 x 45.2 mm ↑	65.0 x 45.2 mm	-	-	-	-	-	67.0 x 42.5 mm	67.0 x 42.5 mm	67.0 x 42.5 mm	67.0 x 42.5 mm	67.0 x 42.5 mm	-	67.0 x 0.0 mm	67.0 x 0.0 mm
Bore x Stroke (in,)	2.5 x 1.9 inches	2.5 x 1.9 inches	2.5 x 1.9 inches	2.5 x 1.9 inches	2.6 x 1.8 inches ↑	2.6 x 1.8 inches	-	-	-	-	-	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	-	2.6 x inches	2.6 x inches
Seat Height	-	-	-	-	-	-	810 mm / 31.9 in.	810 mm / 31.9 in.	810 mm / 31.9 in.	810 mm / 31.9 in.	810 mm / 31.9 in.	810 mm / 31.9 in.	810 mm / 31.9 in.	810 mm / 31.9 in.	805 mm / 31.7 in. ↓	805 mm / 31.7 in.	805 mm / 31.9 in	800 mm / 31.5 in. ↓	800 mm / 31.5 in.
Frame Type	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Mono-backbone; rectangular-section gravity die-cast aluminium	Aluminium, Backbone	Aluminium, backbone
Dry Weight	-	-	-	-	-	-	190 kg / 418.9 lbs	185 kg / 407.9 lbs ↓	185 kg / 407.9 lbs	185 kg / 407.9 lbs	186 kg / 410.1 lbs ↑	-	170 kg / 374.8 lbs	170 kg / 374.8 lbs	170 kg / 374.8 lbs	170 kg / 374.8 lbs	170 kg / 370 lbs	88 kg / 194.0 lbs ↓	-
Brakes - Front	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Dual disc	Double disc	Double disc	2x 296mm discs 2 piston caliper	Double disc. Optional ABS. Three-piston calipers, floating rotors and sintered metal pads	Double disc. ABS. Three-piston calipers, floating rotors and sintered metal pads
Wheelbase	-	-	-	-	-	-	-	-	-	-	-	1,395 mm / 54.9 in.	1,390 mm / 54.7 in.	1,390 mm / 54.7 in.	-	1,390 mm / 54.7 in.	1386 mm / 54.9 in ↑	1,285 mm / 50.6 in. ↓	-
Fuel Capacity	16.50 litres / 4.36 gallons	16.50 litres / 4.36 gallons	16.50 litres / 4.36 gallons	16.50 litres / 4.36 gallons	16.00 litres / 4.23 gallons ↓	16.00 litres / 4.23 gallons	16.00 litres / 4.23 gallons	16.00 litres / 4.23 gallons	-	-	-	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	18 Litres / 4.2 gal	19.00 litres / 5.02 gallons ↑	19.00 litres / 5.02 gallons
Brakes - Rear	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single 240mm disc 1 piston calipers	Single disc. Optional ABS. Single-piston caliper and sintered metal pads	Single disc. ABS. Single-piston caliper and sintered metal pads
Suspension - Front	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	43mm cartridge-type telescopic fork, 120mm axle travel	41mm inverted telescopic fork, ↓	41mm tension and preload adjustable inverted HMAS cartridge-type telescopic fork,	41mm tension and preload adjustable inverted HMAS cartridge-type telescopic fork,
Suspension - Rear	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Pro-Link with gas-charged remote reservoir damper, spring preload and compression and rebound damping, 120mm axle travel	Monoshock damper with 7-step adjustable preload, ↓	Monoshock damper with adjustable tension and preload,	Monoshock damper with adjustable tension and preload,
Top Speed	222.0 km/h / 137.9 mph	222.0 km/h / 137.9 mph	227.0 km/h / 141.1 mph ↑	227.0 km/h / 141.1 mph	230.0 km/h / 142.9 mph ↑	230.0 km/h / 142.9 mph	-	-	-	250.0 km/h / 155.3 mph	250.0 km/h / 155.3 mph	255.0 km/h / 158.4 mph ↑	250.0 km/h / 155.3 mph ↓	-	-	-	222.8 km/h	-	-
Fuel System	-	-	-	-	-	-	-	-	-	-	-	-	Injection	Injection	-	Injection. Electronic fuel injection	Injection	Injection. PGM-FI	Injection. PGM-FI
Colours	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Black/yellow	Red/white, blue/white, silver/black	Red/white, blue/white, silver/black
Clutch	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Wet, multiplate with coil springs	Wet, multiple discs. Mechanical, cable-actuated.	Wet, multiple discs. Mechanical, cable-actuated.
Height	-	-	-	-	-	-	-	-	-	-	-	-	-	1,135 mm / 44.7 in.	-	-	1135 mm / 44.6 in	1,150 mm / 45.3 in. ↓	1,150 mm / 45.3 in.
Length	-	-	-	-	-	-	-	-	-	-	-	-	-	2,065 mm / 81.3 in.	2,065 mm / 81.3 in.	2,065 mm / 81.3 in.	2060 mm / 81.1 in ↑	2,150 mm / 84.6 in. ↓	2,150 mm / 84.6 in.
Wet Weight	201.0 kg / 443.1 lbs	201.0 kg / 443.1 lbs	209.0 kg / 460.8 lbs ↑	209.0 kg / 460.8 lbs	208.0 kg / 458.6 lbs ↓	208.0 kg / 458.6 lbs	-	-	-	-	-	199.0 kg / 438.7 lbs	-	-	-	-	193 kg / 425.5 lbs	198.0 kg / 436.5 lbs ↑	199.0 kg / 438.7 lbs ↑
Compression Ratio	11.0:1	11.0:1	11.3:1 ↑	11.3:1	11.6:1 ↑	11.6:1	-	-	-	-	-	12.0:1	-	12.0:1	-	12.0:1	12.0:1	12.0:1	12.0:1
Tyres - Front	110/80-17	110/80-17	110/80-17	110/80-17	120/60-17 ↑	120/60-17	-	-	-	-	-	120/70-ZR17	120/70-ZR17	120/70-ZR17 58W	120/70-17	-	120/70ZR17	120/70-ZR17	120/70-ZR17
Width	-	-	-	-	-	-	-	-	-	-	-	-	-	685 mm / 27.0 in.	685 mm / 27.0 in.	-	685 mm / 26.9 in	740 mm / 29.1 in. ↑	740 mm / 29.1 in.
Tyres - Rear	130/80-17	130/80-17	130/80-17	130/80-17	160/60-17 ↑	160/60-17	-	-	-	-	-	180/55-ZR17	180/55-ZR17	180/55-ZR17 73W	80/55-17 ↓	-	180/55ZR17	180/55-ZR17	180/55-ZR17
Rake	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	24°	25.0° ↑	25.0°
Fuel Consumption	-	-	-	-	-	-	-	-	-	-	-	0.62 litres/100 km (161.3 km/l or 379.39 mpg)	-	-	-	-	19.8 km/it	-	-
Fuel Reserve	-	-	-	-	-	-	3.00 litres / 0.79 gallons	3.00 litres / 0.79 gallons	-	-	-	-	-	3.00 litres / 0.79 gallons	-	-	4.00 litres / 1.06 gallons	4.00 litres / 1.06 gallons	4.00 litres / 1.06 gallons
Trail	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	96.5 mm / 3.8 in	99 mm / 3.9 in. ↑	99 mm / 3.9 in.
Wheel Travel - Front	-	-	-	-	-	-	-	-	-	-	-	120 mm / 4.7 in.	120 mm / 4.7 in.	120 mm / 4.7 in.	-	-	120 mm / 4.7 in	120 mm / 4.7 in.	120 mm / 4.7 in.
Wheel Travel - Rear	-	-	-	-	-	-	-	-	-	-	-	120 mm / 4.7 in.	120 mm / 4.7 in.	120 mm / 4.7 in.	-	-	128 mm / 4.7 in	128 mm / 5.0 in.	128 mm / 5.0 in.
Ignition	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Computer-controlled digital transistorised with electronic advance and HISS	Computer-controlled digital transistorised with electronic advance	Computer-controlled digital transistorised with electronic advance	Computer-controlled digital transistorised with electronic advance
Max Torque	-	-	-	-	-	-	62.76	62.76	62.80 ↑	63.00 ↑	66.00 ↑	67.00 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 10500 ↑	65.00 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 10500 ↓	63.00 Nm (6.4 kgf-m or 46.5 ft.lbs) @ 10000 ↓	63.00 Nm (6.4 kgf-m or 46.5 ft.lbs) @ 1000	63.00	6.5 m-kg / 63.5 Nm @ 10500 rpm ↓	64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 10500 ↑	64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 10500 Revolutions
Power-to-Weight Ratio	-	-	-	-	-	-	0.5263 HP/kg	0.5405 HP/kg ↑	0.5405 HP/kg	0.5676 HP/kg ↑	0.5645 HP/kg	-	0.6412 HP/kg	0.6529 HP/kg ↑	0.6471 HP/kg	0.6353 HP/kg ↓	-	0.0472 HP/kg	-
Starter	-	-	-	-	-	-	-	-	Electric	Electric	Electric	Electric	Electric	-	-	Electric	Electric	Electric & kick	-
