Key Specifications
Engine
In-line four, four-stroke
Power
123.4 hp / 92 kW @ 10000 rpm
Torque
100 Nm / 73.8 lb-ft @ 8000 rpm
Top Speed
228.6 km/h / 142.0 mph
Weight
217 kg / 478.4 lbs
Fuel Capacity
17.00 litres
Advertisement

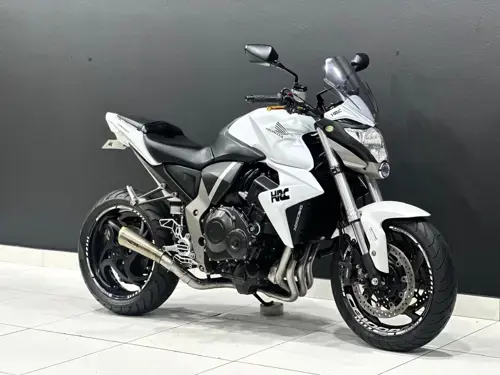

Full 2010 Honda CB 1000R Specifications
Year
2010
Colours
Pearl Siena Red/Pearl Nightstar Black,
Matt Vanguard Beige Metallic, Pearl Nightstar Black, Pearl Cool White
Make Model
Honda CB 1000R
Width (mm)
785 mm
Width (in.)
30.9 inches
Seat Height (mm)
825 mm
Seat Height (in.)
32.5 inches
Length (mm)
2,105 mm
Length (in.)
82.9 inches
Height (mm)
1,095 mm
Height (in.)
43.1 inches
Seat Height
828 mm / 32.6 in
Wheelbase
1445 mm / 56.8 in
Ground Clearance
130 mm / 5.1 in
Wet Weight (kg)
217
Oil Capacity (Quarts)
0.24 quarts
Oil Capacity (l)
3.60 litres
Fuel Capacity (l)
17.00 litres
Fuel Capacity (gal.)
4.49 gallons
Fuel Capacity
17 Litres / 4.5 US gal
Wet Weight
217 kg / 478.4 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
DOHC
Engine Type
In-line four, four-stroke
Displacement (ci)
60.90 cubic inches
Displacement (cc)
998.00 cc
Bore x Stroke (mm)
75.0 x 56.5 mm
Bore x Stroke (in,)
3.0 x 2.2 inches
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Fuel System
Injection. PGM-FI electronic fuel injection
Bore x Stroke
75 x 56.5 mm
Compression Ratio
11.2:1
Cooling System
Liquid cooled
Fuel Consumption
18.3 km/lit
Fuel Induction
PGM-F1 Electronic fuel injection36mm throttle bodies
Ignition
Computer controlled digital transistorized
Lubrication
Wet sump
Starter
Electric
Valve System
4
Battery Capacity
12V/8.6AH
Clutch
Wet, multiplate with coil springs.
Final Drive
#530 O-ring sealed chain
Gear Ratios
1: 2.538 (33/13) / - 2: 1.941 (33/17) / - 3: 1.579 (30/19) / - 4: 1.363 (30/22) / - 5: 1.217 (28/23) / - 6: 1.115 (29/26)
Gearbox
6-speed
Transmission / Drive
6 Speed
Trail (in.)
3.9 inches
Trail (mm)
99 mm
Frame Type
Mono-back born coast aluminous
Suspension - Front
43mm Inverted HMAS cartridge type telescopic forks, with stepless reload, compression and rebound adjustable
Suspension - Rear
Monoshock with gas charged HMAS damper rebound adjustable
Rake
25.0°
Trail
99.0mm / 3.9 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
128 mm / 5.0 in
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front
2x 310mm discs 3 piston calipers
Brakes - Rear
Single 256mm disc 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
180/50 ZR17
Wheels - Front
Hollow-section 4-spoke cast aluminium
Wheels - Rear
U-section 4-spoke cast aluminium
