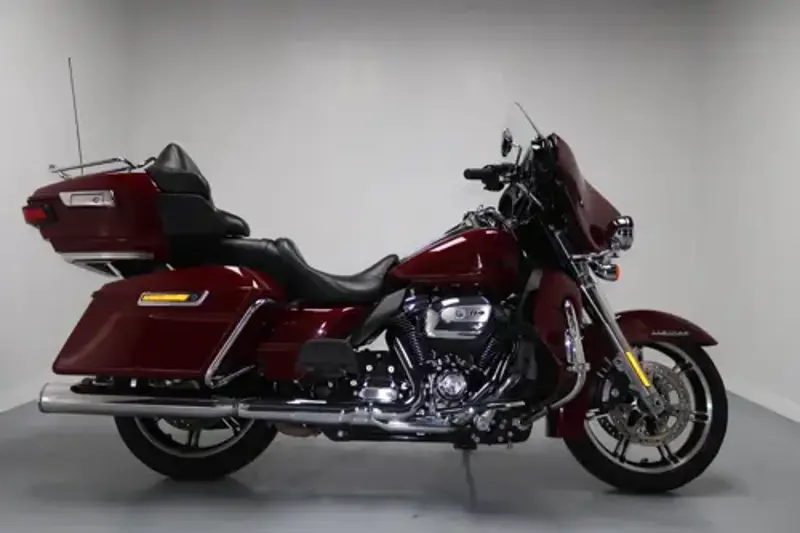

2020 Harley-Davidson Ultra Limited Specifications

Name: 2020 Harley-Davidson Ultra Limited
Brand: Harley-Davidson

Custom / cruiser • Specs last verified 13 July 2026

No images available

Tap to enlarge

2020 Harley-Davidson Ultra Limited Overview

Harley-Davidson Ultra Limited is a custom / cruiser motorcycle, displacing 1868 cc. Power comes from a Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder engine, a compression ratio of 10.5:1. On the performance side, it delivers 167 Nm @ 3250 rpm of torque. On the road, the 2020 Ultra Limited tips the scales at 413 kg, carries a 22.7-litre fuel tank, offers a seat height of Laden 698.5 mm and spans a 1625 mm wheelbase. That's roughly 132.1 kg heavier than the average custom / cruiser motorcycle in our database. The full 2020 Harley-Davidson Ultra Limited spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2020 Harley-Davidson Ultra Limited compared with other bikes in the Custom / cruiser category

We checked the recorded figures for the 2020 Harley-Davidson Ultra Limited against up to 1569 bikes in the Custom / cruiser category in our database, counting each model once at the model year nearest to this one.

Only 18 of the other 1004 bikes in the Custom / cruiser category have a heavier wet weight than the 413 kg of the Ultra Limited.
With 1868 cc, the Ultra Limited has the joint 75th largest engine displacement of 1569 bikes in the Custom / cruiser category, 61% above the category average of 1160 cc.
Torque of 167 Nm is higher than that of 981 of the other 1052 bikes in the Custom / cruiser category.
Narrowing the field to the 426 models within five model years of it, the wet weight of 413 kg is heavier than that of 414 of the other 425.

Versus the 2018 model

Compared with the 2018 model, peak torque increased from 154 Nm to 167 Nm (+13 Nm), displacement rose from 1746 cc to 1868 cc (+122 cc) and seat height was lowered from 740 mm to 699 mm (-41 mm). Wet weight is unchanged.

2020 Ultra Limited - Pros & Cons

Strengths

Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
Strong front braking: Stopping power up front is strong thanks to the disc setup, with plenty of room to upgrade further with braided lines.
Accessible seat height: A Laden 698.5 mm seat height keeps this manageable for most riders, which helps confidence at parking-lot speeds.
Large fuel range: A 22.7-litre tank means fewer stops on longer rides - a genuine plus for touring or a lengthy daily commute.
Low-maintenance final drive: Running a belt final drive cuts out the regular chain cleaning and tensioning that most bikes need.

Considerations

Age-related wear: Nothing specific stands out as a weak point on the Ultra Limited - the usual used-bike checks (service history, consumables, tyres) apply.

Wear Points & Servicing Notes

Heat management in traffic

Because the Ultra Limited relies on airflow rather than a coolant jacket, expect noticeably more radiant heat at low speed and in traffic. It's inherent to air cooling, and ventilated gear largely offsets it.

Fuelling & injector care

The Electronic Sequential Port Fuel Injection (ESPFI) on the Ultra Limited needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Brake disc and pad wear

Braking up front comes from 2 x 300mm discs, 4 piston fixed - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The Ultra Limited's suspension runs 41.3 mm telescopic, cartridge-style damping at the front. The rear uses Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The Ultra Limited runs belt final drive: no lubrication or frequent adjustment like a chain, though belt tension and wear are worth a periodic look.

Frame & chassis check

Built around a Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded, the Ultra Limited's chassis is straightforward to inspect: look for corrosion, cracks or repair welds around stress points like the head-stock and swingarm mounts.

Handling the weight at a standstill

413 kg puts the Ultra Limited toward the heavier end of its class. It's most noticeable at walking pace; once underway the mass settles into the handling rather than fighting it.

Ultra Limited - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2020 Harley-Davidson Ultra Limited with its 1868 cc custom / cruiser, cover the fundamentals: service book and oil change history, drivetrain wear, and any sign of oil weeping around the casings. This model runs belt final drive, so check belt tension and tooth wear - a cracked or glazed belt is a clear sign of neglect. Now 6 years old, this custom / cruiser is as likely to show age-related wear (perished rubber, seized fasteners, degraded seals) as mileage-related wear. Cold-starting it yourself tells you a lot - a healthy Ultra Limited should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects the Ultra Limited's 1868 cc four stroke, v-twin, milwaukee-eight 114, pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). With a 10.5:1 compression ratio, running the octane grade specified in the manual matters more than on a lower-compression engine. Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the Ultra Limited needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

2020 Harley-Davidson Ultra Limited - Frequently Asked Questions

What engine does the 2020 Harley-Davidson Ultra Limited have?

The 2020 Harley-Davidson Ultra Limited uses a Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder engine with 1868 cc of displacement. It is air cooled.

How much does the 2020 Harley-Davidson Ultra Limited weigh?

The 2020 Harley-Davidson Ultra Limited weighs 413 kg. This is the manufacturer's wet figure.

How much torque does the 2020 Harley-Davidson Ultra Limited produce?

The 2020 Harley-Davidson Ultra Limited produces 167 Nm @ 3250 rpm of torque.

What is the fuel tank capacity of the 2020 Harley-Davidson Ultra Limited?

The 2020 Harley-Davidson Ultra Limited has a 22.7-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 378-453 km between stops.

Is the 2020 Harley-Davidson Ultra Limited suitable for shorter riders?

The 2020 Harley-Davidson Ultra Limited has a seat height of Laden 698.5 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2020 Harley-Davidson Ultra Limited have?

The 2020 Harley-Davidson Ultra Limited uses 2 x 300mm discs, 4 piston fixed at the front and single 300 mm disc, 4 piston fixed at the rear.

What tyre sizes does the 2020 Harley-Davidson Ultra Limited use?

The 2020 Harley-Davidson Ultra Limited runs BW 130/80B17 65H front and BW 180/65B16 81H rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2020 Harley-Davidson Ultra Limited have?

The 2020 Harley-Davidson Ultra Limited is fitted with a 6 Speed transmission.

Harley-Davidson Ultra Limited Spec Evolution

The Harley-Davidson Ultra Limited was produced across 4 model years (2016-2021). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2016	2018	2020	2021
Wet Weight	414 kg / 896 lbs	413 kg / 910 lbs	413 kg / 910 lb	413 kg / 910 lb
Engine Detail	Four stroke, Twin Cam 103° with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder	Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder	Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Seat Height	Laden 695 mm / 27.3 in Unladen 740 mm / 29.1 in	Unladen 740 mm / 29.1 in Laden 698 mm / 27.5 in	Laden 698.5 mm / 27.5 in Unladen 739.1 mm / 29.1 in	Laden 698.5 mm / 27.5 in Unladen 739.1 mm / 29.1 in
Fuel Capacity	22.7 Litres / 6.0 US gal	22.7 Litres / 6 US gal	22.7 Litres / 6 US gal	22.7 Litres / 6 US gal
Displacement	1690 cc / 103.1 cub in.	1746 cc / 107 cub in	1868 cc / 114 cu in	1868 cc / 114 cu in
Wheelbase	1625 mm / 64 in.	1625 mm / 64 in	1625 mm / 64 in	1625 mm / 64 in
Brakes - Front	2x 300mm disc 4 piston caliper ABS	2 x 300mm discs, 4 piston caliper ABS	2 x 300mm discs, 4 piston fixed	2 x 300mm discs, 4 piston fixed
Ground Clearance	-	116.8 mm / 4.6 in	135 mm / 5.3 in	135 mm / 5.3 in

Key Specifications

Engine

Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Power

Not recorded

Torque

167 Nm / 122 lb-ft @ 3250 rpm

Top Speed

Not recorded

Weight

413 kg / 910 lb

Fuel Capacity

22.7 Litres / 6 US gal

Full 2020 Harley-Davidson Ultra Limited Specifications

Year 2019 - 20

Make Model Harley Davidson Ultra Limited

Seat Height Laden 698.5 mm / 27.5 in Unladen 739.1 mm / 29.1 in

Wheelbase 1625 mm / 64 in

Ground Clearance 135 mm / 5.3 in

Length 2600 mm / 102.3 in

Dry Weight 398 kg / 877 lbs

Fuel Capacity 22.7 Litres / 6 US gal

Wet Weight 413 kg / 910 lb

Max Torque 167 Nm / 122 lb-ft @ 3250 rpm

Displacement 1868 cc / 114 cu in

Engine Detail Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Bore x Stroke 102 x 114 mm

Compression Ratio 10.5:1

Cooling System Air cooled

Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Fuel Induction Electronic Sequential Port Fuel Injection (ESPFI)

Ignition Single-fire, non-wasted, map-controlled spark ignition

Lubrication Pressurized, dry-sump with oil cooler

Starter Electric

Clutch Multi-plate, wet

Final Drive Belt

Gear Ratios 1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875

Primary Drive Chain, 34/46 ratio

Transmission / Drive 6 Speed

Frame Type Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded

Suspension - Front 41.3 mm telescopic, cartridge-style damping

Suspension - Rear Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable

Lean Angle 32°

Rake 26°

Trail 170 mm / 6.7 in

Brakes - Front 2 x 300mm discs, 4 piston fixed

Brakes - Rear Single 300 mm disc, 4 piston fixed

Tyres - Front BW 130/80B17 65H

Tyres - Rear BW 180/65B16 81H

Wheels - Front Contrast Chrome Impeller Cast Aluminum

Wheels - Rear Contrast Chrome Impeller Cast Aluminum

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
