Key Specifications
Torque
71.00 Nm (7.2 kgf-m or 52.4 ft.lbs) @ 3750 Revolutions
Weight
256.0 kg / 564.4 lbs
Fuel Capacity
12.50 litres / 3.30 gallons
Advertisement

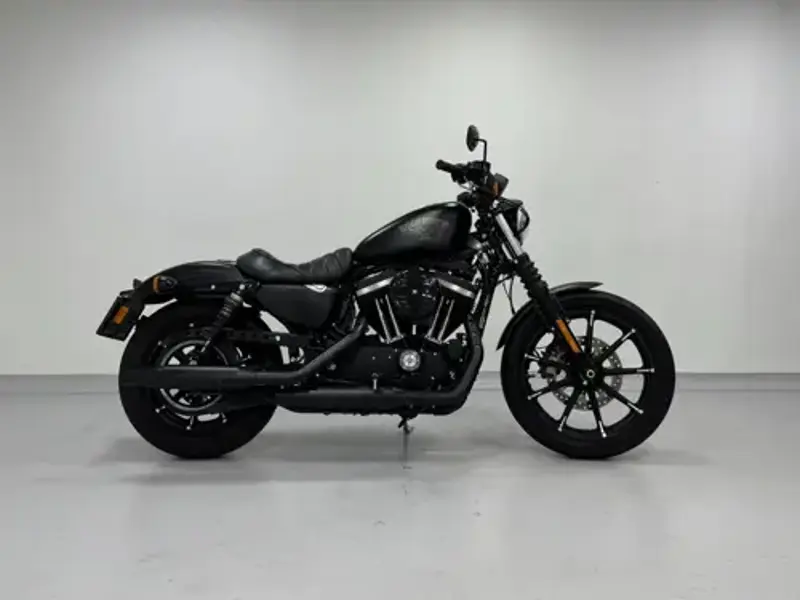

Full 2017 Harley-Davidson Sportster Iron 883 Specifications
Colours
Hard Candy Hot Rod Red Flake, Charcoal Denim, Black Denim, Olive gold, Red Iron Denim
Ground Clearance (mm)
100 mm
Ground Clearance (in.)
3.9 inches
Seat Height
653 mm / 25.7 in.
Wheelbase
1,515 mm / 59.6 in.
Length
2,179 mm / 85.8 in.
Oil Capacity (Quarts)
0.17 quarts
Oil Capacity (l)
2.60 litres
Dry Weight
247 kg / 544.5 lbs
Fuel Capacity
12.50 litres / 3.30 gallons
Wet Weight
256.0 kg / 564.4 lbs
Engine Type
V2, four-stroke
CO2
107.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
76.2 x 96.8 mm
Bore x Stroke (in,)
3.0 x 3.8 inches
Engine Detail
Air-cooled, Evolution®
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio
9.0:1
Engine Lubrication
Dry sump
Exhaust
Black, staggered shorty exhaust with dual mufflers
Fuel Consumption
4.61 litres/100 km (21.7 km/l or 51.02 mpg)
Starter
Electric
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt
Gearbox
6-speed
Suspension - Front
Telescopic fork
Suspension - Rear
Twin shocks.
Rake
26.0°
Trail
117 mm / 4.6 in.
Instrumentation
Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Lighting system
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
Brakes - Front Diameter (in.)
11.8 inches
Brakes - Front Diameter (mm)
300 mm
Brakes - Rear Diameter (in.)
11.8 inches
Brakes - Rear Diameter (mm)
300 mm
Brakes - Front
Single disc. Optional ABS, dual piston
Brakes - Rear
Single disc. Optional ABS, dual piston
Rims
Black 9 Spoke with Machined Highlights
Tyres - Front
100/90-B19
Tyres - Rear
150/80-B16
