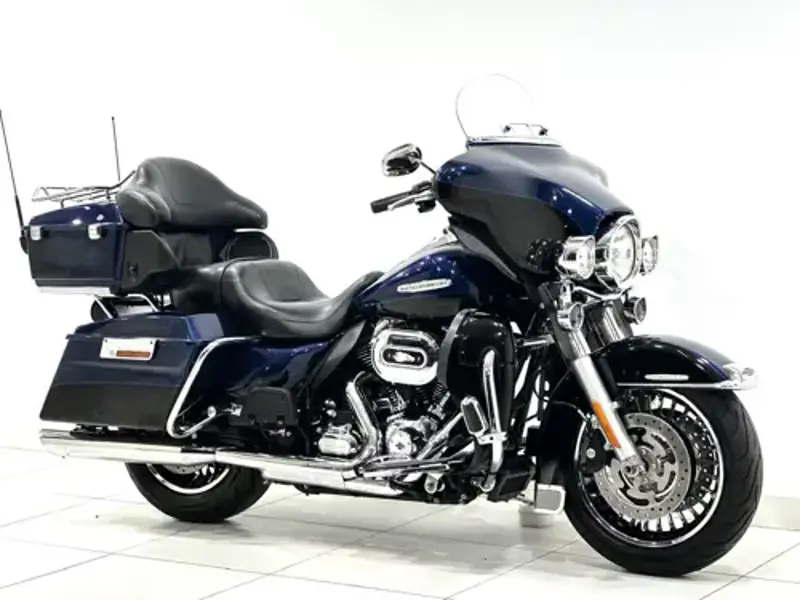

2013 Harley-Davidson Electra Glide Ultra Limited Specifications

Name: 2013 Harley-Davidson Electra Glide Ultra Limited
Brand: Harley-Davidson

Touring • Specs last verified 13 July 2026

No images available

Tap to enlarge

2013 Harley-Davidson Electra Glide Ultra Limited Overview

Harley-Davidson Electra Glide Ultra Limited is a touring motorcycle, displacing 1687.97 cc. Power comes from a V2, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 9.6:1. Bore and stroke come in at 98.4 x 111.3 mm. On the performance side, it delivers 135.60 Nm @ 3250 of torque. Top speed is factory-quoted at 45 km/h. On the road, the 2013 Electra Glide Ultra Limited tips the scales at 413.2 kg, carries a 22.71-litre fuel tank, offers a seat height of 693 mm and spans a 1,613 mm wheelbase. That's roughly 89.1 kg heavier than the average touring motorcycle in our database. The full 2013 Harley-Davidson Electra Glide Ultra Limited spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2013 Electra Glide Ultra Limited - Pros & Cons

Strengths

Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
Accessible seat height: A 693 mm seat height keeps this manageable for most riders, which helps confidence at parking-lot speeds.
Large fuel range: A 22.71-litre tank means fewer stops on longer rides - a genuine plus for touring or a lengthy daily commute.
Low-maintenance final drive: Running Belt final drive cuts out the regular chain cleaning and tensioning that most bikes need.

Considerations

Age-related wear: Nothing specific stands out as a weak point on the Electra Glide Ultra Limited - the usual used-bike checks (service history, consumables, tyres) apply.

Wear Points & Servicing Notes

Fuelling & injector care

The fuel injection on the Electra Glide Ultra Limited needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Valve clearance checks

With Double Overhead Cams/Twin Cam (DOHC) valve gear, the Electra Glide Ultra Limited needs periodic clearance checks; caught early they're a cheap adjustment, left unchecked they accelerate valve seat wear.

Brake disc and pad wear

Braking up front comes from Double disc. 4-piston - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The Electra Glide Ultra Limited's suspension runs Independent coil springs and hydraulic dampers at the front. The rear uses Independent coil springs and hydraulic dampers. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The Electra Glide Ultra Limited runs belt final drive: no lubrication or frequent adjustment like a chain, though belt tension and wear are worth a periodic look.

Handling the weight at a standstill

413.2 kg puts the Electra Glide Ultra Limited toward the heavier end of its class. It's most noticeable at walking pace; once underway the mass settles into the handling rather than fighting it.

Electra Glide Ultra Limited - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2013 Harley-Davidson Electra Glide Ultra Limited, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy Electra Glide Ultra Limited should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects a Electra Glide Ultra Limited's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). The sump holds 3.80 litres, so budget for that volume of quality motorcycle-specific engine oil. Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the Electra Glide Ultra Limited needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

Valve clearance service

Valve clearances are easy to overlook on a used Electra Glide Ultra Limited since a bike out of spec doesn't always feel obviously wrong - but the wear it causes is real. Ask the seller for documentation before assuming it's been done.

2013 Harley-Davidson Electra Glide Ultra Limited - Frequently Asked Questions

What engine does the 2013 Harley-Davidson Electra Glide Ultra Limited have?

The 2013 Harley-Davidson Electra Glide Ultra Limited uses a V2, four-stroke engine with 1687.97 cc of displacement.

What is the top speed of the 2013 Harley-Davidson Electra Glide Ultra Limited?

The 2013 Harley-Davidson Electra Glide Ultra Limited has a factory-quoted top speed of 45 km/h. Real-world speeds vary depending on rider weight, conditions and state of tune.

How much does the 2013 Harley-Davidson Electra Glide Ultra Limited weigh?

The 2013 Harley-Davidson Electra Glide Ultra Limited weighs 413.2 kg. This is the manufacturer's wet figure.

How much power does the 2013 Harley-Davidson Electra Glide Ultra Limited make?

The 2013 Harley-Davidson Electra Glide Ultra Limited produces 135.60 Nm @ 3250 of torque.

What is the fuel tank capacity of the 2013 Harley-Davidson Electra Glide Ultra Limited?

The 2013 Harley-Davidson Electra Glide Ultra Limited has a 22.71-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 378-454 km between stops.

Is the 2013 Harley-Davidson Electra Glide Ultra Limited suitable for shorter riders?

The 2013 Harley-Davidson Electra Glide Ultra Limited has a seat height of 693 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2013 Harley-Davidson Electra Glide Ultra Limited have?

The 2013 Harley-Davidson Electra Glide Ultra Limited uses Double disc. 4-piston at the front and Single disc. 2-piston at the rear.

What tyre sizes does the 2013 Harley-Davidson Electra Glide Ultra Limited use?

The 2013 Harley-Davidson Electra Glide Ultra Limited runs 130/80-17 front and 180/65-16 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

How much oil does the 2013 Harley-Davidson Electra Glide Ultra Limited take?

The 2013 Harley-Davidson Electra Glide Ultra Limited takes 3.80 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Harley-Davidson Electra Glide Ultra Limited Spec Evolution

The Harley-Davidson Electra Glide Ultra Limited was produced across 2 model years (2013-2015). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2013	2015
Seat Height	693 mm / 27.3 in.	740 mm / 29.1 in.
CO2	129.9 CO	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Ground Clearance (in.)	5.1 inches	5.3 inches
Ground Clearance (mm)	130 mm	135 mm
Brakes - Front	Double disc. 4-piston	Double disc. ABS. 4-piston
Wheelbase	1,613 mm / 63.5 in.	1,625 mm / 64.0 in.
Brakes - Rear	Single disc. 2-piston	Single disc. ABS. 2-piston
Colours	Anniversary Vintage Bronze/Anniversary Vintage Black, Chrome Yellow Pearl/Vivid Black with HD Orange Pinstripes, Midnight Pearl/Brilliant Silver Pearl with Dark Blue Pinstripes, Ember Red Sunglo/Merlot with Medium Red Pinstripes, Big Blue	Deep Jade Pearl, Brilliant Silver Pearl/Vivid Black, Mysterious Red Sunglo/Blackened Cayenne Sunglo, Vivid Black, Amber Whiskey/vivid Black, Radioactive Green, Superior Blue

Key Specifications

Engine

V2, four-stroke

Power

Not published by manufacturer

Torque

135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250

Top Speed

45.0 km/h / 28.0 mph

Weight

413.2 kg / 911.0 lbs

Fuel Capacity

22.71 litres / 6.00 gallons

Full 2013 Harley-Davidson Electra Glide Ultra Limited Specifications

Comments Windshield.

Colours Anniversary Vintage Bronze/Anniversary Vintage Black, Chrome Yellow Pearl/Vivid Black with HD Orange Pinstripes, Midnight Pearl/Brilliant Silver Pearl with Dark Blue Pinstripes, Ember Red Sunglo/Merlot with Medium Red Pinstripes, Big Blue

Storage Saddle bags, top box

Ground Clearance (mm) 130 mm

Ground Clearance (in.) 5.1 inches

Seat Height 693 mm / 27.3 in.

Wheelbase 1,613 mm / 63.5 in.

Height 1,400 mm / 55.1 in.

Length 2,504 mm / 98.6 in.

Width 1,600 mm / 63.0 in.

Oil Capacity (Quarts) 0.25 quarts

Oil Capacity (l) 3.80 litres

Dry Weight 400.1 kg / 882.0 lbs

Fuel Capacity 22.71 litres / 6.00 gallons

Wet Weight 413.2 kg / 911.0 lbs

Top Speed 45.0 km/h / 28.0 mph

Max Torque 135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Engine Type V2, four-stroke

Displacement (ci) 103.00 cubic inches

Displacement (cc) 1687.97 cc

Bore x Stroke (in,) 3.9 x 4.4 inches

Bore x Stroke (mm) 98.4 x 111.3 mm

CO2 129.9 CO

Engine Detail Air-cooled Twin Cam 103? with Integrated Oil-Cooler

Fuel System Injection. Electronic Sequential Port Fuel Injection

Compression Ratio 9.6:1

Engine Lubrication Dry sump

Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Fuel Consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Starter Electric

Valve System 4

Clutch Multi-plate with diaphragm spring in oil bath

Final Drive Belt

Gearbox 6-speed

Primary Drive Chain, 34/46 ratio primary drive

Suspension - Front Independent coil springs and hydraulic dampers

Suspension - Rear Independent coil springs and hydraulic dampers

Rake 26.0°

Trail 170 mm / 6.7 in.

Instrumentation Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6

Lighting system High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory,?security system, 6-speed, low fuel warning, ABS

Brakes - Front Double disc. 4-piston

Brakes - Rear Single disc. 2-piston

Rims Black and Chrome, 28-spoke Cast Aluminum

Tyres - Front 130/80-17

Tyres - Rear 180/65-16

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
