Key Specifications
Engine
Four stroke, V-Twin, Twin Cam 103° with integrated oil cooler
Torque
134 Nm / 98.8 ft/ lbs @ 3500 rpm
Fuel Capacity
18.9 Litres / 5.0 US gal
Advertisement

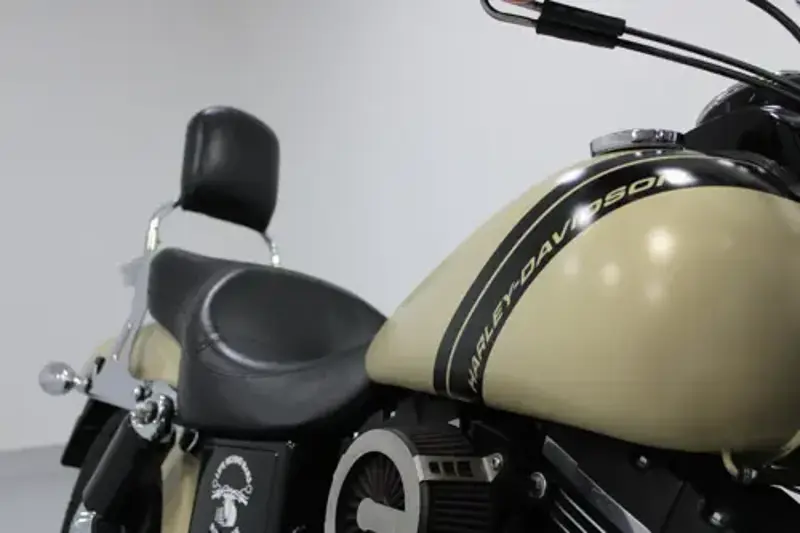

Full 2015 Harley-Davidson Dyna Fat Bob Specifications
Year
2014 - 15
Make Model
Harley Davidson Dyna Fat Bob
Seat Height
Laden 663 mm / 26.1 in Unladen 686 mm / 27.0 in
Wheelbase
1618 mm / 63.7 in.
Height
1130 mm / 44.5 in.
Length
2329 mm / 91.7 in
Width
889 mm / 35.0 in
Fuel Capacity
18.9 Litres / 5.0 US gal
Maximum Load / GVWR
492 kg / 1085 lbs
Oil Capacity
2.8 Litres / 3.0 qts
Wet Weight
320 kg / 706 lbs
Displacement
1690 cc / 103 cu. in
Engine Detail
Four stroke, V-Twin, Twin Cam 103° with integrated oil cooler
Bore x Stroke
98.4 x 111.3 mm
Compression Ratio
9.6:1
Cooling System
Air cooled
Fuel Induction
Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Single-fire, non-wasted, map-controlled spark ignition
Starter
Electric
Clutch
Multi-plate, wet
Final Drive
Belt
Gear Ratios
1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Transmission / Drive
6 Speed
Frame Type
Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Suspension - Front
49 mm with polished aluminum fork triple clamp and dual-rate springs,
Suspension - Rear
Coil over shock
Rake
29°
Trail
125 mm / 4.9 in
Wheel Travel - Front
127 mm / 4.9 in
Wheel Travel - Rear
54 mm / 2.1 in
Brakes - Front
Single 300mm disc 4 piston caliper
Brakes - Rear
Single 292mm disc 2 piston caliper
Tyres - Front
130/90B16 67
Tyres - Rear
180/70B16 77H
