2019 Harley-Davidson CVO Street Glide Specifications

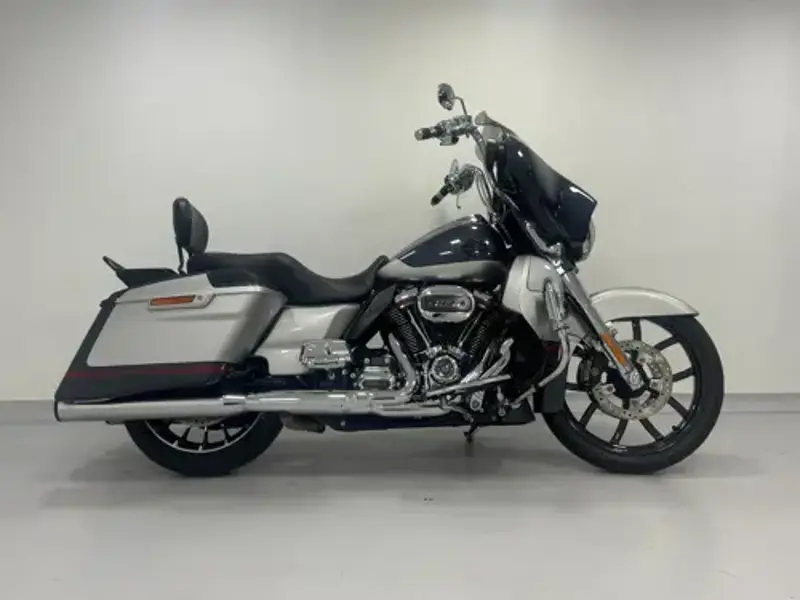

Name: 2019 Harley-Davidson CVO Street Glide
Brand: Harley-Davidson

Custom / cruiser • Specs last verified 13 July 2026

No images available

Tap to enlarge

2019 Harley-Davidson CVO Street Glide Overview

For 2019, Harley-Davidson offers the CVO Street Glide as a custom / cruiser motorcycle with 1923 cc on tap. The 2019 Harley-Davidson CVO Street Glide is built around a Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder engine, a compression ratio of 10.2:1. Out on the road, the CVO Street Glide delivers 169 Nm @ 3500 rpm of torque. In everyday use, the 2019 CVO Street Glide tips the scales at 398 kg, carries a 22.7-litre fuel tank, offers a seat height of 695 mm and spans a 1625 mm wheelbase. That's roughly 97.4 kg heavier than the average custom / cruiser motorcycle in our database. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2019 Harley-Davidson CVO Street Glide spec sheet below.

2019 CVO Street Glide - Pros & Cons

Strengths

Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
Accessible seat height: At just 695 mm, flat-footing at a stop is easy for most riders - a genuine confidence builder for less experienced owners.
Large fuel range: With a 22.7-litre tank, this isn't a bike you'll be stopping for fuel every hour - a real asset on longer trips.
Low-maintenance final drive: Belt final drive is about as close to maintenance-free as motorcycle drivetrains get.

Considerations

Age-related wear: No particular mechanical concern flags for the CVO Street Glide - condition on any used example comes down to how well it's been looked after.

Wear Points & Servicing Notes

Heat management in traffic

Air cooling on the CVO Street Glide keeps the mechanical layout simple, but heat management in slow traffic needs more attention than on a liquid-cooled bike - plan routes and gear accordingly in warmer conditions.

Fuelling & injector care

Fuelling on the CVO Street Glide comes from Electronic Sequential Port Fuel Injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.

Suspension condition on used examples

Suspension duties are handled by Showa dual bending valve front suspension up front and Emulsion rear suspension with hand-adjustable pre-load at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.

Final drive maintenance

Belt final drive keeps day-to-day maintenance minimal on the CVO Street Glide - just periodic tension and wear checks rather than the regular cleaning a chain demands.

Frame & chassis check

The Mild steel, square-section backbone with twin downtubes chassis holds up well with normal use; on a used bike it's still worth checking the head-stock and swingarm pivot area for impact damage or corrosion.

Handling the weight at a standstill

The CVO Street Glide's 398 kg kerb weight is worth factoring into how you handle it at a standstill - parking-lot manoeuvres need a bit more deliberate technique than on a lighter machine.

CVO Street Glide - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 2019 Harley-Davidson CVO Street Glide should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept CVO Street Glide settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a CVO Street Glide's engine - keep to the manufacturer's interval rather than stretching it. Use the viscosity grade the manual specifies, not whatever's on sale.

Fuel system care

Injector systems like the CVO Street Glide's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.

2019 Harley-Davidson CVO Street Glide - Frequently Asked Questions

What engine does the 2019 Harley-Davidson CVO Street Glide have?

The 2019 Harley-Davidson CVO Street Glide uses a Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder engine with 1923 cc of displacement. It is air cooled.

How much does the 2019 Harley-Davidson CVO Street Glide weigh?

The 2019 Harley-Davidson CVO Street Glide weighs 398 kg. This is the manufacturer's wet figure.

How much power does the 2019 Harley-Davidson CVO Street Glide make?

The 2019 Harley-Davidson CVO Street Glide produces 169 Nm @ 3500 rpm of torque.

What is the fuel tank capacity of the 2019 Harley-Davidson CVO Street Glide?

The 2019 Harley-Davidson CVO Street Glide has a 22.7-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 378-453 km between stops.

Is the 2019 Harley-Davidson CVO Street Glide suitable for shorter riders?

The 2019 Harley-Davidson CVO Street Glide has a seat height of 695 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2019 Harley-Davidson CVO Street Glide have?

The 2019 Harley-Davidson CVO Street Glide uses Caliper Type 32 mm, 4-piston fixed at the front and Caliper Type 32 mm, 4-piston fixed at the rear.

What tyre sizes does the 2019 Harley-Davidson CVO Street Glide use?

The 2019 Harley-Davidson CVO Street Glide runs 130/60B19 61H front and 180/65B16 80H rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2019 Harley-Davidson CVO Street Glide have?

The 2019 Harley-Davidson CVO Street Glide is fitted with a 6 Speed transmission.

Harley-Davidson CVO Street Glide Spec Evolution

The Harley-Davidson CVO Street Glide was produced across 6 model years (2015-2021). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2015	2016	2017	2019	2020	2021
Wet Weight	386 kg / 852 lbs	386 kg / 870 lbs	398 kg / 867 lbs	398 kg / 877 lbs	393 kg / 866 lbs	393 kg / 866 lbs
Dry Weight	367 kg / 810 lbs	380 kg / 838 lbs	380 kg / 833 lbs	382 kg / 842 lbs	377 kg / 831 lbs	377 kg / 831 lbs
Engine Detail	Four stroke, Twin Cam 110° Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder	Four stroke, Twin Cam 110° Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder	Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Seat Height	Laden 668.0 mm / 26.3 in Unladen 693.4 mm / 27.3 in.	Unladen 690 mm / 27.2 in.	Unladen 690 mm / 27.2 in	695 mm / 27.1 in	695 mm / 27.1 in	695 mm / 27.1 in
Fuel Capacity	22.7 Litres / US 6.0 gal	22.7 Litres / US 6.0 gal	22.7 Litres / US 6.0 gal	22.7 Litres / 6.0 US gal	22.7 Litres / US 6.0 gal	22.7 Litres / US 6.0 gal
Displacement	1802 cc / 109.96 cub in.	1802 cc / 109.96 cub in.	1868 cc / 114 cub in.	1923 cc / 117 cu-in	1923 cc / 117 cu-in	1923 cc / 117 cu-in
Wheelbase	1625 mm / 63.5 in	1615 mm / 63.0 in	1625 mm / 64.0 in	1625 mm / 64.0 in	1625 mm / 64.0 in	1625 mm / 64.0 in
Brakes - Front	2 x 292 mm disc ,4 piston caliper	2 x 292 mm disc ,4 piston caliper	Caliper Type 32 mm, 4-piston fixed	Caliper Type 32 mm, 4-piston fixed	Caliper Type 32 mm, 4-piston fixed	Caliper Type 32 mm, 4-piston fixed

Key Specifications

Engine

Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Power

Not published by manufacturer

Torque

169 Nm / 124.6 lb-ft @ 3500 rpm

Top Speed

Not published by manufacturer

Weight

398 kg / 877 lbs

Fuel Capacity

22.7 Litres / 6.0 US gal

Full 2019 Harley-Davidson CVO Street Glide Specifications

Year 2019

Make Model Harley Davidson CVO Street Glide

Seat Height 695 mm / 27.1 in

Wheelbase 1625 mm / 64.0 in

Ground Clearance 130 mm / 5.1 in

Length 2435 mm / 95.9 in

Dry Weight 382 kg / 842 lbs

Fuel Capacity 22.7 Litres / 6.0 US gal

Wet Weight 398 kg / 877 lbs

Max Torque 169 Nm / 124.6 lb-ft @ 3500 rpm

Displacement 1923 cc / 117 cu-in

Engine Detail Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Bore x Stroke 103.5 X 114.3 mm

Compression Ratio 10.2:1

Cooling System Air cooled

Exhaust Dual, with crossover

Fuel Induction Electronic Sequential Port Fuel Injection

Ignition Single-fire, non-wasted, map-controlled spark ignition

Lubrication Pressurized, dry-sump with oil cooler

Starter Electric

Final Drive Belt

Gear Ratios 1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875

Primary Drive Chain, 34/46 ratio

Transmission / Drive 6 Speed

Frame Type Mild steel, square-section backbone with twin downtubes

Suspension - Front Showa dual bending valve front suspension

Suspension - Rear Emulsion rear suspension with hand-adjustable pre-load

Lean Angle 32°

Rake 26°

Trail 170 mm / 6.7 in

Brakes - Front Caliper Type 32 mm, 4-piston fixed

Brakes - Rear Caliper Type 32 mm, 4-piston fixed

Tyres - Front 130/60B19 61H

Tyres - Rear 180/65B16 80H

Wheels Texture Black and Contrast Black Anodize Talon or Gunship Gray and Contrast Black Anodize Talon

Wheels - Front Gloss Black and Contrast Chrome Talon

Wheels - Rear Gloss Black and Contrast Chrome Talon

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
