Key Specifications
Engine
Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder
Power
119.3 kW / 160 hp @ 9750 rpm
Torque
122.4 Nm / 12.5 kgf-m / 90.4 lb-ft @ 8000 rpm
Top Speed
273.5 km/h / 169.9 mph
Fuel Capacity
15.5 L / 4.1 US gal / 3.4 Imp gal
Advertisement

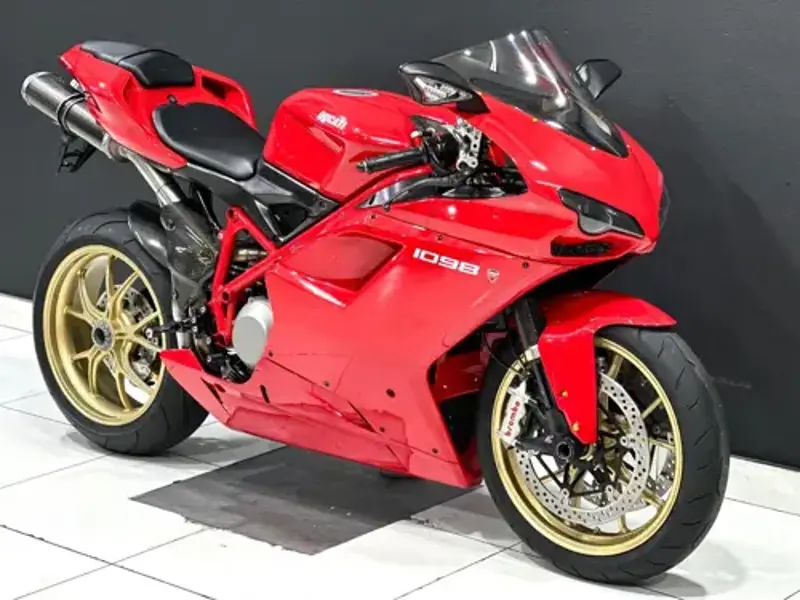

Full 2007 Ducati 1098 Specifications
Year
2007
Make Model
Ducati 1098
Seat Height
840 mm / 32.2 in
Wheelbase
1430 mm / 56.3 in
Height
1100 mm / 43.3 in
Length
2100 mm / 82.6 in
Dry Weight
173 kg / 381 lbs
Fuel Capacity
15.5 L / 4.1 US gal / 3.4 Imp gal
Displacement
1099 cc / 67.1 cu in
Engine Detail
Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder
Bore x Stroke
104 x 64.7 mm
Compression Ratio
12.5:1
Cooling System
Liquid cooled
Engine Oil Specification
Synthetic, 20W-50
Exhaust
Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers
Fuel Induction
Marelli electronic fuel injection, elliptical throttle bodies
Ignition
Digital CDI
Lubrication
Wet sump
Starter
Electric
Final Drive
Chain, front sprocket 15; rear sprocket 38
Gear Ratios
1st 37/15, 2nd 30/17, 3rd 28/20, 4th 26/22, 5th 24/23, 6th 23/24
Primary Drive
Straight cut gears, Ratio 1.84:1
Transmission / Drive
6 Speed
Frame Type
Tubular steel Trellis frame in ALS 450
Suspension - Front
Showa 43mm with TiO fully adjustable upside-down fork
Suspension - Rear
Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm
Rake
24.3° - 24.5°
Steering Angle
28.5° - 28.5°
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
127 mm / 5.1 in
Brakes - Front
2 x 330mm Discs, 4 piston calipers
Brakes - Rear
Single 245mm disc, 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
