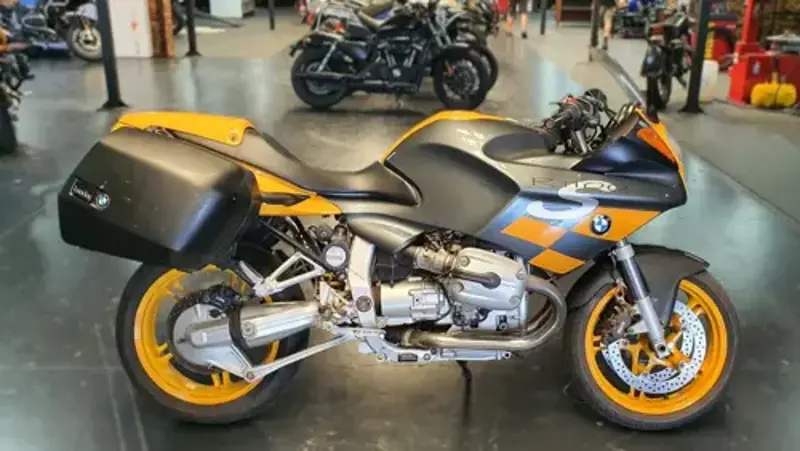

BMW R 1100S Specs
2001–2004 • 2 variants
The BMW R 1100S is a sport tourer produced from 2001 to 2004 across 2 variants. It is powered by a four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder displacing 1085.00 cc. Peak power output is 98 hp. Peak torque is 97 Nm.
About the BMW R 1100S
The R 1100S represents BMW's contribution to the Sport motorcycle segment, spanning the 1999 to 2006 production run. Our database contains detailed technical specifications for each model year, covering powertrain details, chassis geometry, suspension and braking systems, fuel capacity, and certified weight figures. Use the year navigation above to drill into year-specific data. All specifications are referenced from official BMW documentation.
BMW R 1100S by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2000
|
2002
|
2004
|
2006
|
|
Engine Type
|
Two cylinder boxer, four-stroke | Two cylinder boxer, four-stroke | Two cylinder boxer | Two cylinder boxer |
|
Brakes - Front Diameter (mm)
|
310 mm | 305 mm ↓ | 320 mm ↑ | 305 mm ↓ |
|
Brakes - Front Diameter (in.)
|
12.2 inches | 12.0 inches ↓ | 12.6 inches ↑ | 12.0 inches ↓ |
|
Fuel Control
|
- | - | OHC | SOHC |
|
Stroke
|
- | 70.5 mm | 70.5 mm | 4 ↓ |
|
Bore x Stroke (mm)
|
- | 70.0 x 99.0 mm | 99.0 x 70.5 mm ↑ | - |
|
Bore x Stroke (in,)
|
- | 2.8 x 3.9 inches | 3.9 x 2.8 inches ↑ | - |
|
Seat Height
|
800 mm / 31.4 in | 800 mm / 31.4 in | 800 mm / 31.4 in | 800 mm / 31.4 in |
|
Dry Weight
|
237 kg / 522.5 lbs | 229 kg / 505 lbs ↓ | 229 kg / 505 lbs | 229 kg / 505 lbs |
|
Brakes - Front
|
2 x 320mm discs, 4 piston calipers | 2 x 320mm discs, 4 piston calipers | 2 x 320mm discs, 4 piston calipers | 2 x 320mm discs, 4 piston calipers |
|
Wheelbase
|
1478 mm / 58.2 in | 1478 mm / 58.2 in | 1478 mm / 58.2 in | 1478 mm / 58.2 in |
|
Brakes - Rear
|
Single disc | Single 276mm disc, 2 piston caliper | Single 276mm disc, 2 piston caliper | Single 276mm disc, 2 piston caliper |
|
Fuel Capacity
|
18.00 litres / 4.76 gallons | 18 Litres / US 4.76 gal | 18 Litres / US 4.76 gal | 18 Litres / US 4.76 gal |
|
Top Speed
|
225.0 km/h / 139.8 mph | 218.7 km/h / 135.9 mph ↓ | 227 km/h / 141 mph ↑ | 227 km/h / 141 mph |
|
Fuel System
|
- | Injection | Injection | Injection. Electronic intake pipe injection/digital engine management: Bosch Motronic MA 2.4 with overrun fuel cut-off, twin spark ignition |
|
Colours
|
Yellow, black, red, two-toned silver/yellow for extra charge | - | Gray, Red, Gray/Mandarin, Blue | - |
|
Rims - Front
|
3.50 x 17" | 3.50 x 17" | 3.50 x 17" | 3.50 x 17" |
|
Rims - Rear
|
5.00 x 17" (special equipment: 5.50 x 17") | 5.00 x 17" (special equipment: 5.50 x 17") | 5.00 x 17" (special equipment: 5.50 x 17") | 5.00 x 17" (special equipment: 5.50 x 17") |
|
Max Torque
|
97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 5750 | 97 Nm / 9.9 kgf-m / 71.5 lb-ft.@ 5750 rpm | 97 Nm / 9.9 kgf-m / 71.5 lb-ft.@ 5750 rpm | 97 Nm / 9.9 kgf-m / 71.5 lb-ft.@ 5750 rpm |
|
Power-to-Weight Ratio
|
0.4135 HP/kg | 0.4279 HP/kg ↑ | 0.4279 HP/kg | 0.4642 HP/kg ↑ |
