Key Specifications
Engine
Two cylinder boxer
Power
67.1 kW / 90 hp @ 7250 rpm
Torque
95 Nm / 9.7 kgf-m / 69 lb-ft.@ 5500 rpm
Fuel Capacity
26.00 litres
Advertisement

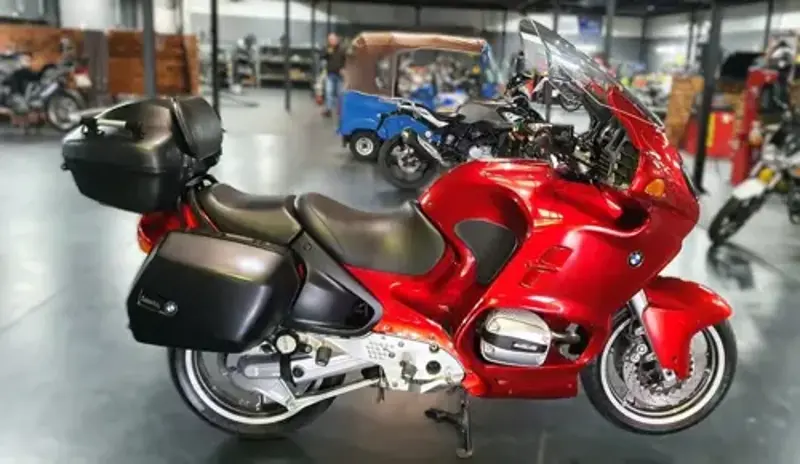

Full 2000 BMW R 1100RT Specifications
Year
1999 - 2000
Make Model
BMW R 1100RT
Seat Heigth -Alternate (mm)
820 mm
Seat Heigth -Alternate (in.)
32.3 inches
Seat Height (mm)
780 mm
Seat Height (in.)
30.7 inches
Wheelbase (mm)
1,485 mm
Wheelbase (in.)
58.5 inches
Seat Heigth -Alternate (mm)
820 mm
Seat Heigth -Alternate (in.)
32.3 inches
Seat Height (mm)
780 mm
Seat Height (in.)
30.7 inches
Seat Height
800 mm / 31.4 in. Optional adjustable: 780 mm / 30.7 in / 820 mm / 32.3 in
Wheelbase
1485 mm / 58.5 in
Ground Clearance
153 mm / 6.2 in
Height
1380 mm / 54.3 in
Length
2205 mm / 86.8 in
Width
900 mm / 35.4 in
Dry Weight (lbs.)
564.4 pounds
Dry Weight (kg)
256
Dry Weight (kg)
256
Wet Weight (lbs.)
639.3 pounds
Wet Weight (kg)
290.0 kg
Weight balance - Front
50.6
Fuel Capacity (l)
26.00 litres
Fuel Capacity (gal.)
6.87 gallons
Dry Weight
256 kg / 571 lbs
Fuel Capacity
23 Litres / US 6.1 gal
Wet Weight
282 kg / 622 lbs
Stroke
4
Bore x Stroke (in,)
3.9 x 2.8 inches
Bore x Stroke (mm)
99.0 x 70.5 mm
Engine Type
Two cylinder boxer
Displacement (ci)
66.21 cubic inches
Displacement (cc)
1085.00 cc
Displacement (ci)
66.21 cubic inches
Engine Type
Two cylinder boxer
Displacement (cc)
1085.00 cc
Stroke
4
Displacement
1085 cc / 66.2 cu in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Fuel System
Injection
Bore x Stroke
99 x 70.5 mm
Compression Ratio
10.7:1
Cooling System
Air/Oil cooled
Fuel Consumption
6.1 L/100 km / 16.3 km/l / 38.3 US mpg
Fuel Induction
Fuel injection
Ignition
Electronic ignition MA 2.2 Bosch Motronic
Lubrication
Wet sump
Spark Plug
Bosch, FR6 DDC
Starter
Electric
Valve System
4
Clutch
Dry, single plate
Final Drive
Shaft
Gear Ratios
1st 4.16 / 2nd 2.91 / 3rd 2.13 / 4th 1.74 / 5th 1.45:1
Gearbox
5-speed
Gearbox
5-speed
Transmission / Drive
5 Speed
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Rear (in.)
5.3 inches
Wheel Travel - Rear (mm)
135 mm
Frame Type
Steel, backbone frame
Suspension - Front
Telelever with central spring strut & linear-rate coil spring. Twin-tube gas-filled shock
Suspension - Rear
Paralever swingarm & shaft drive, single-tube gas-filled shock, variable rebound setting
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
135 mm / 5.3 in
Brakes - Rear Diameter (mm)
276 mm
Brakes - Rear Diameter (in.)
10.9 inches
Brakes - Front Diameter (mm)
305 mm
Brakes - Front Diameter (in.)
12.0 inches
Brakes - Front
Dual disc
Brakes - Front
2 x 305mm discs, 4 piston calipers
Brakes - Rear
Single disc
Brakes - Rear
Single 276mm disc, 2 piston caliper
Tyres - Front
120/70-ZR17
Tyres - Rear
160/60-ZR18
Wheel Ratio - Rear
1:2.81
