Key Specifications
Power
124.5 kW / 167 hp @ 10250 rpm
Fuel Capacity
5.02 gallons

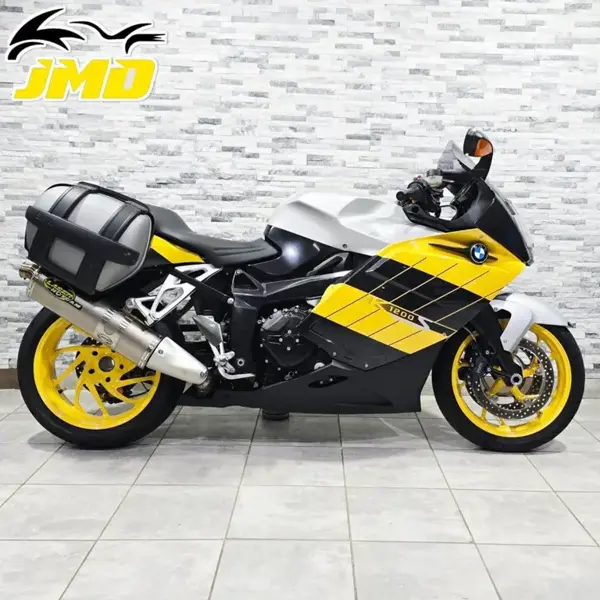

Full 2006 BMW K 1200S Specifications
Year
2005 - 06
Make Model
BMW K 1200S
Width (mm)
905 mm
Width (in.)
35.6 inches
Wheelbase (mm)
1,571 mm
Wheelbase (in.)
61.9 inches
Seat Height (mm)
820 mm
Seat Height (in.)
32.3 inches
Length (mm)
2,182 mm
Length (in.)
85.9 inches
Height (mm)
1,211 mm
Height (in.)
47.7 inches
Height (in.)
47.7 inches
Height (mm)
1,211 mm
Length (in.)
85.9 inches
Length (mm)
2,182 mm
Width (mm)
905 mm
Width (in.)
35.6 inches
Wheelbase (mm)
1,571 mm
Seat Height (in.)
32.3 inches
Seat Height (mm)
820 mm
Wheelbase (in.)
61.9 inches
Seat Height
820 mm / 32.3 in.
Dry Weight (kg)
226.5
Dry Weight (lbs.)
499.3 pounds
Fuel Capacity (gal.)
5.02 gallons
Fuel Capacity (l)
19.00 litres
Wet Weight (kg)
248.0 kg
Wet Weight (lbs.)
546.7 pounds
Dry Weight (kg)
226.5
Dry Weight (lbs.)
499.3 pounds
Wet Weight (kg)
248.0 kg
Wet Weight (lbs.)
546.7 pounds
Dry Weight
248 kg / 547 lbs
Fuel Capacity
19 L / 5.0 US gal
Displacement (ci)
70.60 cubic inches
Displacement (cc)
1157.00 cc
Engine Type
In-line four
Fuel Control
DOHC
Bore x Stroke (mm)
79.0 x 59.0 mm
Bore x Stroke (in,)
3.1 x 2.3 inches
Stroke
4
Stroke
4
Engine Type
In-line four
Displacement (ci)
70.60 cubic inches
Displacement (cc)
1157.00 cc
Bore x Stroke (mm)
79.0 x 59.0 mm
Bore x Stroke (in,)
3.1 x 2.3 inches
Displacement
1157 cc / 70.6 cu in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection / digital engine management including knock sensor (BMS-K)
Fuel System
Injection. Electronic intake pipe injection / digital engine management including knock sensor (BMS-K)
Bore x Stroke
79 X 59 mm
Compression Ratio
13.0:1
Compression Ratio
13.0:1
Cooling System
Liquid cooled
Fuel Consumption
6.7 L/100 km / 15 km/l / 35.3 US mpg
Fuel Induction
Injection
Ignition
Electronic
Starter
Electric
Valve System
4
Valve System
4
Clutch
Multiple-disc clutch in oil bath, hydraulically operated
Clutch
Multiple-disc clutch in oil bath, hydraulically operated
Final Drive
Shaft drive (cardan)
Final Drive
Shaft
Gearbox
6-speed
Gearbox
6-speed
Transmission / Drive
6 Speed
Wheel Travel - Front (mm)
115 mm
Wheel Travel - Front (mm)
115 mm
Wheel Travel - Rear (in.)
5.3 inches
Wheel Travel - Rear (mm)
135 mm
Wheel Travel - Rear (mm)
135 mm
Wheel Travel - Rear (in.)
5.3 inches
Wheel Travel - Front (mm)
115 mm
Wheel Travel - Front (in.)
4.5 inches
Wheel Travel - Front (mm)
115 mm
Wheel Travel - Front (in.)
4.5 inches
Wheel Travel - Front (in.)
4.5 inches
Wheel Travel - Front (in.)
4.5 inches
Trail (mm)
112 mm
Trail (in.)
4.4 inches
Trail (mm)
112 mm
Trail (in.)
4.4 inches
Frame Type
Bridging frame, die-cast aluminium, load bearing engine
Frame Type
Bridging frame, die-cast aluminium, load bearing engine
Suspension - Front
BMW Motorrad Duolever; central spring strut
Suspension - Front
BMW Motorrad Duolever
Suspension - Rear
BMW Paralever with progressive damping single shock absorber, remotely adjustable for preload and rebound
Suspension - Rear
Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever
Rake
29.0°
Rake
29.0°
Wheel Travel - Front
115 mm / 4.5 in.
Wheel Travel - Rear
135 mm / 5.3 in.
Brakes - Rear Diameter (mm)
265 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front
2 x ∅320mm discs, 4 piston calipers
Brakes - Front
Double disc
Brakes - Rear
Single disc
Brakes - Rear
Single ∅265mm disc, 2 piston caliper
Tyres - Front
120/70-ZR17
Tyres - Front
120/70-17
Tyres - Rear
190/50-ZR17
Tyres - Rear
190/50-17
