Key Specifications
Power
78 kW / 105 hp @ 8500 rpm
Torque
92 Nm / 67 .8 lb-ft @ 6500 rpm
Weight
219 kg / 482.8 lbs
Fuel Capacity
15.50 litres

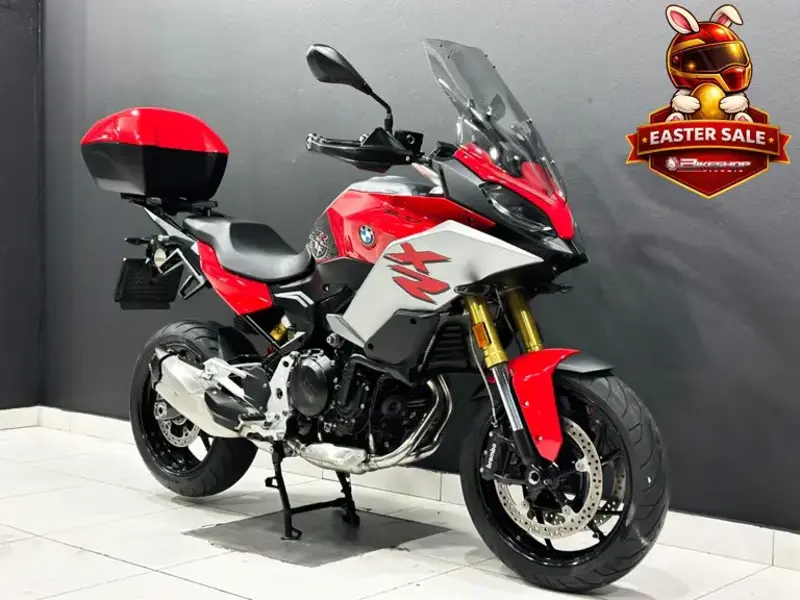

Full 2020 BMW F 900XR Specifications
Year
2020
Colours
Red, white, yellow
Make Model
BMW F 900XR
Width (mm)
860 mm
Width (in.)
33.9 inches
Wheelbase (mm)
1521 mm
Wheelbase (in.)
59.9 inches
Seat Height (mm)
860 mm
Seat Height (in.)
33.9 inches
Length (mm)
2160 mm
Length (in.)
85.0 inches
Height (mm)
1420 mm
Height (in.)
55.9 inches
Seat Height
825 mm / 32.4 in (OE suspension lowering kit: 775 mm, OE low seat: 795 mm, OA high seat: 840 mm, OA comfort seat: 845 mm, OA extra high seat: 870 mm)
Wheelbase
1521 mm / 59.8 in
Height
1320 mm / 51.9 in
Length
2160 mm / 85 in
Width
860 mm / 33.8 in
Wet Weight (lbs.)
482.8 pounds
Wet Weight (kg)
219.0 kg
Fuel Capacity (l)
15.50 litres
Fuel Capacity (gal.)
4.10 US gallons
Fuel Capacity
15.5 Litres / 4.1 US gal
Wet Weight
219 kg / 482.8 lbs
Fuel Reserve (l)
3.50 litres
Fuel Reserve (gal.)
0.92 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Twin, four-stroke
Displacement (ci)
54.61 cubic inches
Displacement (cc)
895.0 cc
CO2
97.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
86.0 x 77.0 mm
Bore x Stroke (in,)
3.4 x 3.0 inches
Displacement
895 cc / 54.6 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic injection
Bore x Stroke
86 x 77 mm
Compression Ratio
13.1:1
Cooling System
Liquid cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-5
Engine Lubrication
Dry sump
Fuel Consumption
4.20 litres/100 km (23.8 km/l or 56.00 mpg)
Fuel Induction
Electronic injection
Ignition
Electronic
Starter
Electric
Valve System
4
Battery Capacity
12 V / 12 Ah, maintenance-free
Clutch
Multiple-disc wet clutch (anti hopping), mechanically operated
Final Drive
Endless O-ring chain with shock damping in rear wheel hub
Gearbox
6-speed
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Transmission / Drive
Constant mesh 6-speed gearbox integrated in crankcase
Wheel Travel - Rear (mm)
172 mm
Wheel Travel - Rear (in.)
6.8 inches
Wheel Travel - Front (mm)
170 mm
Wheel Travel - Front (in.)
6.7 inches
Trail (mm)
105 mm
Trail (in.)
4.1 inches
Frame Type
Bridge-type frame, steel shell construction
Suspension - Front
43mm Upside-down telescopic fork
Suspension - Rear
Cast aluminium dual swing arm, central spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable
Rake
29.5°
Steering Head Angle
60,5°
Trail
105.2 mm / 4.1 in
Wheel Travel - Front
170 mm / 6.6 in
Wheel Travel - Rear
172 mm / 6.7 in
Alternator
permanent magnetic alternator 416 W (nominal power)
Lighting system
LED headlamps
Brakes - Front
2X 320mm floating discs, 4-piston radial brake calipers
Brakes - Rear
Single 265mm discs, single-piston floating caliper
ABS
BMW Motorrad ABS
Tyres - Front
120/70 ZR 17
Tyres - Rear
180/55 ZR 17
Wheels
Cast aluminium wheels
Wheels - Front
3.50″ x 17″
Wheels - Rear
5.50″ x 17"
