Key Specifications
Power
95 hp / 70.8 kW @ 8250 rpm OE output reduction 35 kW (48 hp) at 6,500 rpm OE RON91 unleaded regular fuel: 66 kW (90 hp) at 8,000 rpm
Torque
92 Nm / 67.9 lb-ft @ 6250 rpm SA power reduction 63 Nm at 4,500 rpm SA ROZ91 Normal unleaded petrol: 86 Nm at 6,250 rpm
Fuel Capacity
23.00 litres

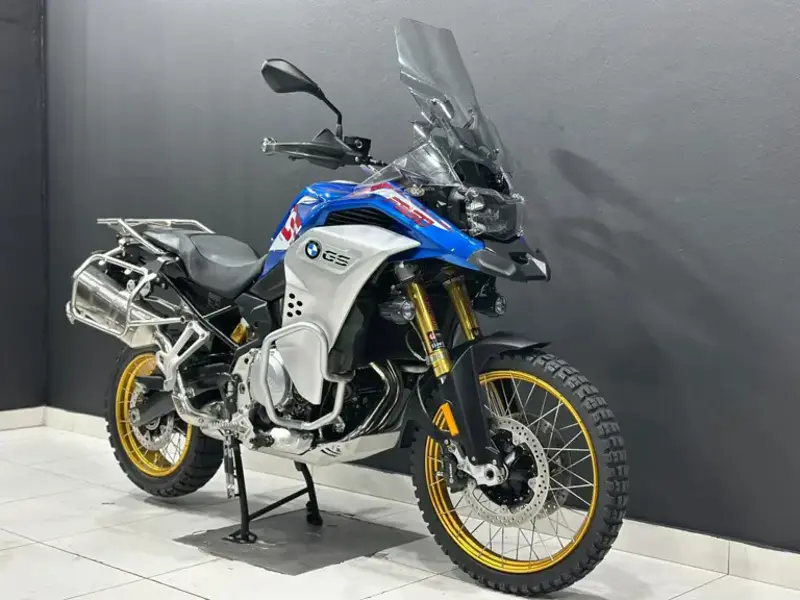

Full 2020 BMW F 850GS Adventure Specifications
Year
2020
Colours
Rallye Style, Exclusive Style, Ice Grey
Make Model
BMW F 850GS Adventure
Height (in.)
56.6 inches
Height (mm)
1437 mm
Length (in.)
90.6 inches
Length (mm)
2300 mm
Seat Height (in.)
34.4 inches
Seat Height (mm)
875 mm
Seat Heigth -Alternate (in.)
35.0 inches
Seat Heigth -Alternate (mm)
890 mm
Wheelbase (in.)
62.7 inches
Wheelbase (mm)
1593 mm
Width (in.)
37.0 inches
Width (mm)
939 mm
Seat Height
875 mm / 34.4 in SA low-slung: 815 mm / 32.0 in SA double seat low: 835 mm / 32.8 in SA double seat: 860 mm / 33.8 in SZ rally seat: 890 mm / 35.0 in
Wheelbase
1593 mm / 62.7 in
Height
1437 mm / 56.5 in (excl mirrors)
Length
2300 mm / 90.5 in
Width
939 mm / 36.6 in (incl mirrors)
Wet Weight (lbs.)
537.9 pounds
Wet Weight (kg)
244.0 kg
Fuel Capacity (l)
23.00 litres
Fuel Capacity (gal.)
6.08 US gallons
Fuel Capacity
23 Litres / 6.0 US gal
Wet Weight
244 kg / 540 lbs
Fuel Reserve (l)
3.50 litres
Fuel Reserve (gal.)
0.92 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Twin, four-stroke
Displacement (ci)
52.05 cubic inches
Displacement (cc)
853.0 cc
CO2
95.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
84.0 x 77.0 mm
Bore x Stroke (in,)
3.3 x 3.0 inches
Displacement
853 cc / 52 ci-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection
Bore x Stroke
84 x 77mm
Compression Ratio
12.7:1
Cooling System
Liquid cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-4
Engine Lubrication
Dry sump
Fuel Consumption
4.10 litres/100 km (24.4 km/l or 57.37 mpg)
Fuel Induction
Electronic intake injection
Fuel Type
Unleaded super, minimum octane number 95 (RON) OE unleaded regular fuel, minimum octane number 91 (RON)
Ignition
Knock control and oxygen sensors.
Starter
Electric
Valve System
4
Battery Capacity
12 V / 10 Ah, maintenance-free
Clutch
Multiplate wet clutch (anti-hopping), mechanically controlled
Final Drive
O-ring chain
Gearbox
6-speed
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Transmission / Drive
Constant-Mesh 6 speed
Trail (in.)
5.0 inches
Trail (mm)
126 mm
Wheel Travel - Front (in.)
9.1 inches
Wheel Travel - Front (mm)
230 mm
Wheel Travel - Rear (in.)
8.5 inches
Wheel Travel - Rear (mm)
215 mm
Frame Type
Bridge-type steel frame in shell construction
Suspension - Front
43 mm USD forks
Suspension - Rear
Aluminum double-sided swing arm, directly mounted, preload and rebound damping adjustable (Dynamic ESA)
Rake
26.0°
Steering Head Angle
62°
Wheel Travel - Front
230 mm / 9.0 in (SA low-slung 210 mm)
Wheel Travel - Rear
215 mm / 8.4 in (SA low-slung 195 mm)
Alternator
Permanent magnetic alternator 416 W (nominal power)
Lighting system
LED headlamps
Brakes - Front
2 x 305 mm discs, 2 piston floating calipers
Brakes - Rear
Single 265mm disc,1 piston floating caliper
ABS
BMW Motorrad ABS (switchable)
Rims
Cross spoke wheels
Tyres - Front
90/90-21
Tyres - Rear
150/70 R17
Wheels - Front
Cross-spoke 21 x 2.15 in
Wheels - Rear
Cross-spoke 17 x 4.25 in
