Key Specifications
Engine
Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Power
148 kW / 201 hp @ 13000 rpm
Torque
117 Nm / 11.9 kgf-m / 86.2 lb-ft @ 10500 rpm
Fuel Capacity
18.5 Liters / 4.9 US gal
Advertisement

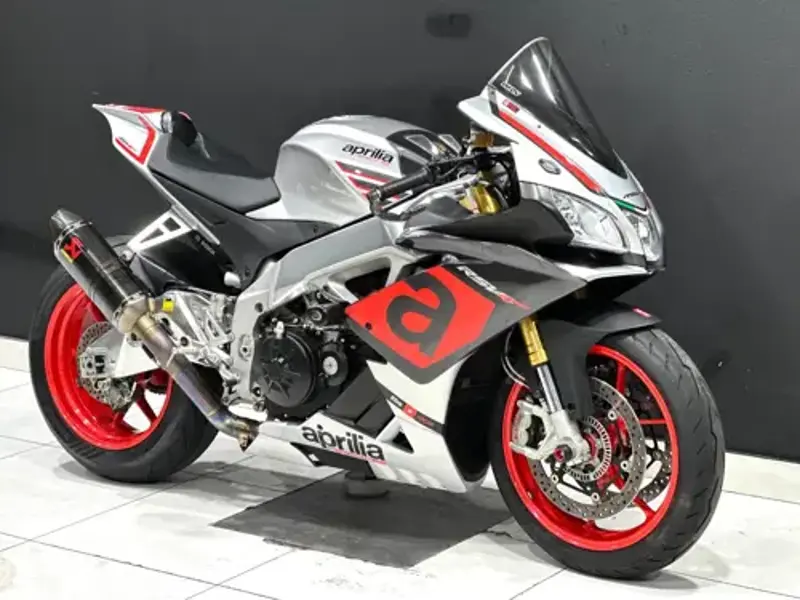

Full 2017 Aprilia RSV-4 RR Specifications
Year
2017
Make Model
Aprilia RSV-4 RR
Seat Height
845 mm / 33.2 in
Ground Clearance
130 mm / 5.1 in
Height
1120 mm / 44.0 in
Length
2040 mm / 80.3 in
Width
735 mm / 28.9 in (at the handlebar)
Dry Weight
182 kg / 401 lbs
Fuel Capacity
18.5 Liters / 4.9 US gal
Displacement
999.6 cc / 61.0 cu-in
Engine Detail
Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Bore x Stroke
78 x 52.3 mm
Compression Ratio
13.6:1
Cooling System
Liquid cooled
Exhaust
4 into 2 into 1 layout, two oxygen sensors, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 4) Alternator Flywheel mounted 450 W alternator with rare earth magnets
Fuel Induction
Airbox with front dynamic air intakes. Variable length intake ducts controlled via ECU. Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-By-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Race)
Fuel Reserve
4 Liters / 1.1 US gal
Ignition
Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and °stick-coil"-type coils
Lubrication
Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Starter
Electric
Clutch
Multi-disc oil bath with mechanical slipper system
Final Drive
Chain
Gear Ratios
1st: 39/15 (2.600) 2nd: 33/16 (2.063) 3rd: 34/20 (1.700) 4th: 31/21 (1.476) 5th: 31/23 (1.348) 6th: 34/27 (1.259)
Primary Drive
Straight cut gears and integrated flexible coupling, drive ratio: 73:44 (1,659)
Secondary Drive
Secondary drive Chain: Drive ratio: 42:16 (2.625)
Transmission / Drive
6 Speed gearbox cassette type
Frame Type
Dual aluminium beam chassis with pressed and cast sheet elements
Suspension - Front
Sachs upside-down fork, 43-mm stanchions (with Tin surface treatment). Low profile forged aluminium radial caliper mounting bracket. Adjustable spring preload, hydraulic compression and rebound damping
Suspension - Rear
Twin sided aluminium swingarm; mixed low thickness and sheet casting technology. Sachs monoshock adjustable: spring preload, wheelbase and hydraulic compression and rebound damping. APS progressive linkages.
Steering Angle
24.5°
Trail
105 mm / 4.1 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
130 mm / 5.1 in
Alternator
Flywheel mounted 420W alternator with rare earth magnets
Brakes - Front
2 x Ø320 mm diameter floating stainless steel disc with lightweight stainless steel rotor and aluminium flange with 6 pins. Brembo monobloc radial calipers with 4 x Ø30 mm opposing. Sintered pads. Radial pump and metal braided brake hose
Brakes - Rear
Single Ø220 mm diameter disc, Brembo floating caliper with two Ø32 mm isolated pistons. Pump with integrated tank and metal braided hose
Tyres - Front
120/70 ZR17
Tyres - Rear
200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR17)
Wheels - Front
3.5 x 17
Wheels - Rear
6.0 x 17
