| General |
| Year | 2016 | - |
| Colours | Red, silver | Candy Lime Green/Metallic Spark Black |

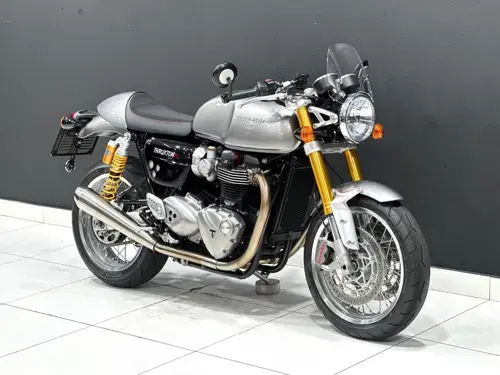

| Make Model | Triumph Thruxton 1200R | - |
| Warranty | 2 year unlimited milage | 12 Month Limited Warranty |
| Dimensions |
| Width (mm) | 745 mm | 800 mm |
| Width (in.) | 29.3 inches | 31.5 inches |
| Wheelbase (mm) | 1,415 mm | 1369 mm |
| Height (in.) | 40.6 inches | 41.5 inches |
| Height (mm) | 1,030 mm | 1054 mm |
| Length (in.) | 84.6 inches | 78.3 inches |
| Length (mm) | 2,150 mm | 1989 mm |
| Wheelbase (in.) | 55.7 inches | 53.9 inches |
| Seat Height (in.) | 31.9 inches | 30.9 inches |
| Seat Height (mm) | 810 mm | 785 mm |
| Ground Clearance (in.) | - | 5.7 inches |
| Ground Clearance (mm) | - | 145 mm |
| Seat Height | 810 mm / 31.9 in | 785 mm / 30.9 in. |
| Wheelbase | 1415 mm / 55.7 in | 1369 mm / 53.9 in. |
| Height | 1030 mm / 40.6 in without mirrors | 1054 mm / 41.5 in. |
| Length | 2105 mm / 82.9 in | 1989 mm / 78.3 in. |
| Width | 745 mm / 29.3 in | 800 mm / 31.5 in. |
| Weights & Capacities |
| Dry Weight (kg) | 203 | - |
| Dry Weight (lbs.) | 447.5 pounds | - |
| Fuel Capacity (gal.) | 3.83 gallons | 3.70 US gallons |
| Fuel Capacity (l) | 14.50 litres | 14.00 litres |
| Oil Capacity (l) | 4.50 litres | - |
| Oil Capacity (Quarts) | 0.30 quarts | - |
| Wet Weight (kg) | - | 165.0 kg |
| Wet Weight (lbs.) | - | 363.8 pounds |
| Dry Weight | 203.2 kg / 448 lbs | - |
| Fuel Capacity | 12.5 Litres / 3.8 US Gal / 2.7 Imp gal | 14.00 litres / 3.70 US gallons |
| Wet Weight | - | 165.0 kg / 363.8 lbs |
| Performance |
| Top Speed (mph.) | - | 91.3 mph |
| Top Speed (km/h) | - | 147.0 km/h |
| Top Speed | - | 147.0 km/h / 91.3 mph |
| Max Power | 71.5 kW / 96 hp @ 6750 rpm | - |
| Max Torque | 111.9 Nm / 11.4 kgf-m / 82.6 lb-ft. @ 4950 rpm | 38.0 Nm (3.9 kgf-m or 28.0 ft.lbs) @ 8000 Revolutions" |
| Power-to-Weight Ratio | 0.4778 HP/kg | - |
| Engine |
| Bore x Stroke (mm) | 97.6 x 80.0 mm | 70.0 x 51.8 mm |
| Bore x Stroke (in,) | 3.8 x 3.1 inches | 2.8 x 2.0 inches |
| Displacement (cc) | 1200.00 cc | 399.0 cc |
| Engine Type | Twin, four-stroke | Twin, four-stroke |
| Fuel Control | Double Overhead Cams/Twin Cam (DOHC) | Overhead Cams (OHC) |
| Displacement (ci) | 73.22 cubic inches | 24.35 cubic inches |
| CO2 | 106.7 CO2 g/km. (CO2 - Carbon dioxide emission) | - |
| Displacement | 1200 cc / 73.2 cu-in | - |
| Engine Detail | Four stroke, 270° crank angle parallel-Twin, SOHC. 4 valve per cylinder. | - |
| Fuel System | Injection. Multipoint sequential electronic fuel injection with SAI | - |
| Bore x Stroke | 97.6 x 80 mm | - |
| Compression Ratio | 11.0:1 | 11.5:1 |
| Cooling System | Liquid cooled | - |
| Emissions | EURO 4 Compliant, CO2 - 106.0 g/km | - |
| Exhaust | Brushed stainless steel 2 into 2 exhaust system with twin silencers | - |
| Fuel Consumption | 4.60 litres/100 km (21.7 km/l or 51.13 mpg) | - |
| Fuel Induction | Multipoint sequential electronic fuel injection | - |
| Ignition | Digital electronic | - |
| Starter | Electric | - |
| Valve System | 4 | 2 |
| Drivetrain |
| Clutch | Wet, multi-plate assist clutch | - |
| Final Drive | Chain, X-ring | Chain (final drive) |
| Gearbox | 6-speed | 5-speed |
| Primary Drive | O ring chain | - |
| Transmission / Drive | 6 Speed | - |
| Chassis |
| Trail (in.) | 3.6 inches | 3.7 inches |
| Trail (mm) | 92 mm | 94 mm |
| Wheel Travel - Front (in.) | 4.7 inches | 4.7 inches |
| Wheel Travel - Front (mm) | 120 mm | 119 mm |
| Wheel Travel - Rear (in.) | 4.7 inches | 5.1 inches |
| Wheel Travel - Rear (mm) | 120 mm | 130 mm |
| Frame Type | Tubular steel cradle, Twin-sided, aluminum swingarm Clear anodized | Trellis, high-tensile steel |
| Suspension - Front | Showa 43mm USD big piston forks, fully adjustable | Telescopic fork |
| Suspension - Rear | Fully adjustable Öhlins twin shocks with piggy back reservoir | Uni-Trak® swingarm |
| Rake | 22.8° | 24.5° |
| Seat | Single bullet seat | - |
| Trail | 90.8 mm / 3.57 in | 94 mm / 3.7 in. |
| Wheel Travel - Front | 120 mm / 4.7 in | 119 mm / 4.7 in. |
| Wheel Travel - Rear | 120 mm / 4.7 in | 130 mm / 5.1 in. |
| Electrical Systems |
| Lighting system | LED DRL Headlight | - |
| Wheels & Brakes |
| Brakes - Rear Diameter (mm) | 220 mm | - |
| Brakes - Front Diameter (in.) | 12.2 inches | - |
| Brakes - Front Diameter (mm) | 310 mm | - |
| Brakes - Rear Diameter (in.) | 8.7 inches | - |
| Brakes - Front | 2 x 310mm Floating discs, Brembo 4-piston radial monobloc calipers, ABS | Single disc |
| Brakes - Rear | Single 220 mm disc, 2-piston axial floating caliper, ABS | Single disc |
| Tyres - Front | 120/70 ZR17 - Pirelli Diablo Rosso Corsa | 110/70-17M |
| Tyres - Rear | 160/60 ZR17 - Pirelli Diablo Rosso Corsa | - |
| Wheels - Front | 32-spoke 17 x 3.5in | - |
| Wheels - Rear | 32-spoke 17 x 5in | - |
