| General |
| Comments | - | Optional traction control. |
| Year | 2018 | - |
| Colours | - | Vivid Black, Baja Orange, Black Denim, Performance Orange, Atlas Silver Metallic |

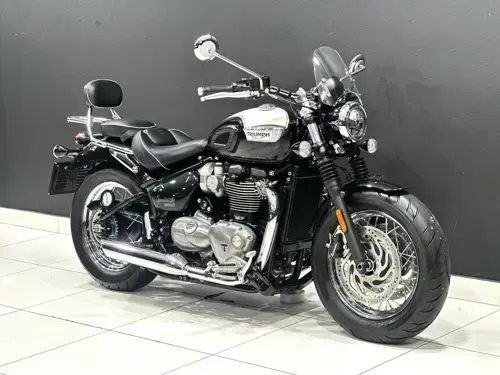

| Make Model | Triumph Bonneville Speedmaster | - |
| Dimensions |
| Ground Clearance (in.) | - | 4.5 inches |
| Ground Clearance (mm) | - | 115 mm |
| Length (in.) | - | 93.3 inches |
| Length (mm) | - | 2370 mm |
| Seat Height (in.) | - | 25.6 inches |
| Wheelbase (in.) | - | 66.7 inches |
| Wheelbase (mm) | - | 1695 mm |
| Seat Height (mm) | - | 650 mm |
| Seat Height | 705 mm / 27.7 in | 650 mm / 25.6 in. |
| Wheelbase | - | 1695 mm / 66.7 in. |
| Length | - | 2370 mm / 93.3 in. |
| Weights & Capacities |
| Oil Capacity (Quarts) | - | 4.97 US quarts |
| Wet Weight (lbs.) | - | 683.0 pounds |
| Wet Weight (kg) | - | 309.8 kg |
| Dry Weight (kg) | 245.5 | 296.2 |
| Fuel Capacity (l) | - | 18.93 litres |
| Fuel Capacity (gal.) | - | 5.00 US gallons |
| Dry Weight (lbs.) | - | 653.0 pounds |
| Oil Capacity (l) | - | 4.70 litres |
| Dry Weight | 245.5kg / 540 lbs | 296.2 kg / 653.0 lbs |
| Fuel Capacity | 12 Litres / 3.17 US gal | 18.93 litres / 5.00 US gallons |
| Wet Weight | - | 309.8 kg / 683.0 lbs |
| Performance |
| Max Power | 57.4 kW / 77 hp @ 6550 rpm | - |
| Max Torque | 106 Nm / 10.7 kgf-m / 77.4 lb-ft @ 3100 rpm | 166.8 Nm (17.0 kgf-m or 123.0 ft.lbs) @ 3500 Revolutions" |
| Engine |
| Bore x Stroke (in,) | - | 4.1 x 4.5 inches |
| Fuel Control | - | Double Overhead Cams/Twin Cam (DOHC) |
| Displacement (ci) | - | 117.00 cubic inches |
| Displacement (cc) | - | 1917.4 cc |
| CO2 | - | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Bore x Stroke (mm) | - | 103.5 x 114.0 mm |
| Engine Type | - | V2, four-stroke |
| Displacement | 1198 cc / 73.1 cu in | - |
| Engine Detail | Four stoke, parallel twin, 270o crank, SOHC | Milwaukee-Eight 117 engine |
| Fuel System | - | Injection. Electronic Sequential Port Fuel Injection |
| Bore x Stroke | 97.6 x 80 mm | - |
| Compression Ratio | 10.0:1 | 10.2:1 |
| Cooling System | Liquid cooled | - |
| Exhaust | Straight line stainless steel twin-skin slash cut twin stubby silencers | 2-into-2 staggered; catalyst in muffler |
| Fuel Consumption | - | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Fuel Induction | Multipoint sequential electronic fuel injection | - |
| Ignition | Digital | - |
| Lubrication | Wet sump | - |
| Starter | - | Electric |
| Drivetrain |
| Clutch | Wet, multi-plate | Multi-plate with diaphragm spring in oil bath |
| Final Drive | Chain, X-ring | Belt (final drive) |
| Gearbox | - | 6-speed |
| Primary Drive | - | Chain, 34/46 ratio primary drive |
| Transmission / Drive | 6-Speed | - |
| Chassis |
| Trail (mm) | - | 145 mm |
| Trail (in.) | - | 5.7 inches |
| Frame Type | Dual tubular steel cradle | - |
| Suspension - Front | 41 mm Kayaba fork | Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring |
| Suspension - Rear | Kayaba twin shocks with adjustable preload | Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment |
| Rake | - | 34.0° |
| Trail | - | 145 mm / 5.7 in. |
| Wheel Travel - Front | 90 mm / 3.5 in | - |
| Wheel Travel - Rear | 73 mm / 2.8 in | - |
| Electrical Systems |
| Instrumentation | - | 2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication |
| Lighting system | - | All LED, low beam, high beam and signature position lamp; Incandescent bullets |
| Wheels & Brakes |
| Brakes - Front | 2 x 310 mm Disc, 2 piston calipers, ABS | Single disc. ABS. 4-piston |
| Brakes - Rear | Single 255 mm disc, 2 piston caliper, ABS | Single disc. ABS. 2-piston floating |
| Rims | - | Gloss black, 26-spoke cast aluminum. Michelin Scorcher tires. |
| Tyres - Front | 130/90-16 | 130/60-B21 |
| Tyres - Rear | 150/80-16 | - |
| Wheels | Wire 32-spoke, steel rims | - |
