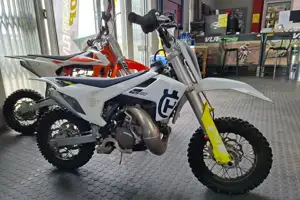

2017 KTM 65 SX vs 2020 Husqvarna TC 50
Full specifications comparison •
2 motorcycles
Full Specifications
Differs
Same
| General |
| Colours | Orange/white/black | White/blue/yellow |
| Warranty | - | 2 Years |
| Dimensions |
| Wheelbase (mm) | 1,137 mm | 1032 mm |
| Wheelbase (in.) | 44.8 inches | 40.6 inches |
| Seat Height (mm) | 750 mm | 684 mm |
| Seat Height (in.) | 29.5 inches | 26.9 inches |
| Ground Clearance (mm) | 280 mm | 252 mm |
| Ground Clearance (in.) | 11.0 inches | 9.9 inches |
| Weights & Capacities |
| Oil Capacity (l) | - | 0.90 litres |
| Dry Weight (kg) | 53 | 41.5 |
| Oil Capacity (Quarts) | - | 0.95 US quarts |
| Fuel Capacity (gal.) | 0.92 gallons | 0.61 US gallons |
| Fuel Capacity (l) | 3.50 litres | 2.30 litres |
| Dry Weight (lbs.) | 116.8 pounds | 91.5 pounds |
| Engine |
| Engine Type | Single cylinder, two-stroke | Single cylinder, two-stroke |
| Displacement (ci) | 3.96 cubic inches | 2.99 cubic inches |
| Displacement (cc) | 64.85 cc | 49.0 cc |
| Bore x Stroke (mm) | 45.0 x 40.8 mm | 39.5 x 40.0 mm |
| Bore x Stroke (in,) | 1.8 x 1.6 inches | 1.6 x 1.6 inches |
| Engine Detail | Reed intake. | - |
| Fuel System | Carburettor. Mikuni TMX | Injection |
| Engine Lubrication | Mixture oil lubrication | Mixture oil lubrication |
| Ignition | AET digital EMS | Seletra 2p D36 |
| Starter | Kick | Kick |
| Drivetrain |
| Clutch | Wet, multi-disc clutch, Formula hydraulics | Centrifugal clutch (adjustable) |
| Final Drive | Chain | Chain (final drive) |
| Gearbox | 6-speed | Automatic |
| Primary Drive | 14:48. Primary drive: 23:75 straight cut spur gear. | Single-speed automatic. Primary drive: 61. |
| Chassis |
| Wheel Travel - Front (in.) | 8.5 inches | 8.1 inches |
| Wheel Travel - Front (mm) | 215 mm | 205 mm |
| Wheel Travel - Rear (mm) | 270 mm | 185 mm |
| Wheel Travel - Rear (in.) | 10.6 inches | 7.3 inches |
| Frame Type | Central-tube frame with double-cradle | Central-tube frame with double-cradle |
| Suspension - Front | WP upside-down ? 35 mm | WP-USD, AER 35, 35 mm |
| Suspension - Rear | WP shock absorber | WP shock absorber |
| Rake | 25.5° | 24.0° |
| Wheels & Brakes |
| Brakes - Front Diameter (mm) | 198 mm | - |
| Brakes - Rear Diameter (in.) | 6.3 inches | - |
| Brakes - Rear Diameter (mm) | 160 mm | - |
| Brakes - Front Diameter (in.) | 7.8 inches | - |
| Brakes - Front | Single disc. Four-piston calipers. Wave brake discs. | Single disc |
| Brakes - Rear | Single disc. Two-piston calipers. Wave brake discs. | Single disc |
| Rims | Black anodized, aluminum rims | - |
