Key Specifications
Engine
Four stroke, 48° V-Twin, OHV, 4 valves per cylinder
Torque
14.7 kgf-m / 106.3 lb-ft.@ 2500 rpm
Weight
312 kg / 687.8 lbs
Fuel Capacity
20 Liters / 5.3 US gal
Advertisement

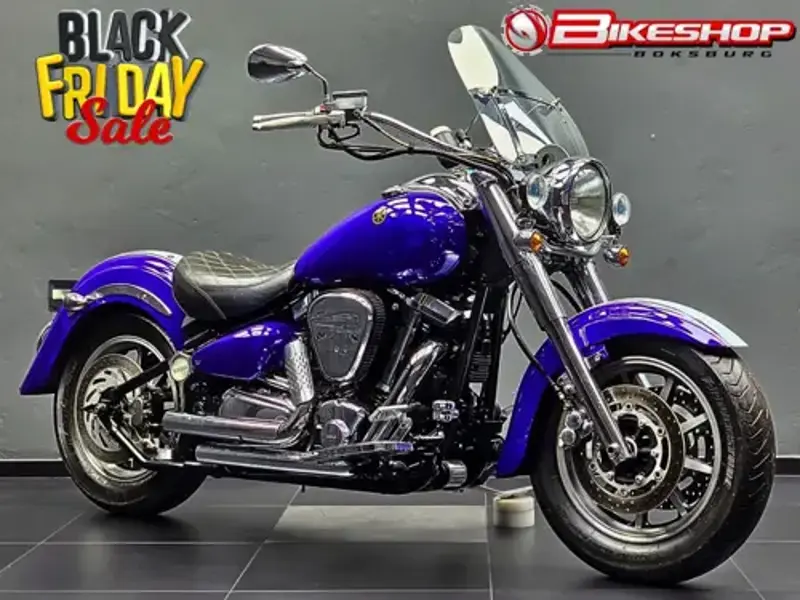

Full 2007 Yamaha XV 1700 Road Star Specifications
Year
2006 - 07
Year
2006 - 07
Make Model
Yamaha XV 1700 Road Star
Make Model
Yamaha XV 1700 Road Star
Seat Height
710 mm / 28 in
Seat Height
710 mm / 28 in
Wheelbase
1689 mm / 66.5 in
Wheelbase
1689 mm / 66.5 in
Ground Clearance
145 mm / 5.7 in
Ground Clearance
145 mm / 5.7 in
Height
1140 mm / 44.9 in
Height
1140 mm / 44.9 in
Length
2499 mm / 98.4 in
Length
2499 mm / 98.4 in
Width
980 mm / 38.6 in
Width
980 mm / 38.6 in
Dry Weight
323 kg / 712 lbs
Dry Weight
312 kg / 687.8 lbs
Fuel Capacity
20 Liters / 5.3 US gal
Fuel Capacity
20 Liters / 5.3 US gal
Displacement
1670 cc / 101.9 cu-in
Displacement
1670 cc / 101.9 cu-in
Engine Detail
Four stroke, 48° V-Twin, OHV, 4 valves per cylinder
Engine Detail
Four stroke, 48° V-Twin, OHV, 4 valves per cylinder
Bore x Stroke
97 x 113mm
Bore x Stroke
97 x 113mm
Compression Ratio
8.4:1
Compression Ratio
8.4:1
Cooling System
Air cooled
Cooling System
Air cooled
Fuel Induction
Single 40mm Mikuni BSR40 CV w/throttle position sensor carburetor
Fuel Induction
Single 40mm Mikuni BSR40 CV w/throttle position sensor carburetor
Ignition
Digital TCI
Ignition
Digital TCI
Starter
Electric
Starter
Electric
Final Drive
Belt
Final Drive
Belt
Transmission / Drive
5 Speed
Transmission / Drive
5 Speed
Frame Type
Aluminium, Double cradle frame
Frame Type
Aluminium, Double cradle frame
Suspension - Front
43mm fork
Suspension - Front
43mm fork
Suspension - Rear
Adjustable link Monocross
Suspension - Rear
Adjustable link Monocross
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
109 mm / 4.3 in
Wheel Travel - Rear
109 mm / 4.3 in
Brakes - Front
2x 298mm discs 4 piston calipers
Brakes - Front
2x 298mm discs 4 piston calipers
Brakes - Rear
Single 320mm disc 4 piston caliper
Brakes - Rear
Single 320mm disc 4 piston caliper
Tyres - Front
130/90-16
Tyres - Front
130/90-16
Tyres - Rear
150/80-16
Tyres - Rear
150/80-16
