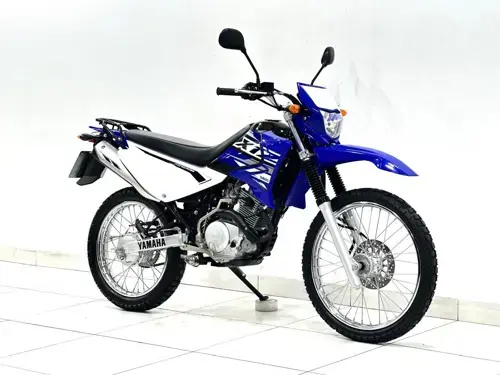

2022 Yamaha XTZ125 Overview
Yamaha XTZ125 is an enduro / off-road motorcycle, displacing 124 cc. Power comes from a Single cylinder, four-stroke engine running Single Overhead Cams (SOHC) valve actuation, a compression ratio of 10.0:1. Bore and stroke come in at 54 x 54 mm. On the performance side, it delivers 9.9 Nm @ 5500 Revolutions of torque. On the road, the 2022 XTZ125 tips the scales at 118 kg, carries an 11-litre fuel tank, offers a seat height of 840 mm and spans a 1300 mm wheelbase. That's roughly 51.6 kg lighter than the average enduro / off-road motorcycle in our database. The full 2022 Yamaha XTZ125 spec sheet below covers every technical detail, from suspension travel to tyre sizes.
2022 Yamaha XTZ125 compared with other bikes in the Enduro / Off-Road category
We checked the recorded figures for the 2022 Yamaha XTZ125 against up to 1434 bikes in the Enduro / Off-Road category in our database, counting each model once at the model year nearest to this one.
- Only 46 of the other 815 bikes in the Enduro / Off-Road category have a lower torque than the 9.9 Nm of the XTZ125.
- With 124 cc, the XTZ125 has the joint 79th smallest engine displacement of 1434 bikes in the Enduro / Off-Road category, 75% below the category average of 486 cc.
- Wet weight of 118 kg is lighter than that of 587 of the other 773 bikes in the Enduro / Off-Road category.
- Narrowing the field to the 270 models within five model years of it, the torque of 9.9 Nm is lower than that of 264 of the other 269.
Versus the 2019 model
Compared with the 2019 model, peak torque dropped from 11.6 Nm to 9.9 Nm (-1.7 Nm). Wet weight, displacement and seat height are unchanged.
2022 XTZ125 - Pros & Cons
Strengths
-
🛑
Strong front braking: Stopping power up front is strong thanks to the single disc setup, with plenty of room to upgrade further with braided lines.
Considerations
-
🔧
Carburetor fuelling: Expect to spend more time keeping the carbs in tune, especially after long storage periods or a change in altitude.
-
🛑
Drum rear brake: Rear braking comes from a drum, not a disc - it does the job but won't match the feel or fade resistance of newer equivalents.
-
📏
Tall seat height: At 840 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.
-
⛽
Modest fuel capacity: Range between stops is limited by the 11-litre tank - plan fuel stops accordingly on longer routes.
-
⚙️
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.
Wear Points & Servicing Notes
Carburetor maintenance
Carburetors on the XTZ125 need periodic attention - pilot jets and float needles are the first parts to gum up after the bike sits, and the first thing to check if idle or throttle response degrades.
Valve clearance checks
With Single Overhead Cams (SOHC) valve gear, the XTZ125 needs periodic clearance checks; caught early they're a cheap adjustment, left unchecked they accelerate valve seat wear.
Brake disc and pad wear
Braking up front comes from single disc - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.
Suspension condition on used examples
The XTZ125's suspension runs Telescopic forks at the front. The rear uses Swingarm. Fork-seal condition and rear linkage play are the two things worth checking before buying used.
Final drive maintenance
The XTZ125 uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.
Frame & chassis check
Built around a Diamond, the XTZ125's chassis is straightforward to inspect: look for corrosion, cracks or repair welds around stress points like the head-stock and swingarm mounts.
Low-speed handling
118 kg keeps the XTZ125 easy to move around in tight spaces, car parks and on the stand alike.
XTZ125 - Buying & Maintenance Guide
What to check before buying
Before handing over money for a used 2022 Yamaha XTZ125 with its 124 cc enduro / off-road, cover the fundamentals: service book and oil change history, drivetrain wear, and any sign of oil weeping around the casings. This model runs chain final drive, so check chain slack and sprocket tooth profile specifically - a worn sprocket is a cheaper fix now than after it's chewed up the next chain. Now 4 years old, this enduro / off-road is as likely to show age-related wear (perished rubber, seized fasteners, degraded seals) as mileage-related wear. Cold-starting it yourself tells you a lot - a healthy XTZ125 should catch quickly and settle into a smooth idle.
Oil and filter changes
Nothing protects the XTZ125's 124 cc single cylinder, four-stroke like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). The sump holds 1.20 litres, so budget for that volume of quality motorcycle-specific engine oil. With a 10.0:1 compression ratio, running the octane grade specified in the manual matters more than on a lower-compression engine. Match the viscosity grade to what the owner's manual specifies, not what's cheapest.
Carburetor upkeep
Deposits in the carbs are the usual culprit behind poor running on a stored XTZ125 - strip and clean the float bowls before the first start. Pilot jets clog first and get overlooked most, so make a point of checking them.
Valve clearance service
Valve clearances are easy to overlook on a used XTZ125 since a bike out of spec doesn't always feel obviously wrong - but the wear it causes is real. Ask the seller for documentation before assuming it's been done.
2022 Yamaha XTZ125 - Frequently Asked Questions
What engine does the 2022 Yamaha XTZ125 have?
The 2022 Yamaha XTZ125 uses a Single cylinder, four-stroke engine with 124 cc of displacement.
How much does the 2022 Yamaha XTZ125 weigh?
The 2022 Yamaha XTZ125 weighs 118 kg. This is the manufacturer's wet figure.
How much torque does the 2022 Yamaha XTZ125 produce?
The 2022 Yamaha XTZ125 produces 9.9 Nm @ 5500 Revolutions of torque.
What is the fuel tank capacity of the 2022 Yamaha XTZ125?
The 2022 Yamaha XTZ125 has an 11-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 183-220 km between stops.
Is the 2022 Yamaha XTZ125 suitable for shorter riders?
The 2022 Yamaha XTZ125 has a seat height of 840 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2022 Yamaha XTZ125 have?
The 2022 Yamaha XTZ125 uses single disc at the front and Expanding brake at the rear.
What tyre sizes does the 2022 Yamaha XTZ125 use?
The front tyre size on the 2022 Yamaha XTZ125 is 80/90-21.
How much oil does the 2022 Yamaha XTZ125 take?
The 2022 Yamaha XTZ125 takes 1.20 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.
Yamaha XTZ125 Spec Evolution
The Yamaha XTZ125 was produced across 3 model years (2018-2022). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2018 |
2019 |
2022 |
| Fuel Capacity |
11.00 litres / 2.91 gallons |
11.00 litres / 2.91 US gallons |
11.00 litres / 2.91 US gallons |
| Displacement (cc) |
124.00 cc |
124.0 cc |
124.0 cc |
| Oil Capacity (l) |
1.10 litres |
1.10 litres |
1.20 litres |
| Oil Capacity (Quarts) |
0.07 quarts |
1.16 US quarts |
1.27 US quarts |
| Wheelbase |
1,300 mm / 51.2 in. |
1300 mm / 51.2 in. |
1300 mm / 51.2 in. |
| Colours |
White, blue |
White, blue |
Power Black, Yamaha Blue |
| Final Drive |
Chain |
Chain (final drive) |
Chain (final drive) |
| Height |
1,115 mm / 43.9 in. |
1115 mm / 43.9 in. |
1115 mm / 43.9 in. |
Key Specifications
Engine
Single cylinder, four-stroke
Torque
9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) @ 5500 Revolutions
Weight
118.0 kg / 260.1 lbs
Fuel Capacity
11.00 litres / 2.91 US gallons
Advertisement
Full 2022 Yamaha XTZ125 Specifications
Comments
Sold in Asia.
Colours
Power Black, Yamaha Blue
Ground Clearance (in.)
10.2 inches
Ground Clearance (mm)
260 mm
Seat Height
840 mm / 33.1 in.
Wheelbase
1300 mm / 51.2 in.
Height
1115 mm / 43.9 in.
Length
2090 mm / 82.3 in.
Width
830 mm / 32.7 in.
Oil Capacity (l)
1.20 litres
Oil Capacity (Quarts)
1.27 US quarts
Fuel Capacity
11.00 litres / 2.91 US gallons
Wet Weight
118.0 kg / 260.1 lbs
Displacement (cc)
124.0 cc
Displacement (ci)
7.57 cubic inches
Engine Type
Single cylinder, four-stroke
Fuel Control
Single Overhead Cams (SOHC)
Bore x Stroke (in,)
2.1 x 2.1 inches
Bore x Stroke (mm)
54.0 x 54.0 mm
Fuel System
Carburettor
Compression Ratio
10.0:1
Engine Lubrication
Wet sump
Ignition
CDI
Starter
Electric
Valve System
2
Clutch
Wet, multiple-disc coil spring
Final Drive
Chain (final drive)
Gearbox
5-speed
Frame Type
Diamond
Suspension - Front
Telescopic forks
Suspension - Rear
Swingarm
Seat
Dual seat and passenger grab rails
Wheel Travel - Front
180 mm / 7.1 in.
Wheel Travel - Rear
180 mm / 7.1 in.
Brakes - Front
Single disc
Brakes - Rear
Expanding brake (drum brake)
Tyres - Front
80/90-21
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
