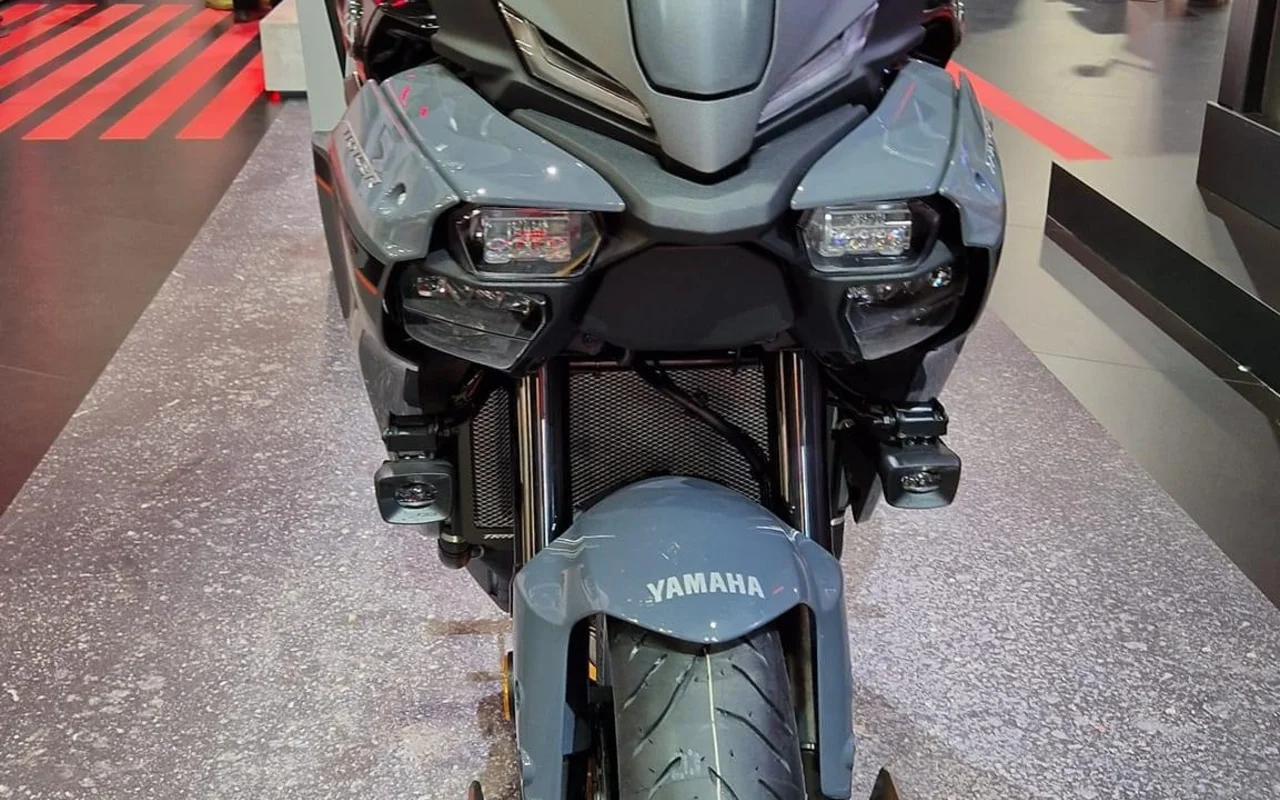

Yamaha Tracer 9 Specs

2025 • 1 variants

Yamaha has built the Tracer 9, a sport tourer, across 1 variant since 2025. Under the tank sits a four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder. It makes 117.4 hp at peak. Torque tops out at 93 Nm.

About the Yamaha Tracer 9

Documented here are the full technical specifications for the Yamaha Tracer 9, a Sport touring motorcycle with a production run from 2021 to 2025. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

Yamaha Tracer 9 by Year

2025 Yamaha Tracer 9 View specs →

Spec Evolution

How key specs changed across production years.

Specification	2021	2023	2025
Seat Height	810 mm or 825.5 mm / 31.9 or 32.5	810 mm or 825.5 mm / 31.9 or 32.5	845 mm - 860 mm / 33.3 in - 33.9 in ↑
Frame Type	Controlled-fill die-cast aluminum with subframe	Lightweight CF aluminum die-cast frame	Diamond frame
Brakes - Front	2x 298mm hydraulic discs, 4-piston Nissin calipers	2x 298mm hydraulic discs, 4-piston Nissin calipers	2 x 298mm hydraulic discs, ABS
Wheelbase	1501 mm / 59.1 in	1500 mm / 59.1 in ↓	1500 mm / 59.1 in
Engine Detail	Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse three cylinder, DOHC, 12 Valve ↑
Brakes - Rear	Single 245mm hydraulic disc, single piston Nissin caliper	Single 245mm hydraulic disc, single piston Nissin caliper	Single 2267mm hydraulic disc, ABS ↑
Fuel Capacity	18.9 Litres / 5 US gal	18 Litres / 4.7 US gal ↓	19 Litres / 5.0 US gal ↑
Suspension - Front	41mm Telescopic forks	41mm semi-active KYB inverted fork, fully adjustable preload, compression and rebound	41mm fork, adjustable preload and rebound damping
Suspension - Rear	Single shock, swingarm	Single shock, fully adjustable, semi-active horizontal KYB shock	Rear single shock, adjustable preload and rebound damping
Clutch	Wet multiplate	Wet multiplate assist and slipper clutch	Wet, multiple-disc
Final Drive	O-ring chain	O-ring chain	Chain
Height	1430 mm - 1470 mm / 56.3 in - 57.9 in	1430 mm - 1470 mm / 56.3 in - 57.9 in	1460 mm to 1505 mm / 57.5 in to 59.3 in ↑
Length	1430 mm - 1470 mm / 56.3 in - 57.9 in	1430 mm - 1470 mm / 56.3 in - 57.9 in	2175 mm / 85.6 in ↑
Compression Ratio	11.5:1	11.5:1	11.5 :1
Wet Weight	213 kg / 469.5 lbs	213 kg / 469.5 lbs	219 kg / 483 lbs ↑
Tyres - Front	120/70 x 17	120/70Z R17 M/C (58W) (Tubeless)	120/70-ZR17M/C (58W)
Width	884 mm / 34.8 in	884 mm / 34.8 in	900 mm / 35.4 in ↑
Tyres - Rear	180/55 x 17	180/55Z R17 M/C (73W) (Tubeless)	180/55-ZR17M/C (73W)
Rake	25°	25°	24.25° ↓
Wheels	Ultra-light SpinForged 17-inch 10-spoke wheels	Lightweight SpinForged wheels	-
Transmission / Drive	6 Speed	6 Speed, constant mesh	Y-AMT standard on GT+ and optional on GT and Tracer 9 ↑
Fuel Induction	Fuel injection with YCC-T	Electronic Fuel Injection with YCC-T	Electronic fuel injection with YCC-T
Trail	109 mm / 4.3 in	108 mm / 4.3 in ↓	106 mm / 4.2 in ↓
Max Power	117.4 hp / 119PS / 87.5 kW @ 10000 rpm	117.4 hp / 87.5 kW @ 10000 rpm	87.5 kW / 119 hp @ 10,000 rpm ↓
Wheel Travel - Rear	122 mm / 4.8 in	137 mm / 5.4 in ↑	131 mm / 5.1 in ↓
Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	Transistorized coil ignition
Max Torque	93 Nm / 68.6lb-ft @ 7000 rpm	93 Nm / 68.6 lb-ft @ 7000 rpm	93 Nm / 9.5 kgf-m @ 7 000 rpm
