Yamaha FJR1300AS Specs

2006–2013 • 2 variants

Yamaha has built the FJR1300AS, a sport tourer, across 2 variants since 2006, most recently updated for 2013. Under the tank sits a forward-inclined cylinders, 1298.0 cc in capacity. Torque tops out at 138 Nm.

About the Yamaha FJR1300AS

Yamaha introduced the FJR1300AS as part of their Sport range, with production running from 2006 to 2020. This technical reference page documents the full specification sheet for the Yamaha FJR1300AS, including engine displacement, power and torque figures, frame and suspension geometry, braking systems, and overall dimensions. Select a model year above to view year-specific technical data. Specifications are compiled from official manufacturer sources.

Yamaha FJR1300AS by Year

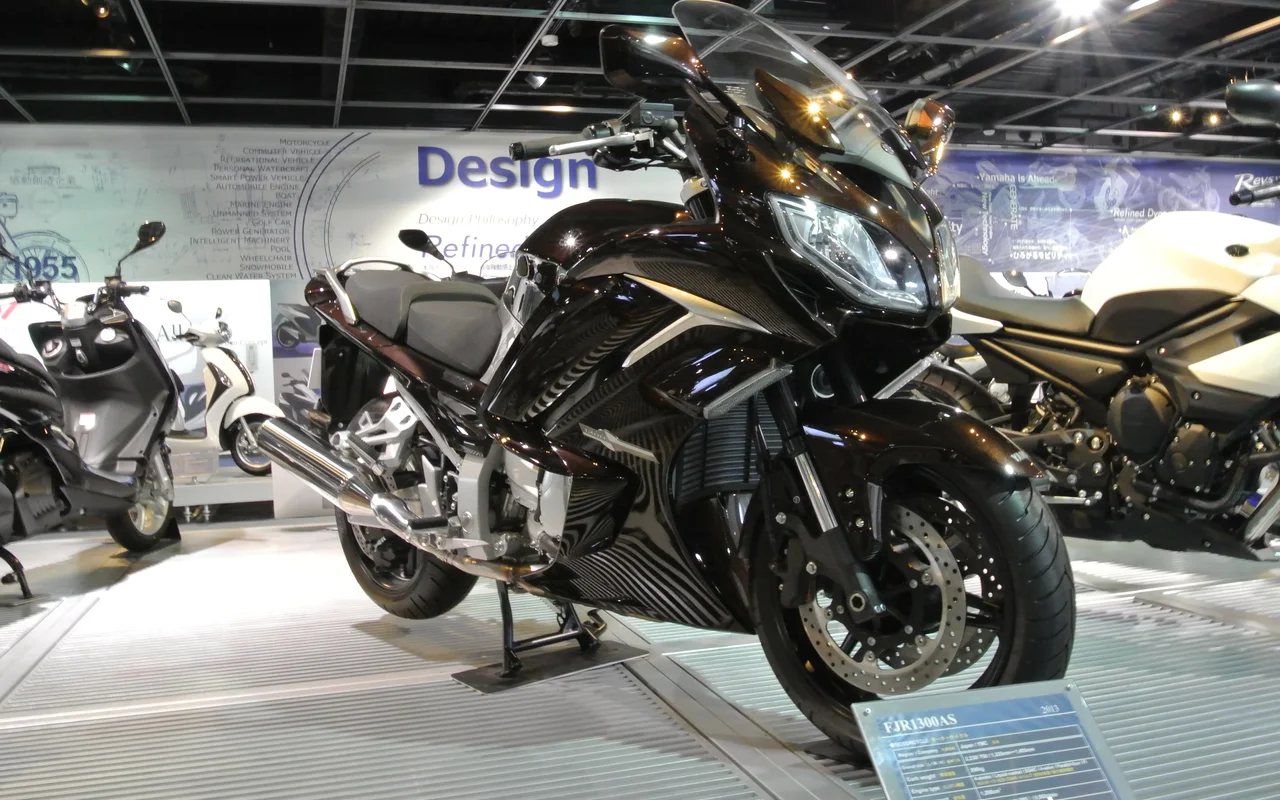

2013 Yamaha FJR1300AS View specs →

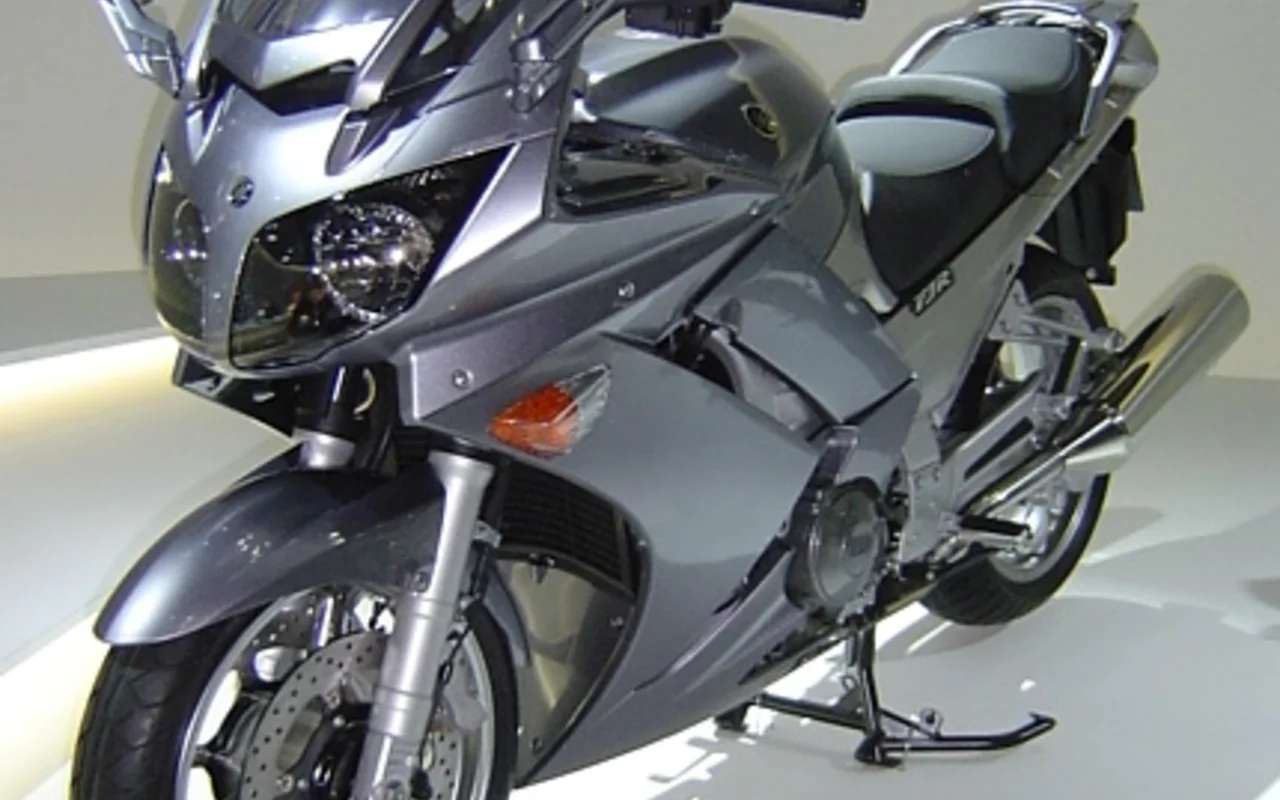

2006 Yamaha FJR1300AS View specs →

Spec Evolution

How key specs changed across production years.

Specification	2006	2007	2008	2009	2011	2012	2013	2014	2015	2016	2017	2018	2020
CO2	-	-	-	-	-	-	151.5 CO	151.5 CO	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	143.8 CO2 g/km. (CO2 - Carbon dioxide emission) ↓	143.8 CO2 g/km. (CO2 - Carbon dioxide emission)	143.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Comments	-	-	-	-	-	-	Windshield.	Electronically-adjustable suspension. Traction control and cruise control systems. Windshield.	Electronically-adjustable suspension. Traction control and cruise control systems. Windshield.	Electronically-adjustable suspension. Traction control and cruise control systems. Windshield.	Electronically-adjustable suspension. Traction control and cruise control systems. Windshield.	Traction control and cruise control systems. Windshield.	Windshield. Heated grips.
Displacement (cc)	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.0 cc
Engine Type	In-line four	In-line four	In-line four, four-stroke	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Fuel Control	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)
Ground Clearance (in.)	5.3 inches	-	5.1 inches	5.1 inches	5.1 inches	5.1 inches	5.1 inches	5.1 inches	4.9 inches ↓	4.9 inches	4.9 inches	4.9 inches	5.1 inches ↑
Ground Clearance (mm)	135 mm	-	130 mm	130 mm	130 mm	130 mm	130 mm	130 mm	125 mm ↓	125 mm	125 mm	125 mm	130 mm ↑
Oil Capacity (Quarts)	-	-	-	0.32 quarts	0.32 quarts	0.32 quarts	0.32 quarts	0.32 quarts	0.32 quarts	0.32 quarts	0.32 quarts	0.32 quarts	5.18 US quarts ↑
Storage	-	-	-	-	-	-	-	Boot for integral helmet	Saddle bags	Saddle bags	Saddle bags	Saddle bags	Saddle bags
Brakes - Rear Diameter (mm)	-	282 mm	282 mm	282 mm	-	220 mm	282 mm ↑	282 mm	282 mm	282 mm	282 mm	282 mm	-
Brakes - Rear Diameter (in.)	-	11.1 inches	11.1 inches	11.1 inches	-	8.7 inches	11.1 inches ↑	11.1 inches	11.1 inches	11.1 inches	11.1 inches	11.1 inches	-
Seat Height	805 mm / 31.7 in.	800 mm / 31.5 in. ↓	805 mm / 31.7 in. ↑	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.
Frame Type	Aluminium, diamond shaped	Aluminium, diamond shaped	Aluminium, diamond shaped	Aluminium, diamond shaped	Diamond Shaped, Aluminium	Diamond Shaped, Aluminium	Aluminium, Diamond Shaped	Aluminium, Diamond Shaped	Aluminium, Diamond Shaped	Aluminium, Diamond shaped	Aluminium, Diamond shaped	Aluminium, Diamond shaped	Aluminium, Diamond Shaped
Dry Weight	268 kg / 590.8 lbs	268 kg / 590.8 lbs	268 kg / 590.8 lbs	-	230 kg / 507.0 lbs	-	210.5 kg / 464.1 lbs	59 kg / 130.1 lbs ↓	-	-	-	-	-
Wheelbase	1,550 mm / 61.0 in.	1,545 mm / 60.8 in.	1,545 mm / 60.8 in.	1,545 mm / 60.8 in.	1,545 mm / 60.8 in.	1,545 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1544 mm / 60.8 in. ↑
Brakes - Front	Double disc	Double disc	Double disc	Double disc	Double disc	Double disc	Double disc. Hydraulic	Double disc. Hydraulic	Double disc. Hydraulic	Double disc. Hydraulic	Double disc. Hydraulic	Double disc. Hydraulic	Double disc. Unified Brake System and ABS
Engine Detail	-	-	-	-	-	Forward-inclined parallel cylinders	-	Brushless in rear wheel hub	Forward-inclined cylinders	Forward-inclined cylinders	Forward-inclined cylinders	Forward-inclined cylinders	-
Fuel Capacity	-	-	25.00 litres / 6.61 gallons	25.00 litres / 6.61 gallons	25.00 litres / 6.61 gallons	25.00 litres / 6.61 gallons	24.98 litres / 6.60 gallons ↓	25.00 litres / 6.61 gallons ↑	25.00 litres / 6.61 gallons	25.00 litres / 6.61 gallons	25.00 litres / 6.61 gallons	25.00 litres / 6.61 gallons	24.98 litres / 6.60 US gallons ↓
Brakes - Rear	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc. Hydraulic	Single disc. Hydraulic	Single disc. Hydraulic	Single disc. Hydraulic	Single disc. Hydraulic	Single disc. Hydraulic	Single disc. Unified Brake System and ABS
Suspension - Front	Telescopic fork, 48mm	Telescopic fork, 48mm	Telescopic forks, 48mm	Telescopic forks, 48 mm	Telescopic forks, 48 mm	Telescopic forks, 48 mm	Upside-down telescopic fork, ? 48 mm tube, adjustable preload, compression and rebound damping	Upside-down telescopic fork, ? 48 mm tube, adjustable preload, compression and rebound damping	Upside-down telescopic fork, ? 48 mm tube, adjustable preload, compression and rebound damping	Upside-down telescopic fork, ? 48 mm tube, adjustable preload, compression and rebound damping	Upside-down telescopic fork, ? 48 mm tube, adjustable preload, compression and rebound damping	Upside-down telescopic fork, ? 48 mm tube, adjustable preload, compression and rebound damping	Upside-down telescopic fork, Ø48 mm tube, adjustable preload, compression and rebound damping
Suspension - Rear	Swingarm (Link-type)	Swingarm (link-suspension)	Swingarm (link-suspension)	Swingarm (link suspension)	Swingarm, (link suspension)	Swingarm, (link suspension)	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Single shock, adjustable preload and rebound damping, 4.9-in travel
Fuel System	Injection. Electronic fuel injection	Injection	Injection. Electronic fuel injection	Injection. Electronic Fuel Injection	Injection. EFI	Injection. EFI	Injection	Injection	Injection	Injection	Injection	Injection	Injection
Colours	-	-	-	Black, gray, silver	Hunter Green, Steel Blue, Red	Silver tech, Midnight black	Bronze, black	Bronze, black	Magnetic Bronze, Tech Graphite	Matt Silver, Tech Graphite	Silver, Graphite	Silver, Graphite, Blue	Phantom Blue
Clutch	Wet, multiple disc	Wet, multiple disc	Wet, multiple disc	Wet, multiple-disc	Wet, Multiple Disc	Clutchless gear shift	-	No clutch	-	-	-	-	Multiplate assist-and-slipper wet clutch
Final Drive	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan) (final drive)
Height	1,330 mm / 52.4 in.	-	1,315 mm / 51.8 in.	1,315 mm / 51.8 in.	1,315 mm / 51.8 in.	1,315 mm / 51.8 in.	1,326 mm / 52.2 in. ↑	1,326 mm / 52.2 in.	1,455 mm / 57.3 in. ↑	1,455 mm / 57.3 in.	1,455 mm / 57.3 in.	1,455 mm / 57.3 in.	1326 mm / 52.2 in. ↑
Length	2,240 mm / 88.2 in.	2,230 mm / 87.8 in. ↓	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2230 mm / 87.8 in. ↑
Wet Weight	-	-	-	295.0 kg / 650.4 lbs	295.0 kg / 650.4 lbs	295.0 kg / 650.4 lbs	296.0 kg / 652.6 lbs ↑	292.0 kg / 643.7 lbs ↓	296.0 kg / 652.6 lbs ↑	296.0 kg / 652.6 lbs	296.0 kg / 652.6 lbs	296.0 kg / 652.6 lbs	296.0 kg / 652.6 lbs
Warranty	-	-	-	-	6 Month (Limited Factory Warranty)	6 Month (Limited Factory Warranty)	1 year / 5000 miles limited warranty. ↓	3 years warranty including battery ↑	-	-	-	-	1 Year (Limited Factory Warranty)
Emissions	-	-	-	-	3-way catalytic	3-way catalytic	-	No direct emission	-	-	-	-	-
Tyres - Front	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17
Gearbox	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	6-speed ↑	6-speed	6-speed	6-speed
Width	745 mm / 29.3 in.	-	750 mm / 29.5 in.	750 mm / 29.5 in.	750 mm / 29.5 in.	750 mm / 29.5 in.	749 mm / 29.5 in. ↓	749 mm / 29.5 in.	750 mm / 29.5 in. ↑	750 mm / 29.5 in.	750 mm / 29.5 in.	750 mm / 29.5 in.	749 mm / 29.5 in. ↓
Tyres - Rear	180/55-ZR17	180/55-ZR17	180/55-ZR17	180/55-ZR17	180/55-ZR17	180/55-ZR17	180/55-ZR17	130/60-13 ↓	180/55-ZR17 ↑	180/55-ZR17	180/55-ZR17	180/55-ZR17	-
Primary Drive	-	-	-	-	Constant Mesh, 5-speed	Constant Mesh	Constant mesh	Constant mesh	Constant mesh	Constant mesh	Constant mesh	Constant mesh	-
Rake	-	-	-	-	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°
Instrumentation	-	-	-	-	-	Speedometer, odometer and fuel gauge	-	Digital	-	-	-	-	Analog meter on the left, a digital speedometer in the center, and a multi-dot display on the right..
Lighting system	-	-	-	-	Dual 30W Krypton Multi-reflector Headlights and 21/5W Brake light	Dual 30W Krypton multireflector headlights and 21/5W brakelight	-	LED lights	-	LED lights with front adaptive cornering lights	LED lights with front adaptive cornering lights	LED lights with front adaptive cornering lights	LED lights with front adaptive cornering lights
Seat	-	-	-	-	-	-	2-person seat	2 people seat	-	-	-	-	-
Fuel Consumption	-	-	-	-	-	-	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.20 litres/100 km (16.1 km/l or 37.94 mpg) ↓	6.20 litres/100 km (16.1 km/l or 37.94 mpg)	6.20 litres/100 km (16.1 km/l or 37.94 mpg)
Wheel Travel - Front	135 mm / 5.3 in.	135 mm / 5.3 in.	120 mm / 4.7 in. ↓	135 mm / 5.3 in. ↑	135 mm / 5.3 in.	147 mm / 5.3 in. ↑	135 mm / 5.3 in. ↓	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.
Wheel Travel - Rear	120 mm / 4.7 in.	125 mm / 4.9 in. ↑	117 mm / 4.6 in. ↓	125 mm / 4.9 in. ↑	124 mm / 4.9 in. ↓	193 mm / 7.6 in. ↑	125 mm / 4.9 in. ↓	125 mm / 4.9 in.	125 mm / 4.9 in.	125 mm / 4.9 in.	125 mm / 4.9 in.	125 mm / 4.9 in.	124 mm / 4.9 in. ↓
Ignition	-	TCI	TCI	TCI	TCI	TCI	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	Transistor Controlled Ignition	Transistor Controlled Ignition	Transistor Controlled Ignition	TCI
Max Torque	-	134.40	134.40 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 13700	134.40	134.40 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 7000	134.40 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 7000	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 ↑	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions
Power-to-Weight Ratio	0.5279 HP/kg	0.5279 HP/kg	0.5279 HP/kg	-	-	-	0.1143 HP/kg	0.1819 HP/kg ↑	-	-	-	-	-
