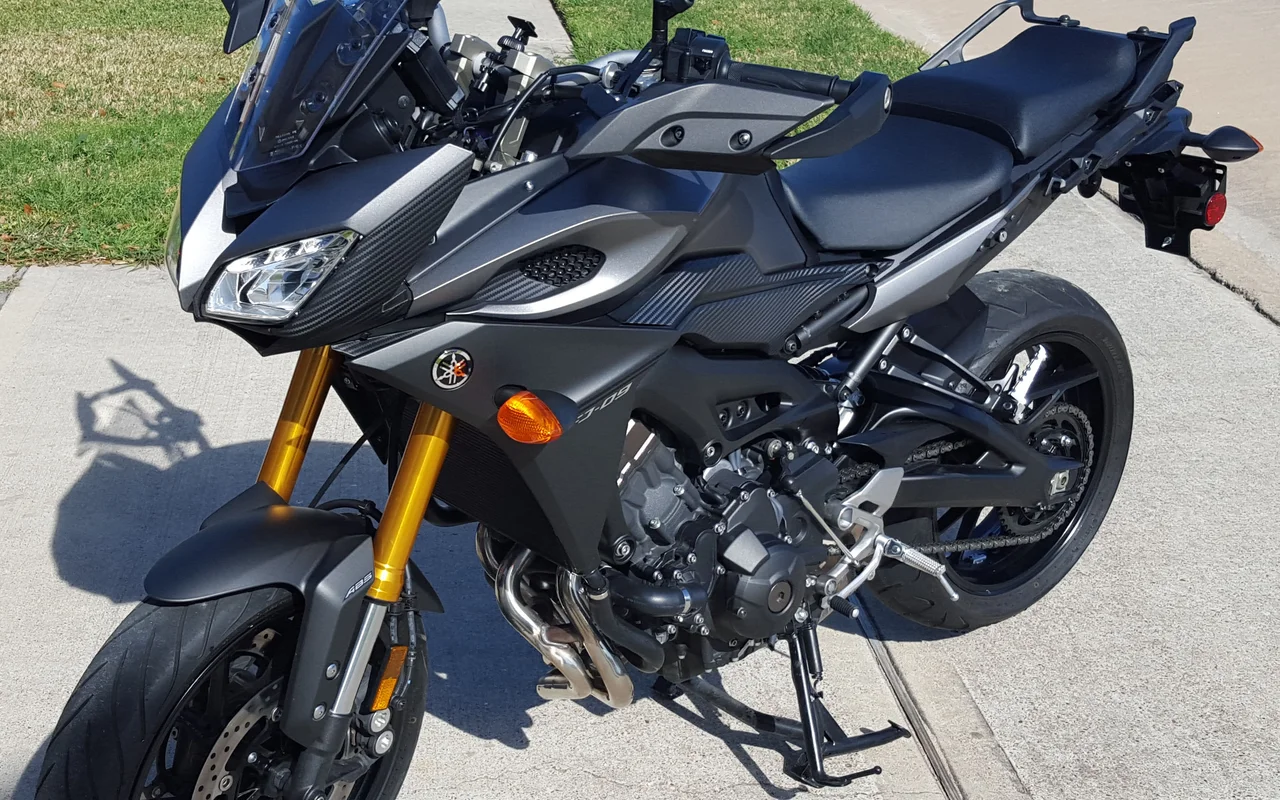

2016 Yamaha FJ-09 Overview
For 2016, Yamaha offers the FJ-09 as a naked bike motorcycle. The 2016 Yamaha FJ-09 is built around an In-line three, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 11.5:1. Internally, bore and stroke are 78 x 59.1 mm. Out on the road, the FJ-09 delivers 61.46 Nm @ 8480 Revolutions of torque. In everyday use, the 2016 FJ-09 tips the scales at 209.6 kg, carries a 18.17-litre fuel tank, offers a seat height of 846 mm and spans a 1,440 mm wheelbase. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2016 Yamaha FJ-09 spec sheet below.
2016 FJ-09 - Pros & Cons
Strengths
-
🔧
Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
-
⛽
Large fuel range: With a 18.17-litre tank, this isn't a bike you'll be stopping for fuel every hour - a real asset on longer trips.
Considerations
-
📏
Tall seat height: A 846 mm seat puts flat-footing out of reach for a lot of riders - sit on it in person before committing.
-
⚙️
Chain final drive upkeep: A chain drivetrain is the most common setup in its class, but it's also the one that demands the most regular hands-on maintenance.
Wear Points & Servicing Notes
Fuelling & injector care
Fuelling on the FJ-09 comes from fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.
Valve clearance checks
Valve clearances on Double Overhead Cams/Twin Cam (DOHC)-equipped engines like the FJ-09's drift slowly with mileage rather than failing suddenly - sticking to the service interval keeps it a non-issue.
Brake disc and pad wear
Double disc. ABS. Hydraulic. up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.
Suspension condition on used examples
Suspension duties are handled by 41mm fork, adjustable preload and rebound damping up front and Single shock, adjustable preload and rebound damping at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.
Final drive maintenance
Chain final drive on the FJ-09 means routine lubing and tension checks are part of ownership - skip them and sprocket wear accelerates noticeably.
Frame & chassis check
The Aluminum twin-spar chassis holds up well with normal use; on a used bike it's still worth checking the head-stock and swingarm pivot area for impact damage or corrosion.
FJ-09 - Buying & Maintenance Guide
What to check before buying
A pre-purchase check on the 2016 Yamaha FJ-09 should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept FJ-09 settles to a smooth idle within seconds.
Oil and filter changes
Oil changes are the cheapest insurance you can buy for a FJ-09's engine - keep to the manufacturer's interval rather than stretching it. Use the viscosity grade the manual specifies, not whatever's on sale.
Fuel system care
Injector systems like the FJ-09's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.
Valve clearance service
There's no reliable seat-of-the-pants way to tell if a FJ-09's valve clearances are in spec - a light top-end tick is the only real warning sign, and by then some wear has already happened. Service records are the only proof.
2016 Yamaha FJ-09 - Frequently Asked Questions
What engine does the 2016 Yamaha FJ-09 have?
The 2016 Yamaha FJ-09 is powered by an In-line three, four-stroke engine.
How much does the 2016 Yamaha FJ-09 weigh?
The 2016 Yamaha FJ-09 weighs 209.6 kg. This is the manufacturer's wet figure.
How much power does the 2016 Yamaha FJ-09 make?
The 2016 Yamaha FJ-09 produces 61.46 Nm @ 8480 Revolutions of torque.
What is the fuel tank capacity of the 2016 Yamaha FJ-09?
The 2016 Yamaha FJ-09 has a 18.17-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 302-363 km between stops.
Is the 2016 Yamaha FJ-09 suitable for shorter riders?
The 2016 Yamaha FJ-09 has a seat height of 846 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2016 Yamaha FJ-09 have?
The 2016 Yamaha FJ-09 uses Double disc. ABS. Hydraulic. at the front and Single disc. Hydraulic. at the rear.
What tyre sizes does the 2016 Yamaha FJ-09 use?
The 2016 Yamaha FJ-09 runs 120/70-ZR17 front and 180/55-ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
Yamaha FJ-09 Spec Evolution
The Yamaha FJ-09 was produced across 4 model years (2015-2018). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2015 |
2016 |
2017 |
2018 |
| Colours |
Matte Gray, Candy Red |
Raven, Matte Silver |
Galaxy Blue, Electric White |
Galaxy Blue, Electric White |
| Clutch |
- |
- |
Assist and Slipper Clutch |
Multi-plate assist and slipper wet clutch |
| Ignition |
TCI: Transistor Controlled Ignition |
TCI: Transistor Controlled Ignition |
TCI |
TCI |
| Valve System |
2 |
2 |
4 |
4 |
Key Specifications
Engine
In-line three, four-stroke
Power
Not published by manufacturer
Torque
61.46 Nm (6.3 kgf-m or 45.3 ft.lbs) @ 8480 Revolutions
Top Speed
Not published by manufacturer
Weight
209.6 kg / 462.0 lbs
Fuel Capacity
18.17 litres / 4.80 gallons
Advertisement
Full 2016 Yamaha FJ-09 Specifications
Comments
Height-adjustable windshield, side fairing, adjustable riding position, 12V electrical outlet.
Colours
Raven, Matte Silver
Warranty
1 Year Limited Factory Warranty
Seat Height
846 mm / 33.3 in.
Wheelbase
1,440 mm / 56.7 in.
Height
1,346 mm / 53.0 in.
Length
2,159 mm / 85.0 in.
Width
950 mm / 37.4 in.
Fuel Capacity
18.17 litres / 4.80 gallons
Wet Weight
209.6 kg / 462.0 lbs
Bore x Stroke (in,)
3.1 x 2.3 inches
Bore x Stroke (mm)
78.0 x 59.1 mm
CO2
124.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Engine Type
In-line three, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel System
Injection
Compression Ratio
11.5:1
Fuel Consumption
5.35 litres/100 km (18.7 km/l or 43.97 mpg)
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Valve System
2
Final Drive
Chain
Gearbox
6-speed
Frame Type
Aluminum twin-spar
Suspension - Front
41mm fork, adjustable preload and rebound damping
Suspension - Rear
Single shock, adjustable preload and rebound damping
Rake
24.0°
Trail
99 mm / 3.9 in.
Wheel Travel - Front
137 mm / 5.4 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Brakes - Front Diameter (in.)
11.7 inches
Brakes - Front Diameter (mm)
298 mm
Brakes - Rear Diameter (in.)
9.6 inches
Brakes - Rear Diameter (mm)
245 mm
Brakes - Front
Double disc. ABS. Hydraulic.
Brakes - Rear
Single disc. Hydraulic.
Tyres - Front
120/70-ZR17
Tyres - Rear
180/55-ZR17
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
