Key Specifications
Engine
Four stroke, 50° V twin SOHC, 4 valves per cylinder
Fuel Capacity
17 Litres / 4.5 US gal
Advertisement

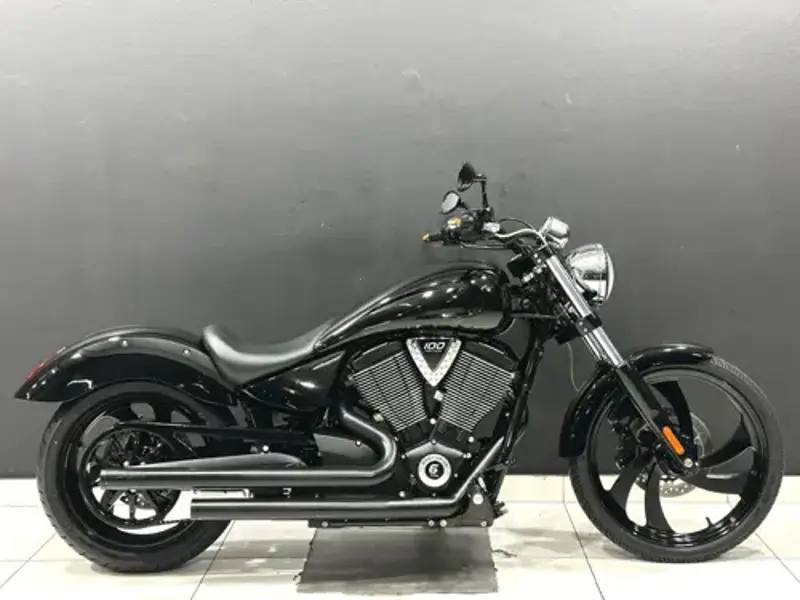

Full 2010 Victory Vegas 8 Ball Specifications
Year
2009 - 10
Make Model
Victory Vegas 8 Ball
Seat Height
640 mm / 25.2 i
Dry Weight
291 kg / 645 lbs
Fuel Capacity
17 Litres / 4.5 US gal
Maximum Load / GVWR
522 kg / 151 lbs
Displacement
1634 cc / 100 cu-in
Engine Detail
Four stroke, 50° V twin SOHC, 4 valves per cylinder
Bore x Stroke
101 x 102 mm
Compression Ratio
9.8:1
Cooling System
Air / oil
Fuel Induction
Electronic Fuel Injection with 44mm throttle bodies
Starter
Electric
Battery Capacity
12 volts / 18 amp hours
Clutch
Wet, multi-plate
Final Drive
Carbon Fiber Reinforced Belt
Transmission / Drive
6 Speed
Suspension - Front
43mm Inverted cartridge telescopic fork, 130mm wheel travel
Suspension - Rear
Single, mono-tube gas forged and cast aluminum w/ rising-rate linkage 100mm wheel travel, preload adjustable spring
Brakes - Front
Single 300mm floating rotor 4 piston caliper
Brakes - Rear
Single 300mm floating rotor 2 piston caliper
Tyres - Front
80/90 -21
Tyres - Rear
180/55 R18
