Vespa GTS 300 Super Specs

2009 - 2011 • 3 variants

Vespa has built the GTS 300 Super, a scooter, across 3 variants since 2009, most recently updated for 2011. Under the tank sits a quasar engine, 278.00 cc in capacity. Torque tops out at 22.3 Nm.

About the Vespa GTS 300 Super

As a Scooter motorcycle, the Vespa GTS 300 Super was offered from the 2009 through to the 2016 model year. The technical data presented here covers the complete specification range for this model, including all engine variants, chassis dimensions, suspension travel, brake specifications, and weight figures. This information is useful for prospective buyers, current owners, and mechanics working on the Vespa GTS 300 Super.

Vespa GTS 300 Super by Year

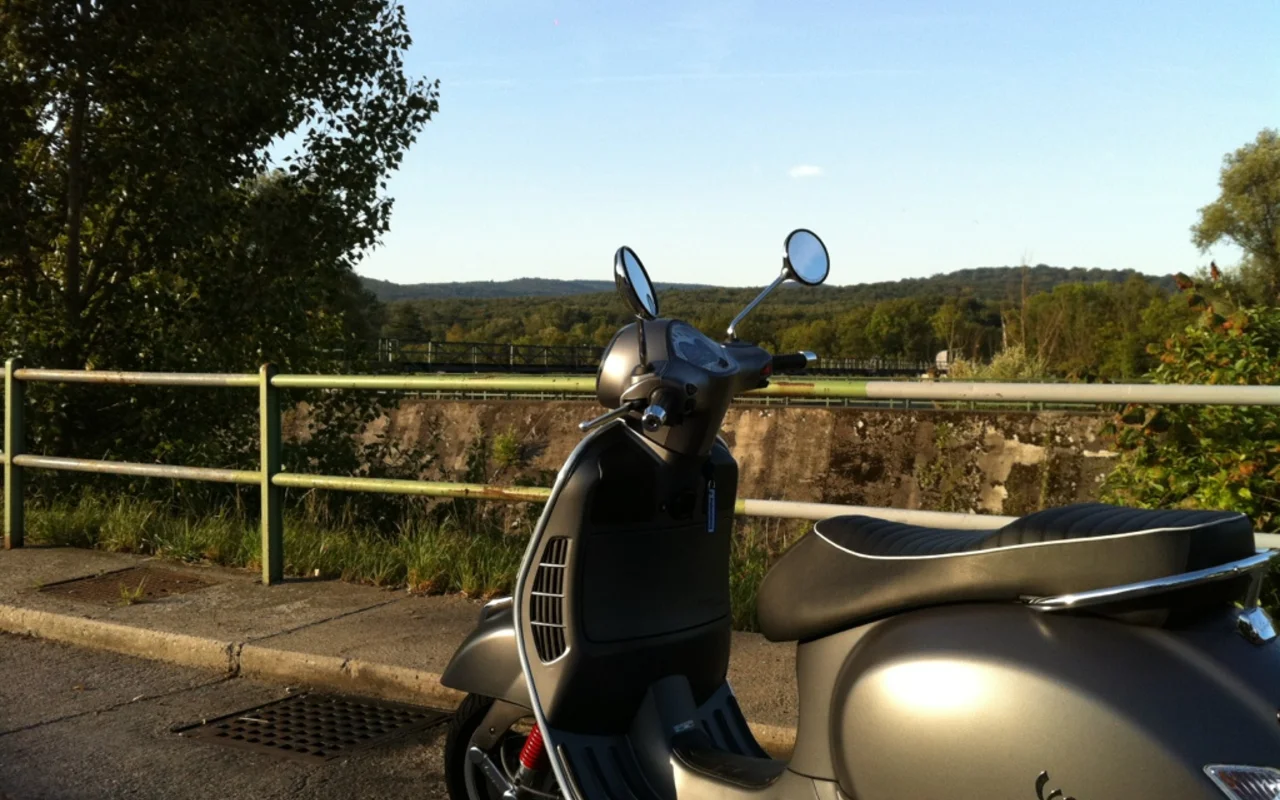

2011 Vespa GTS 300 Super View specs →

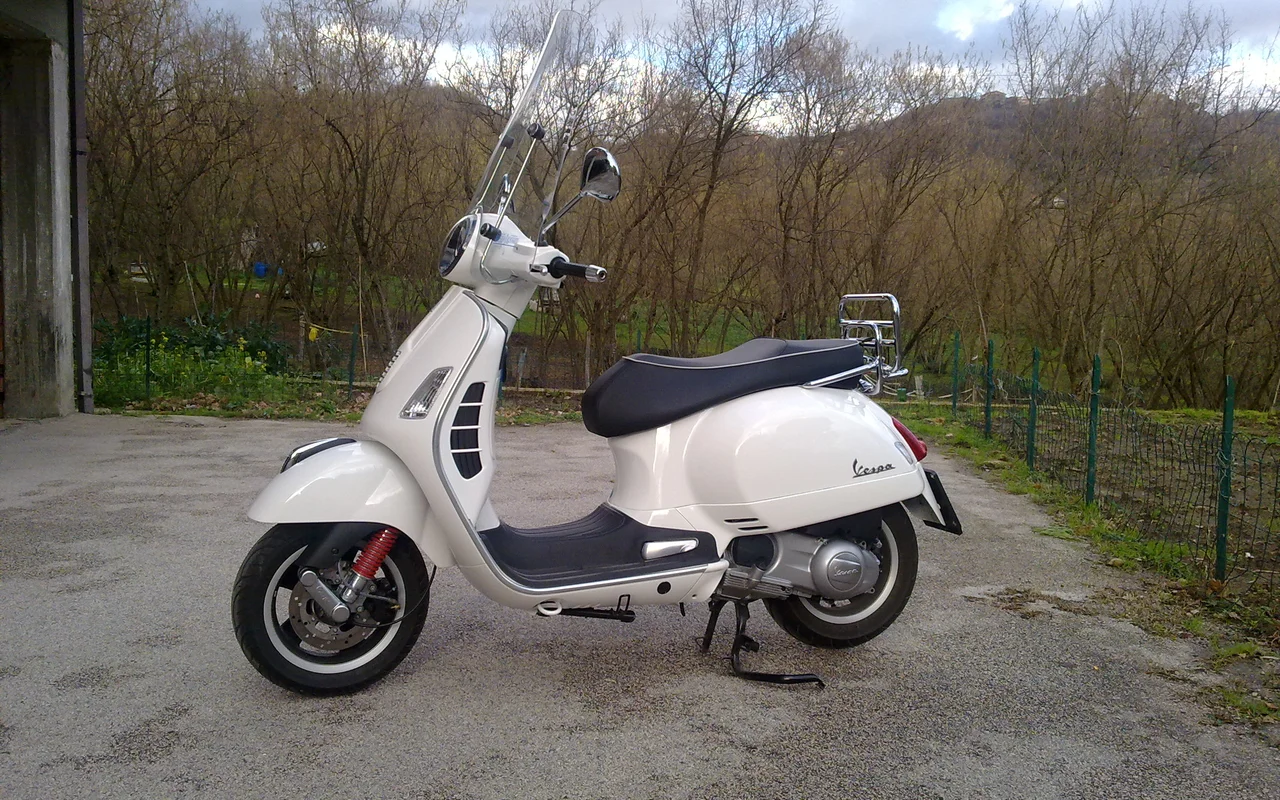

2010 Vespa GTS 300 Super View specs →

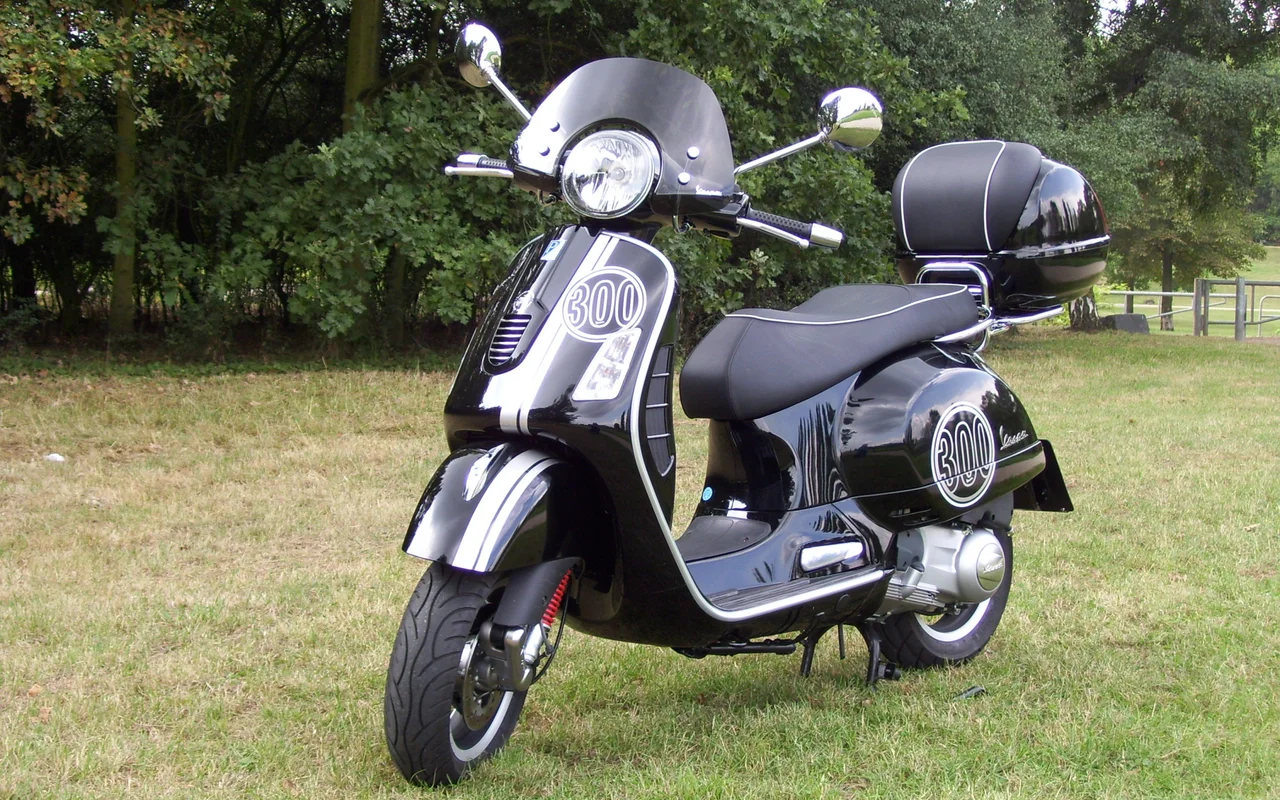

2009 Vespa GTS 300 Super View specs →

Spec Evolution

How key specs changed across production years.

Specification	2009	2010	2011	2012	2015	2016
Engine Type	Single cylinder	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke
CO2	-	-	80.7 CO	80.7 CO	78.0 CO2 g/km. (CO2 - Carbon dioxide emission) ↓	68.2 CO2 g/km. (CO2 - Carbon dioxide emission) ↓
Brakes - Rear Diameter (mm)	220 mm	220 mm	200 mm ↓	200 mm	220 mm ↑	220 mm
Brakes - Rear Diameter (in.)	8.7 inches	8.7 inches	7.9 inches ↓	7.9 inches	8.7 inches ↑	8.7 inches
Brakes - Front Diameter (mm)	220 mm	220 mm	200 mm ↓	200 mm	220 mm ↑	220 mm
Brakes - Front Diameter (in.)	8.7 inches	8.7 inches	7.9 inches ↓	7.9 inches	8.7 inches ↑	8.7 inches
Bore x Stroke (mm)	-	-	53.0 x 53.0 mm	75.0 x 63.0 mm ↑	75.0 x 63.0 mm	75.0 x 63.0 mm
Bore x Stroke (in,)	-	-	2.1 x 2.1 inches	3.0 x 2.5 inches ↑	3.0 x 2.5 inches	3.0 x 2.5 inches
Dry Weight	158 kg / 348.3 lbs	158 kg / 348.3 lbs	147.9 kg / 326.0 lbs ↓	148 kg / 326.3 lbs ↑	158 kg / 348.3 lbs ↑	158 kg / 348.3 lbs
Brakes - Front	Single disc	Single disc	Single disc	Single disc	Single disc. ABS	Single disc. ABS. Hydraulic.
Brakes - Rear	Single disc	Single disc	Single disc	Single disc	Single disc. ABS	Single disc. ABS. Hydraulic.
Fuel Capacity	9.20 litres / 2.43 gallons	9.20 litres / 2.43 gallons	9.20 litres / 2.43 gallons	9.20 litres / 2.43 gallons	9.08 litres / 2.40 gallons ↓	9.08 litres / 2.40 gallons
Suspension - Front	Single-sided trailing arm with dual chamber hydraulic shock absorber with coaxial spring.	Single-sided trailing arm with dual chamber hydraulic shock absorber with coaxial spring.	Single-sided trailing arm with dual chamber hydraulic shock absorber with coaxial spring.	Single-sided trailing arm with dual chamber hydraulic shock absorber with coaxial spring.	Single arm, dual chamber hydraulic shock absorber with coaxial spring	Single arm, dual chamber hydraulic shock absorber with coaxial spring
Suspension - Rear	Two dual effect shock absorbers with adjustable preload.	Two dual effect shock absorbers with adjustable preload.	Two dual effect shock absorbers with adjustable preload.	Two dual effect shock absorbers with adjustable preload.	Two dual effect shock absorbers with adjustable preload	Two dual effect shock absorbers with adjustable preload
Fuel System	Injection	Injection	Injection	Injection	Injection	Injection. Port injection
Colours	Montebianco, Nero Lucido	Nero Lucido, Giallo Lime, Montebianco	Black, Gray, White, Dragon Red	Black, Gray, White, Dragon Red	Blue, Purple, White	Purple, white
Clutch	Dry, centrifugal type	Dry, centrifugal type	Dry, centrifugal type	Dry, centrifugal type	Automatic dry centrifugal clutch with vibration dampers	Automatic dry centrifugal clutch with vibration dampers
Height	730 mm / 28.7 in.	730 mm / 28.7 in.	730 mm / 28.7 in.	1,300 mm / 51.2 in. ↓	-	-
Length	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	1,928 mm / 75.9 in. ↓	1,928 mm / 75.9 in.
Warranty	-	-	1 year/5000 miles limited warranty.	-	2-year unlimited-mileage warranty.	2 years, unlimited mileage
Emissions	-	-	EPA and CARB	Euro 3, EPA and CARB	Catalyzed. EPA and CARB.	Catalyzed.
Width	755 mm / 29.7 in.	755 mm / 29.7 in.	755 mm / 29.7 in.	755 mm / 29.7 in.	-	754 mm / 29.7 in.
Primary Drive	-	-	With reverse	4x4. Gear Selection L/H/N/R. CVT Automatic.	-	-
Fuel Consumption	-	-	3.48 litres/100 km (28.7 km/l or 67.59 mpg)	3.48 litres/100 km (28.7 km/l or 67.59 mpg)	3.36 litres/100 km (29.8 km/l or 70.01 mpg) ↓	2.94 litres/100 km (34.0 km/l or 80.01 mpg) ↓
Ignition	Electronic by capacitive discharge (CDI)	Electronic by capacitive discharge (CDI)	Electronic by capacitive discharge (CDI)	Electronic by capacitive discharge (CDI)	Electronic by capacitive discharge (CDI)	CDI
Max Torque	-	-	22.30 Nm (2.3 kgf-m or 16.4 ft.lbs) @ 5000	22.30 Nm (2.3 kgf-m or 16.4 ft.lbs) @ 5000	22.30 Nm (2.3 kgf-m or 16.4 ft.lbs) @ 5000 Revolutions	22.30 Nm (2.3 kgf-m or 16.4 ft.lbs) @ 5000 Revolutions
Power-to-Weight Ratio	-	-	-	0.1432 HP/kg	0.1335 HP/kg	0.1335 HP/kg
