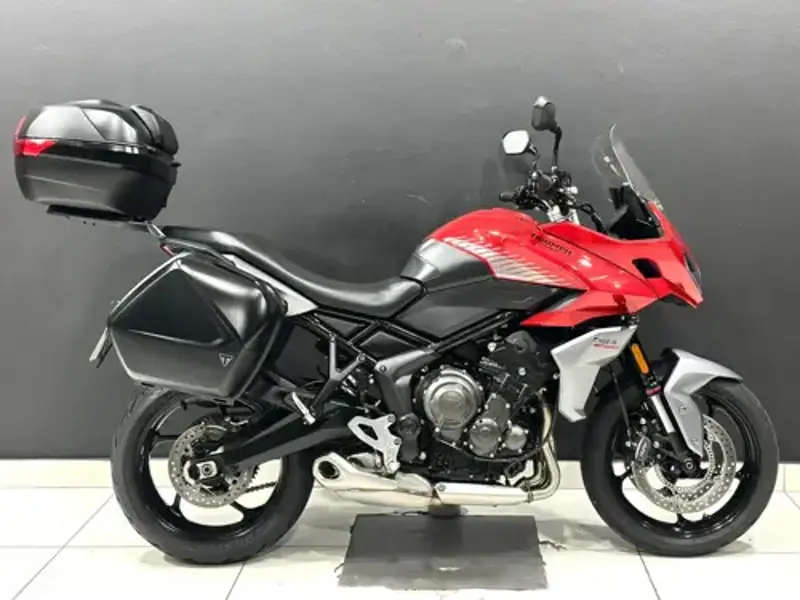

Triumph Tiger Sport 660 Specs
2022
• 1 variants
First introduced in 2022, the Triumph Tiger Sport 660 is a sport tourer that has seen 1 variant. Peak output is rated at 46 hp. It delivers 59 Nm of torque.
About the Triumph Tiger Sport 660
Documented here are the full technical specifications for the Triumph Tiger Sport 660, a Sport touring motorcycle with a production run from 2022 to 2026. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.
Triumph Tiger Sport 660 by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2022
|
2026
|
|
Brakes - Front
|
2x 310mm discs, Nissin 2-piston sliding calipers | 2 x 310mm discs, Nissin 2-piston sliding calipers |
|
Fuel Capacity
|
17.2 Litres / 4.5 US gal | 18.6 Litres / 4.9 US gal ↑ |
|
Height
|
1398 mm / 55 in - 1315mm / 51.7 in (high / low screen position) | 1395 mm / 54.9 in - 1312mm / 51.65 in (high / low screen position) ↓ |
|
Length
|
2071 mm / 81.5 in | 2069 mm / 81.5 in ↓ |
|
Compression Ratio
|
11.95:1 | 12:1 ↑ |
|
Wet Weight
|
206 kg / 454 lbs | 211 kg / 465 lbs ↑ |
|
Width
|
834 mm / 32.8 in | 828 mm / 32.6 in ↓ |
|
Max Power
|
46 hp / 35 kW @ 8750 rpm | 95 hp / 70 kW @ 11250 rpm ↑ |
|
Max Torque
|
59 Nm / 43.5 lb-ft @ 5250 rpm | 68 Nm / 50.2 lb-ft @ 8250 rpm ↑ |
