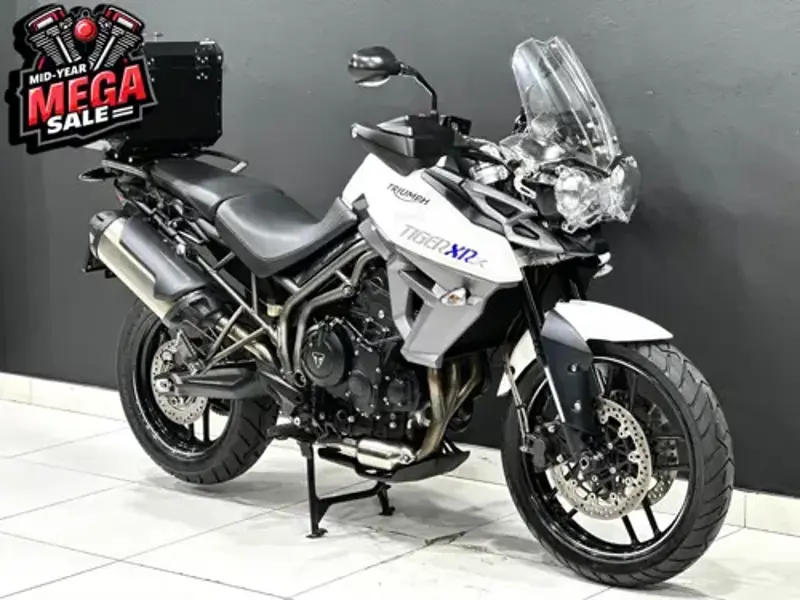

2016 Triumph Tiger 800 XRx Overview
Triumph Tiger 800 XRx is an enduro / off-road motorcycle, displacing 799 cc. Power comes from a Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder engine, a compression ratio of 11.3:1. On the performance side, it delivers 70.8 KW @ 9250 rpm of peak power and 79 Nm @ 7950 rpm of torque. On the road, the 2016 Tiger 800 XRx tips the scales at 191 kg, carries a 19-litre fuel tank, offers a seat height of 810 mm - 830 mm and spans a 1545 mm wheelbase. That's roughly 7.8 kg lighter than the average enduro / off-road motorcycle in our database. The full 2016 Triumph Tiger 800 XRx spec sheet below covers every technical detail, from suspension travel to tyre sizes.
2016 Tiger 800 XRx - Pros & Cons
Strengths
-
⚡
Strong power output: With 70.8 KW @ 9250 rpm and 79 Nm @ 7950 rpm of torque on tap, the Tiger 800 XRx is no slouch for its class.
-
🔧
Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
-
⛽
Large fuel range: A 19-litre tank means fewer stops on longer rides - a genuine plus for touring or a lengthy daily commute.
Considerations
-
⚙️
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.
Wear Points & Servicing Notes
Cooling system servicing
Tiger 800 XRx's Liquid cooled setup is low-maintenance provided the coolant interval is kept - old, acidic coolant is the main cause of long-term corrosion in the water passages.
Fuelling & injector care
The Multipoint sequential electronic fuel injection on the Tiger 800 XRx needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.
Brake disc and pad wear
Braking up front comes from 2 x 308 mm floating discs, Nissin 2-piston sliding caliper, switchable ABS - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.
Suspension condition on used examples
The Tiger 800 XRx's suspension runs Showa 43mm upside down forks at the front. The rear uses Showa monoshock with hydraulically adjustable preload. Fork-seal condition and rear linkage play are the two things worth checking before buying used.
Final drive maintenance
The Tiger 800 XRx uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.
Frame & chassis check
Built around a Tubular steel trellis frame, swingarm: twin-sided, cast aluminum alloy, the Tiger 800 XRx's chassis is straightforward to inspect: look for corrosion, cracks or repair welds around stress points like the head-stock and swingarm mounts.
Tiger 800 XRx - Buying & Maintenance Guide
What to check before buying
Before handing over money for a used 2016 Triumph Tiger 800 XRx, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy Tiger 800 XRx should catch quickly and settle into a smooth idle.
Oil and filter changes
Nothing protects a Tiger 800 XRx's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.
Fuel system care
Fuel injection on the Tiger 800 XRx needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.
2016 Triumph Tiger 800 XRx - Frequently Asked Questions
What engine does the 2016 Triumph Tiger 800 XRx have?
The 2016 Triumph Tiger 800 XRx uses a Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder. engine with 799 cc of displacement. It is liquid cooled.
How much does the 2016 Triumph Tiger 800 XRx weigh?
The 2016 Triumph Tiger 800 XRx weighs 191 kg. This is the manufacturer's dry figure.
How much power does the 2016 Triumph Tiger 800 XRx make?
The 2016 Triumph Tiger 800 XRx produces 70.8 KW @ 9250 rpm of power and 79 Nm @ 7950 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2016 Triumph Tiger 800 XRx?
The 2016 Triumph Tiger 800 XRx has a 19-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 316-380 km between stops.
Is the 2016 Triumph Tiger 800 XRx suitable for shorter riders?
The 2016 Triumph Tiger 800 XRx has a seat height of 810 mm - 830 mm. This is a moderate seat height that suits a wide range of rider heights.
What brakes does the 2016 Triumph Tiger 800 XRx have?
The 2016 Triumph Tiger 800 XRx uses 2 x 308 mm floating discs, Nissin 2-piston sliding caliper, switchable ABS at the front and Single 255 mm disc, Nissin single-piston sliding caliper, switchable ABS at the rear.
What tyre sizes does the 2016 Triumph Tiger 800 XRx use?
The 2016 Triumph Tiger 800 XRx runs 100/90-19 front and 150/70 R17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2016 Triumph Tiger 800 XRx have?
The 2016 Triumph Tiger 800 XRx is fitted with a 6 Speed transmission.
Triumph Tiger 800 XRx Spec Evolution
The Triumph Tiger 800 XRx was produced across 3 model years (2016-2019). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2016 |
2018 |
2019 |
| Dry Weight |
191 kg / 421 lbs |
199 kg / 438.7 lbs |
199 kg / 438.7 lbs |
| Wheelbase |
1545 mm / 60.8 in |
1530 mm / 60.2 in |
1530 mm / 60.2 in |
| Exhaust |
Stainless Steel, 3 into 1, high-level stainless steel silencer |
Stainless steel 3 into 1 header system, side mounted stainless steel silencer |
Stainless steel 3 into 1 header system, side mounted stainless steel silencer |
Key Specifications
Engine
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Power
70.8 KW / 95 hp @ 9250 rpm
Torque
79 Nm / 8.1 kgf-m / 58 ft.lb @ 7950 rpm
Top Speed
Not published by manufacturer
Fuel Capacity
19 Litres / 5.0 US gal / 4.2 Imp gal
Advertisement
Full 2016 Triumph Tiger 800 XRx Specifications
Year
2015 - 16
Make Model
Triumph Tiger 800 XRx
Seat Height
810 mm - 830 mm / 31.8 in- 32.6 in adjustable
Wheelbase
1545 mm / 60.8 in
Height
1350 mm / 53.1 in (without mirrors)
Length
2215 mm / 87.1in
Width
795 mm / 31.3 in (with handlebars)
Dry Weight
191 kg / 421 lbs
Fuel Capacity
19 Litres / 5.0 US gal / 4.2 Imp gal
Oil Capacity
3.7 L / 0.98 US gal / 0.81 Imp gal
Displacement
799 cc / 48.7 cub in
Engine Detail
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Bore x Stroke
74 x 61.9 mm
Compression Ratio
11.3:1
Cooling System
Liquid cooled
Exhaust
Stainless Steel, 3 into 1, high-level stainless steel silencer
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital CDI
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate
Final Drive
Chain, O-ring
Transmission / Drive
6 Speed
Frame Type
Tubular steel trellis frame, swingarm: twin-sided, cast aluminum alloy
Suspension - Front
Showa 43mm upside down forks
Suspension - Rear
Showa monoshock with hydraulically adjustable preload
Rake
23.9°
Trail
92.4 mm / 3.64 in
Wheel Travel - Front
180 mm / 7.1 in
Wheel Travel - Rear
170 mm / 6.7 in
Brakes - Front
2 x 308 mm floating discs, Nissin 2-piston sliding caliper, switchable ABS
Brakes - Rear
Single 255 mm disc, Nissin single-piston sliding caliper, switchable ABS
Tyres - Front
100/90-19
Tyres - Rear
150/70 R17
Wheels - Front
Cast aluminium, 10-spoke, 19 x 2.50
Wheels - Rear
Cast aluminium, 10-spoke, 17 x 4.25
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
