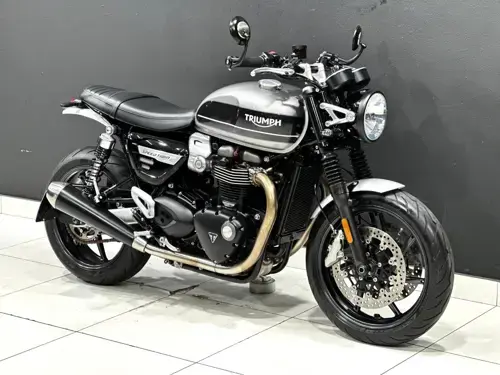

Triumph Speed Twin Specs
2019 - 2020
• 1 variants
The Triumph Speed Twin is a naked bike produced from 2019 to 2020 across 1 variant. It is powered by a four stoke, parallel twin, 270° crank, sohc, 4 valve per cylinder. Peak power output is 96 hp. Peak torque is 112.5 Nm.
About the Triumph Speed Twin
Documented here are the full technical specifications for the Triumph Speed Twin, a Naked bike motorcycle with a production run from 2019 to 2021. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.
Triumph Speed Twin by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2020
|
2021
|
|
Seat Height
|
807 mm / 31.8 in | 809 mm / 31.8 in ↑ |
|
Displacement
|
1198 cc / 73.1 cu in | 1198 cc / 73.1 cu-in |
|
Frame Type
|
Tubular steel with aluminum cradle | Tubular steel with steel cradles |
|
Brakes - Front
|
2 x 305 mm discs, Brembo 4-piston fixed calipers, ABS | 2 x 320 mm discs, Brembo M50 4 piston radial monobloc calipers |
|
Wheelbase
|
1430 mm / 56.3 in | 1413 mm / 55.6 in ↓ |
|
Engine Detail
|
Four stoke, parallel twin, 270o crank, SOHC, 4 valve per cylinder | Four stoke, parallel twin, 270° crank, SOHC, 4 valve per cylinder |
|
Brakes - Rear
|
Single 220 mm disc, Nissin 2-piston floating caliper, ABS | Single 220 mm disc, Nissin 2-piston floating caliper |
|
Suspension - Front
|
41mm cartridge forks | 43mm USD Marzocchi forks ↑ |
|
Suspension - Rear
|
Twin-sided, aluminum swingarm, twin shocks with adjustable preload | Twin RSUs with adjustable preload |
|
Final Drive
|
Chain, X-ring | Chain, O-ring |
|
Height
|
1110 mm / 43.7 in | 1097 mm / 43.2 in ↓ |
|
Compression Ratio
|
11.0:1 | 12.1:1 ↑ |
|
Width
|
760 mm / 29.9 in | 778 mm / 30.6 in ↑ |
|
Rake
|
22.8o | 22.3° ↓ |
|
Wheels - Front
|
Cast aluminum alloy 7-spoke 17 x 3.5 in | Cast aluminium alloy 17 x 3.5 ↑ |
|
Wheels - Rear
|
Cast aluminum alloy 7-spoke 17 x 5 in | Cast aluminium alloy 17 x 5.0 ↑ |
|
Trail
|
93.5 mm / 3.6 in | 91.5 mm / 3.6 in ↓ |
|
Max Power
|
71.5 kW / 96 hp @ 6750 rpm | 73.6 kW / 98.6 hp @ 7250 rpm ↑ |
|
Max Torque
|
112.5 Nm / 83 lb-ft @ 4950 rpm | 112.5 Nm / 83 lb-ft @ 4250 rpm |
