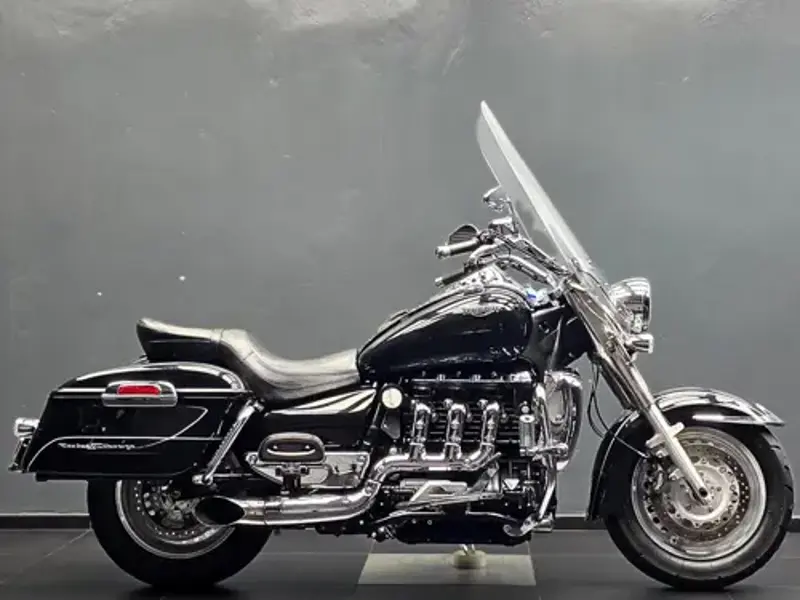

Triumph Rocket III Touring Specs

2010 - 2011 • 1 variants

First introduced in 2010, the Triumph Rocket III Touring is a cruiser that has seen 1 variant through 2011. The engine is a four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder. Peak output is rated at 105.9 hp. It delivers 203 Nm of torque.

About the Triumph Rocket III Touring

The Triumph Rocket III Touring is a Custom / cruiser motorcycle from Triumph, produced from 2008 to 2016. This page provides a comprehensive technical reference for the Triumph Rocket III Touring, covering all available specification data including engine configuration, displacement, power output, dimensions, weight, and chassis details. Use the year selector above to find specifications for a specific model year. All data is sourced from manufacturer specifications and is intended as a technical reference for riders, mechanics, and enthusiasts.

Triumph Rocket III Touring by Year

2011 Triumph Rocket III Touring View specs →

Spec Evolution

How key specs changed across production years.

Specification	2009	2011	2012	2013	2014	2016
Displacement	2294 cc / 140 cu in	2294 cc / 140 cu in	2294 cc / 140 cu in	2294 cc / 140 cu in	2294 cc / 140 cu in	2294 cc / 140 cub in
Frame Type	Tubular steel, twin spine	Tubular steel, twin spine	Tubular steel, twin spine	Tubular steel, twin spine	Tubular steel, twin spine	Tubular steel, twin spine, swingarm twin-sided, steel
Brakes - Front	2 x 320 mm Discs, 4 piston calipers	2 x 320 mm Discs, 4 piston calipers	2 x 320 mm Foating discs, 4 piston calipers, Nissen, ABS	2 x 320 mm Foating discs, 4 piston calipers, Nissen, ABS	2 x 320 mm Foating discs, 4 piston calipers, Nissen, ABS	2 x 320 mm floating discs, Nissin 4-piston fixed caliper, ABS
Wheelbase	1705 mm / 67.2 in	1705 mm / 67.2 in	1705 mm / 67.2 in	1705 mm / 67.2 in	1705 mm / 67.2 in	1705 mm / 67.1 in
Engine Detail	Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder	Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder	Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder	Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder	Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder	Four stroke, 3-cylinder, DOHC, 12 valves ↓
Brakes - Rear	Single 316 mm disc, 2 piston caliper	Single 316 mm disc, 2 piston caliper	Single 316 mm disc, 2 piston floating caliper, Brembo, ABS	Single 316 mm disc, 2 piston floating caliper, Brembo, ABS	Single 316 mm disc, 2 piston floating caliper, Brembo, ABS	Single 316 mm disc, Brembo 2 piston floating caliper, ABS
Fuel Capacity	22.3 Litres / 5.9 US gal / 4.9 Imp gal	22.3 Litres / 5.9 US gal / 4.9 Imp gal	22.3 Litres / 5.9 US gal / 4.9 Imp gal	22.3 Litres / 5.9 US gal / 4.9 Imp gal	22.3 Litres / 5.9 US gal / 4.9 Imp gal	22.3 Litres / 5.9 US gal
Suspension - Front	43mm Upside down forks	43mm Upside down forks	43mm Upside down forks, Kayaba	43mm Upside down forks, Kayaba	43mm Upside down forks, Kayaba	Kayaba 43mm upside down forks
Suspension - Rear	Chromed spring twin shocks with adjustable preload	Chromed spring twin shocks with adjustable preload	Chromed spring twin shocks with adjustable preload, Kayaba	Chromed spring twin shocks with adjustable preload, Kayaba	Chromed spring twin shocks with adjustable preload, Kayaba	Kayaba black spring twin shocks with 5 position adjustable preload
Clutch	Wet, multi-plate	Wet, multi-plate	Wet, multi-plate	Wet, multi-plate	Wet, multi-plate	Wet, multi plate
Height	1182 / 46.5 in (excluded quick release screen & mirrors)	1182 / 46.5 in (excluded quick release screen & mirrors)	1182 / 46.5 in (excluded quick release screen & mirrors)	1182 / 46.5 in (excluded quick release screen & mirrors)	1182 / 46.5 in (excluded quick release screen & mirrors)	1182 mm / 46.5 in excluded quick release screen & mirrors
Length	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in including levers (widest fixed part)
Tyres - Front	150/80 -R16	150/80 -R16	150/80 -R16	150/80 -R16	150/80 -R16	150/80 R16
Width	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in (including levers (widest fixed part)	995 mm / 39.1 in including levers (widest fixed part)
Tyres - Rear	180/70 -R16	180/70 -R16	180/70 -R16	180/70 -R16	180/70 -R16	180/70 R16
Wheels - Front	Alloy 25-spoke, 17 x 3.5in	Alloy 25-spoke, 17 x 3.5in	Alloy 25-spoke, 17 x 3.5in	Alloy 25-spoke, 17 x 3.5in	Alloy 25-spoke, 17 x 3.5in	Cast aluminium alloy, 25-spoke, 16 x 3.5 in
Wheels - Rear	Alloy 25-spoke, 16 x 7.5in	Alloy 25-spoke, 16 x 7.5in	Alloy 25-spoke, 16 x 7.5in	Alloy 25-spoke, 16 x 7.5in	Alloy 25-spoke, 16 x 7.5in	Cast aluminium alloy, 25-spoke, 16 x 5.0 in
Fuel Induction	Multipoint sequential electronic fuel injection	Multipoint sequential electronic fuel injection	Multipoint sequential electronic fuel injection	Multipoint sequential electronic fuel injection	Multipoint sequential electronic fuel injection	Multipoint sequential electronic fuel injection with twin butterflies and progressive linkage on primary butterflies
Trail	152 mm / 6.0 in	152 mm / 6.0 in	152 mm / 6.0 in	152 mm / 6.0 in	152 mm / 6.0 in	184 mm / 7.2 in ↑
Ignition	Digital inductive type via electronic engine management	Digital inductive type via electronic engine management	Digital inductive type via electronic engine management	Digital inductive type via electronic engine management	Digital inductive type via electronic engine management	Digital inductive type via electronic engine management
Max Torque	203Nm / 200.7 kgf-m / 150 ft.lbs @ 2500 rpm	203Nm / 200.7 kgf-m / 150 ft.lbs @ 2500 rpm	203Nm / 200.7 kgf-m / 150 ft.lbs @ 2500 rpm	203Nm / 200.7 kgf-m / 150 ft.lbs @ 2500 rpm	203Nm / 200.7 kgf-m / 150 ft.lbs @ 2500 rpm	203 Nm / 20.7 kgf-m / 150 ft.lbs @ 2500 rpm
