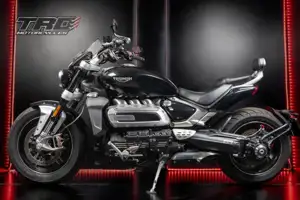

First introduced in 2020, the Triumph Rocket 3 R is a cruiser that has seen 1 variant. The engine is a four stroke, inline 3-cylinder, DOHC. Peak output is rated at 165 hp. It delivers 221 Nm of torque.
About the Triumph Rocket 3 R
As a Custom / cruiser motorcycle, the Triumph Rocket 3 R was offered from the 2020 through to the 2024 model year. The technical data presented here covers the complete specification range for this model, including all engine variants, chassis dimensions, suspension travel, brake specifications, and weight figures. This information is useful for prospective buyers, current owners, and mechanics working on the Triumph Rocket 3 R.
Triumph Rocket 3 R by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2020
|
2024
|
|
Seat Height
|
773 mm / 30.6 in | 773 mm / 30.4 in |
|
Displacement
|
2458 cc / 150 cub in | 2458 cc / 150 cu-in |
|
Fuel Capacity
|
18 Litres / 4.7 US gal | 18 Litres / 4.76 US gal |
|
Suspension - Front
|
Showa 47mm upside-down 1+1 cartridge front forks, compression and rebound adjuster | Showa 47mm upside-down 1+1 cartridge front forks, compression and rebound adjustement |
|
Suspension - Rear
|
Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster | Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjustement |
|
Height
|
1065 mm / 41.9 in | 1125 mm / 44.3 in (with mirrors) ↑ |
|
Width
|
889 mm / 35 in | 920 mm / 36 in (with handlebars) ↑ |
|
Max Power
|
123 kW / 165 hp @ 6000 rpm | 134 kW / 180 hp @ 7000 rpm ↑ |
|
Max Torque
|
221 Nm / 163 ft-lb @ 4000 rpm | 225 Nm / 166 ft-lb @ 4000 rpm ↑ |
