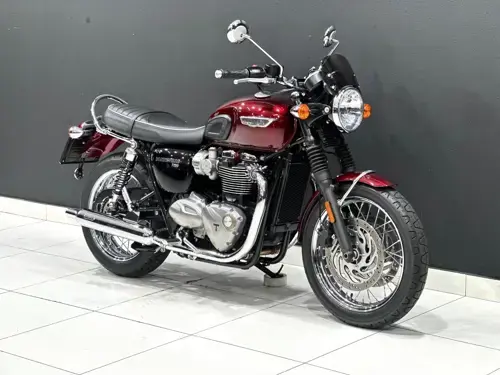

2017 Triumph Bonneville T120 Specifications

Name: 2017 Triumph Bonneville T120
Brand: Triumph

No images available

Tap to enlarge

2017 Triumph Bonneville T120 Overview

The 2017 Triumph Bonneville T120 is a naked bike motorcycle built around 1198 cc of displacement. Under the tank sits a Four stoke, parallel twin, 270o crank, SOHC 4 valves per cylinder engine, a compression ratio of 10.0:1. 2017 Triumph Bonneville T120 delivers 59 kW @ 6550 rpm of peak power and 105 Nm @ 3100 rpm of torque. From a practical standpoint, the 2017 Bonneville T120 tips the scales at 224 kg, carries a 14.4-litre fuel tank, offers a seat height of 785 mm and spans a 1445 mm wheelbase. Scroll down for the complete 2017 Triumph Bonneville T120 spec sheet covering every technical detail from suspension travel to tyre sizes.

2017 Bonneville T120 - Pros & Cons

Strengths

Strong power output: 2017 Triumph Bonneville T120 makes 59 kW @ 6550 rpm with 105 Nm @ 3100 rpm of torque - competitive figures for its class.

Considerations

Age-related wear: As with any used Bonneville T120, a thorough pre-purchase inspection covering consumables, service history and tyres is always recommended.

Owner Experiences & Common Issues

Low-speed confidence

At 224 kg, the Bonneville T120 is a substantial machine. New owners occasionally mention that slow-speed manoeuvring in car parks takes a little getting used to. Once moving, the weight disappears - but practising slow-speed exercises builds confidence quickly.

Bonneville T120 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2017 Triumph Bonneville T120, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Bonneville T120 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any Bonneville T120. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

2017 Triumph Bonneville T120 - Frequently Asked Questions

What engine does the 2017 Triumph Bonneville T120 have?

The 2017 Triumph Bonneville T120 uses a Four stoke, parallel twin, 270o crank, SOHC 4 valves per cylinder engine with 1198 cc of displacement. It is liquid cooled.

How much does the 2017 Triumph Bonneville T120 weigh?

The 2017 Triumph Bonneville T120 weighs 224 kg. This is the manufacturer's dry figure.

How much power does the 2017 Triumph Bonneville T120 make?

The 2017 Triumph Bonneville T120 produces 59 kW @ 6550 rpm of power and 105 Nm @ 3100 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2017 Triumph Bonneville T120?

The 2017 Triumph Bonneville T120 has a 14.4-litre fuel tank.

Is the 2017 Triumph Bonneville T120 suitable for shorter riders?

The 2017 Triumph Bonneville T120 has a seat height of 785 mm. This is a moderate seat height that suits a wide range of rider heights.

What brakes does the 2017 Triumph Bonneville T120 have?

The 2017 Triumph Bonneville T120 uses 2 x 310 mm discs, 2 piston floating Nissin calipers at the front and Single 255 mm disc, 2 piston floating Nissin caliper at the rear.

What tyre sizes does the 2017 Triumph Bonneville T120 use?

The 2017 Triumph Bonneville T120 runs 100/90-18 front and 150/70 R17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2017 Triumph Bonneville T120 have?

The 2017 Triumph Bonneville T120 is fitted with a 6-Speed transmission.

Triumph Bonneville T120 Spec Evolution

The Triumph Bonneville T120 was produced across 4 model years (2017-2021). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2017	2018	2020	2021
Max Power	59 kW / 80 hp @ 6550 rpm	59 kW / 80 hp @ 6550 rpm	59 kW / 80 hp @ 6550 rpm	58.8 kW / 78.9 hp @ 6550 rpm
Engine Detail	Four stoke, parallel twin, 270o crank, SOHC 4 valves per cylinder	Four stoke, parallel twin, 270o crank, SOHC 4 valves per cylinder	Four stoke, parallel twin, 270o crank, SOHC 4 valves per cylinder	Four stoke, parallel twin, 270° crank, SOHC 4 valves per cylinder
Seat Height	785 mm / 30.9 in	785 mm / 30.9 in	785 mm / 30.9 in	790 mm / 31.1 in
Fuel Capacity	14.4 Litres / 3.8 US gal / 3.2 Imp gal	14.4 Litres / 3.8 US gal / 3.2 Imp gal	14.4 Litres / 3.8 US gal / 3.2 Imp gal	14.5 Litres / 3.8 US gal
Frame Type	Dual tubular steel cradle	Dual tubular steel cradle	Dual tubular steel cradle	Tubular steel, twin cradle
Wheelbase	1445 mm / 56.9 in	1445 mm / 56.9 in	1445 mm / 56.9 in	1450 mm / 57.1 in
Brakes - Front	2 x 310 mm discs, 2 piston floating Nissin calipers	2 x 310 mm discs, 2 piston floating Nissin calipers	2 x 310 mm discs, 2 piston floating Nissin calipers	2 x 310mm discs, Brembo 2 piston floating caliper
Brakes - Rear	Single 255 mm disc, 2 piston floating Nissin caliper	Single 255 mm disc, 2 piston floating Nissin caliper	Single 255 mm disc, 2 piston floating Nissin caliper	Single 255mm disc, Nissin 2 piston floating caliper
