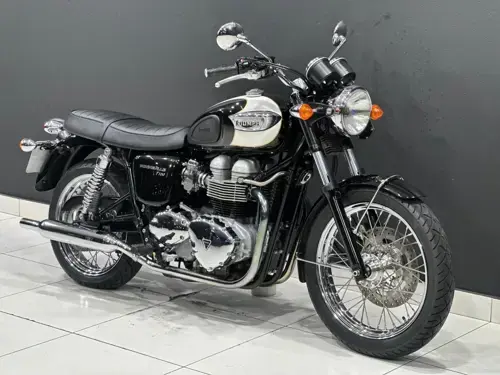

Triumph Bonneville T100 Specs

2007 - 2008 • 1 variants

First introduced in 2007, the Triumph Bonneville T100 is a naked bike that has seen 1 variant through 2008. The engine is a four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder. Peak output is rated at 67 hp. It delivers 69 Nm of torque.

About the Triumph Bonneville T100

The Bonneville T100 represents Triumph's contribution to the Naked bike motorcycle segment, spanning the 2003 to 2026 production run. Our database contains detailed technical specifications for each model year, covering powertrain details, chassis geometry, suspension and braking systems, fuel capacity, and certified weight figures. Use the year navigation above to drill into year-specific data. All specifications are referenced from official Triumph documentation.

Triumph Bonneville T100 by Year

2008 Triumph Bonneville T100 View specs →

Spec Evolution

How key specs changed across production years.

Specification	2006	2008	2009	2010	2011	2012	2013	2014	2016	2018	2020	2021	2026
Frame Type	Tubular steel cradle, swingarm twin-sided, tubular steel	Tubular steel cradle, swing arm: twin-sided, tubular steel	Tubular steel cradle, swing arm: twin-sided, tubular steel	Tubular steel cradle, swing arm: twin-sided, tubular steel	Tubular steel cradle, swing arm: twin-sided, tubular steel	Tubular steel cradle, swing arm: twin-sided, tubular steel	Tubular steel cradle, swing arm: twin-sided, tubular steel	Tubular steel cradle, swing arm: twin-sided, tubular steel	Tubular steel cradle, swing arm: twin-sided, tubular steel	Tubular steel cradle	Tubular steel cradle	Tubular steel, twin cradle	Tubular steel, twin cradle
Displacement	790 cc / 48.2 cu in	865 cc / 52.8 cu in ↑	865 cc / 52.8 cu in	865 cc / 52.8 cu in	865 cc / 52.8 cu in	865 cc / 52.8 cu in	865 cc / 52.8 cu in	865 cc / 52.8 cu in	865 cc / 52.8 cu in	900 cc / 54.9 cu in ↑	900 cc / 54.9 cu in	900 cc / 54.9 cu in	900 cc / 54.9 cu-in
Seat Height	775 mm / 30.5 in	775 mm / 30.5 in	775 mm / 30.5 in	775 mm / 30.5 in	775 mm / 30.5 in	775 mm / 30.5 in	775 mm / 30.5 in	775 mm / 30.5 in	775 mm / 30.5 in	790 mm / 31.1 in ↑	790 mm / 31.1 in	790 mm / 31.1 in	790 mm / 31.1 in
Dry Weight	205 kg / 451 lbs	205 kg / 451 lbs	205 kg / 451 lbs	205 kg / 451 lbs	205 kg / 451 lbs	205 kg / 451 lbs	205 kg / 451 lbs	205 kg / 451 lbs	205 kg / 451 lbs	213 kg / 470 lbs ↑	213 kg / 470 lbs	-	-
Engine Detail	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 270° Crank angle parallel twin, SOHC, 8 valves ↑	Four stroke, 270° Crank angle parallel twin, SOHC, 8 valves	Four stroke, 270° Crank angle parallel twin, SOHC, 4 valves per cylinder	Four stroke, 270° Crank angle parallel twin, SOHC, 4 valves per cylinder
Wheelbase	1493 mm / 58.8 in	1493 mm / 58.8 in	1493 mm / 58.8 in	1493 mm / 58.8 in	1493 mm / 58.8 in	1493 mm / 58.8 in	1500 mm / 59.0 in ↑	1500 mm / 59.0 in	1500 mm / 59.0 in	1450 mm / 57.1 in ↓	1450 mm / 57.1 in	1450 mm / 57.1 in	1450 mm / 57.1 in
Brakes - Front	Single 310 mm disc, 2 piston caliper	Single 310 mm disc, 2 piston calipers	Single 310 mm disc, 2 piston calipers	Single 310 mm disc, 2 piston calipers	Single 310 mm disc, 2 piston calipers	Single 310 mm disc, 2 piston calipers	Single 310 mm disc, 2 piston floating calipers, Nissen	Single 310 mm disc, 2 piston floating calipers, Nissen	Single 310 mm disc, 2 piston floating calipers, Nissen	Single 310 mm disc, 2 piston floating calipers, Nissin	Single 310 mm disc, 2 piston floating calipers, Nissin	Single 310 mm floating disc, Brembo 2 piston axial caliper	Single 310 mm floating disc, Brembo 2 piston axial caliper
Fuel Capacity	16 Litres / 4.2 US gal / 3.5 Imp gal	16.6 Litres / 4.4 US gal / 3.7 Imp gal ↑	16.6 Litres / 4.4 US gal / 3.7 Imp gal	16.6 Litres / 4.4 US gal / 3.7 Imp gal	-	16.6 Litres / 4.4 US gal / 3.7 Imp gal	16.6 Litres / 4.4 US gal / 3.7 Imp gal	16.6 Litres / 4.4 US gal / 3.7 Imp gal	16.6 Litres / 4.4 US gal / 3.7 Imp gal	14.5 Litres / 3.8 US gal / 3.2 Imp gal ↓	14.5 Litres / 3.8 US gal / 3.2 Imp gal	14.5 Litres / 3.8 US gal	14.5 Litres / 3.8 US gal
Brakes - Rear	Single 255 mm disc, 2 piston caliper	Single 255 mm disc, 2 piston calipers	Single 255 mm disc, 2 piston calipers	Single 255 mm disc, 2 piston calipers	Single 255 mm disc, 2 piston calipers	Single 255 mm disc, 2 piston calipers	Single 255 mm disc, 2 piston floating calipers, Nissen	Single 255 mm disc, 2 piston floating calipers, Nissen	Single 255 mm disc, 2 piston floating calipers, Nissen	Single 255 mm disc, 2 piston floating calipers, Nissin	Single 255 mm disc, 2 piston floating calipers, Nissin	Single 255 mm	Single 255 mm
Suspension - Front	41mm Telescopic forks	41mm Kayaba telescopic forks	41mm Kayaba telescopic forks	41mm Kayaba telescopic forks	41mm Kayaba telescopic forks	41mm Kayaba telescopic forks	41mm Kayaba telescopic forks	41mm Kayaba telescopic forks	41mm Kayaba telescopic forks	41mm Kayaba cartridge forks	41mm Kayaba cartridge forks	41mm Kayaba cartridge forks	41mm Showa cartridge forks
Suspension - Rear	Chrome spring twin shocks with adjustable preload	Kayaba chrome spring twin shocks with adjustable preload	Kayaba chrome spring twin shocks with adjustable preload	Kayaba chrome spring twin shocks with adjustable preload	Kayaba chrome spring twin shocks with adjustable preload	Kayaba chrome spring twin shocks with adjustable preload	Kayaba chrome spring twin shocks with adjustable preload	Kayaba chrome spring twin shocks with adjustable preload	Kayaba chrome spring twin shocks with adjustable preload	Twin sided swingarm, Kayaba spring twin shocks with adjustable preload	Twin sided swingarm, Kayaba spring twin shocks with adjustable preload	Twin RSUs, with pre-load adjustment	KYB twin (RSU) with preload adjustment
Clutch	Wet, multi-plate	Wet, multi plate	Wet, multi plate	Wet, multi plate	Wet, multi plate	Wet, multi plate	Wet, multi plate	Wet, multi plate	Wet, multi plate	Wet, multi plate assist, cable operated	Wet, multi plate assist, cable operated	Wet, multi plate, torque assist clutch	Wet, multi plate, slip and assist
Bore x Stroke	86 x 68 mm	90 x 68 mm ↑	90 x 68 mm	90 x 68 mm	90 x 68 mm	90 x 68 mm	90 x 68 mm	90 x 68 mm	90 x 68 mm	84.6 x 80 mm ↓	84.6 x 80 mm	84.6 x 80 mm	84.6 x 80 mm
Final Drive	Chain	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring	Chain, X-ring
Height	1105 mm / 43.5 in	1105 mm / 43.5 in	1105 mm / 43.5 in	1105 mm / 43.5 in	1105 mm / 43.5 in	1105 mm / 43.5 in	1100 mm / 43.3 in ↓	1100 mm / 43.3 in	1100 mm / 43.3 in	1100 mm / 43.3 in	1100 mm / 43.3 in	1100 mm / 43.3 in	1100 mm / 43.3 in
Length	2250 mm / 88.6 in	2250 mm / 88.6 in	2250 mm / 88.6 in	2250 mm / 88.6 in	2250 mm / 88.6 in	2250 mm / 88.6 in	2230 mm / 87.7 in ↓	2230 mm / 87.7 in	2230 mm / 87.7 in	-	-	2170 mm / 85.4 in	2170 mm / 85.4 in
Wet Weight	-	226 kg / 499 lbs	226 kg / 499 lbs	226 kg / 499 lbs	226 kg / 499 lbs	226 kg / 499 lbs	226 kg / 499 lbs	226 kg / 499 lbs	226 kg / 499 lbs	-	-	228 kg / 503 lbs	228 kg / 503 lbs
Compression Ratio	9.2:1	9.2:1	9.2:1	9.2:1	9.2:1	9.2:1	9.2:1	9.2:1	9.2:1	10.55:1 ↑	10.55:1	11.0:1 ↑	11.0:1
Cooling System	Air-cooled	Air-cooled	Air-cooled	Air-cooled	Air-cooled	Air-cooled	Air-cooled	Air-cooled	Air-cooled	Liquid cooled	Liquid cooled	Liquid cooled	Liquid cooled
Emissions	-	-	-	-	-	-	-	-	-	-	-	EURO5	Euro 5+
Tyres - Front	100/90 R19	100/90 19	100/90 19	100/90 19	100/90 19	100/90 19	100/90-R19	100/90-R19	100/90-R19	100/90-R18	100/90-R18	100/90-R18	100/90-R18
Width	860 mm / 33.8 in Handlebars	860 mm / 33.8 in	860 mm / 33.8 in	860 mm / 33.8 in	860 mm / 33.8 in	860 mm / 33.8 in	840 mm / 33.0 in ↓	840 mm / 33.0 in	840 mm / 33.0 in	715 mm / 28.1 in ↓	715 mm / 28.1 in	780 mm / 30.7 in ↑	780 mm / 30.7 in
Tyres - Rear	130/80 R17	130/80 17	130/80 17	130/80 17	130/80 17	130/80 17	130/80-R17	130/80-R17	130/80-R17	150/70-R17 ↑	150/70-R17	150/70-R17	150/70-R17
Rake	29°	28° ↓	28°	28°	28°	28°	28°	28°	28°	25.5° ↓	25.5°	25.5°	25.5°
Wheels - Front	Spoked, 19 x 2.5in	36 Spokes, 19 x 2.5 in ↑	36 Spokes, 19 x 2.5 in	36 Spokes, 19 x 2.5 in	36 Spokes, 19 x 2.5 in	36 Spokes, 19 x 2.5 in	36 Spokes, 19 x 2.5 in	36 Spokes, 19 x 2.5 in	36 Spokes, 19 x 2.5 in	32 Spokes, 18 x 2.75 in ↓	32 Spokes, 18 x 2.75 in	32 Spokes, 18 x 2.75 in	32 Spokes, 18 x 2.75 in
Exhaust	-	-	-	-	-	-	-	-	-	Chromed 2 into 2 exhaust system with twin silencers	Chromed 2 into 2 exhaust system with twin silencers	Brushed stainless steel 2 into 2 exhaust system with twin silencers	Brushed stainless steel 2 into 2 exhaust system with twin brushed stainless steel silencers
Wheels - Rear	Spoked, 17 x 3.5in	36 Spokes, 17 x 3.5 in ↑	36 Spokes, 17 x 3.5 in	36 Spokes, 17 x 3.5 in	36 Spokes, 17 x 3.5 in	36 Spokes, 17 x 3.5 in	40 Spokes, 17 x 3.5 in ↑	40 Spokes, 17 x 3.5 in	40 Spokes, 17 x 3.5 in	32 Spokes, 17 x 4.25 in ↓	32 Spokes, 17 x 4.25 in	32 Spokes, 17 x 4.25 in	32 Spokes, 17 x 4.25 in
Fuel Induction	Twin carburetors, with throttle position sensor and electric carburettor heaters	Twin carburetors, electrically heated	Fuel injection	Fuel injection	Fuel injection	Fuel injection	Fuel injection	Fuel injection	Fuel injection	Multipoint sequential electronic fuel injection	Multipoint sequential electronic fuel injection	Multipoint sequential electronic fuel injection	Multipoint, fuel injection with electronic throttle control
Swingarm	-	-	-	-	-	-	-	-	-	-	-	Twin sided fabrication	Twin sided fabricated steel
Trail	117 mm / 4.6 in	110 mm / 4.3 in ↓	110 mm / 4.3 in	110 mm / 4.3 in	110 mm / 4.3 in	110 mm / 4.3 in	110 mm / 4.3 in	110 mm / 4.3 in	110 mm / 4.3 in	104 mm / 4.1 in ↓	104 mm / 4.1 in	104 mm / 4.1 in	104 mm / 4.1 in
Max Power	45.2 kW / 62 hp @ 7400 rpm	50 kW / 67 hp @ 7500 rpm ↑	50 kW / 67 hp @ 7500 rpm	50 kW / 67 hp @ 7500 rpm	50 kW / 67 hp @ 7500 rpm	50 kW / 67 hp @ 7500 rpm	50 kW / 67 hp @ 7500 rpm	50 kW / 67 hp @ 7500 rpm	50.7 kW / 68 hp @ 7500 rpm ↑	40.5 kW / 54 hp @ 5900 rpm ↓	40.5 kW / 54 hp @ 5900 rpm	-	-
Wheel Travel - Rear	-	-	-	-	-	-	106 mm / 4.2 in	106 mm / 4.2 in	106 mm / 4.2 in	120 mm / 4.7 in ↑	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in
Max Torque	60 Nm / 6.1 kgf/m / 44.3ft-lb @ 3500 rpm	69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm ↑	69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm	69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm	69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm	69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm	69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm	69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm	68 Nm / 6.93 kgf-m / 50.2 ft-lb @ 5800 rpm ↓	80 Nm / 8.16 kgf-m / 59 ft-lb @ 3230 rpm ↑	80 Nm / 8.16 kgf-m / 59 ft-lb @ 3230 rpm	80 Nm / 59 ft-lb @ 3750 rpm	80 Nm / 59 ft-lb @ 3750 rpm
