Key Specifications
Engine
Four stroke, transverse four cylinder. DOHC, radial valve, 4 radial valves per cylinder
Power
147,7 kW / 198 hp @ 13400 rpm
Torque
114 Nm / 11.4 kgm @ 9200 rpm
Fuel Capacity
17 Litres / 4.49 US gal

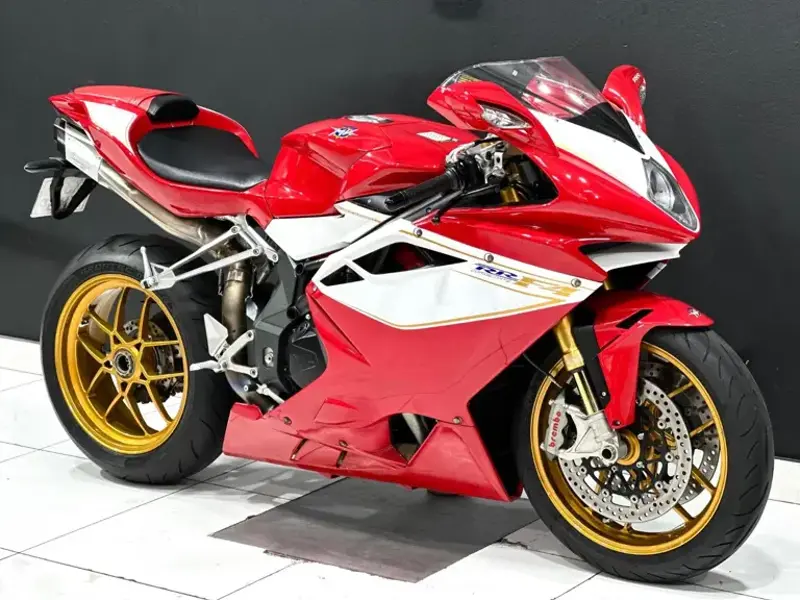

Full 2012 MV Agusta F4RR Specifications
Year
2012
Make Model
MV Agusta F4RR
Seat Height
830 mm / 32.66 in
Wheelbase
1430 mm / 56.2 in
Ground Clearance
115 mm / 4.52 in.
Length
2100 mm / 82.6 in
Width
750 mm / 29.5 in
Dry Weight (kg)
192
Dry Weight
192 Kg / 423 lbs
Fuel Capacity
17 Litres / 4.49 US gal
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder. DOHC, radial valve, 4 radial valves per cylinder
Bore x Stroke
78 x 50.9 mm
Compression Ratio
13.4:1
Cooling System
Cooling with separated liquid and oil radiators
Engine Management
Magneti Marelli IAW 7BM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; Sequential timed -Multipoint- electronic injection ; Variable height intake ducts with Torque Shift System (TSS)
Starter
Electric
Battery Capacity
12 V - 8.6 Ah
Clutch
Wet, multi Ø disc with mechanical anti-surging device and BREMBO radial master cylinder
Final Drive
Chain
Gear Ratios
1st Speed* 14/37 134.1 km/h 83.3 mph @ 13700 rpm 2nd Speed* 16/33 171.8 km/h 106.7 mph @ 13700 rpm 3rd Speed* 18/31 205.8 km/h 127.8 mph @ 13700 rpm 4th Speed* 20/30 236.3 km/h 146.7 mph @ 13700 rpm 5th Speed* 22/29 268.9 km/h 167.0 mph @ 13700 rpm 6th Speed* 21/25 297.6 km/h 184.8 mph @ 13700 rpm
Transmission / Drive
6 Speed
Frame Type
CrMo Steel tubular trellis (TIG welded) Rear swing arm pivot plates: material Aluminium alloy - Adjustable swingarm pivot height
Suspension - Front
43mm "UPSIDE - DOWN" Öhlins telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Suspension - Rear
Öhlins TTX Progressive, single shock absorber with rebound and compression damping and spring preload adjustment Single sided swing arm: material Aluminium alloy
Trail
100,4 mm / 3.9 in
Wheel Travel - Front
120 mm / 4.3 in
Wheel Travel - Rear
120 mm / 4.3 in
Alternator
350 W at 5000 r.p.m.
Brakes - Front
2x 320mm discs 4 piston calipers
Brakes - Rear
Single 210mm disc 4 piston caliper
Tyres - Front
120/70 -ZR 17
Tyres - Rear
190/55 -ZR 17
Wheels - Front
Forged aluminium alloy 3.50 " x 17 "
Wheels - Rear
Forged aluminium alloy 6.00 " x 17 "
