Key Specifications
Engine
Four Stroke, transverse four cylinder, DOHC, 16 valve, Supercharger Centrifugal, scroll-type
Power
197.3 hp / 147.1 kW @ 11000 rpm
Torque
137.3 Nm / 101.3 ft-lb @ 9500 rpm
Weight
256 kg / 564 lbs - SE 260 kg / 573 lbs
Fuel Capacity
19 Litres / 5 US gal
Advertisement

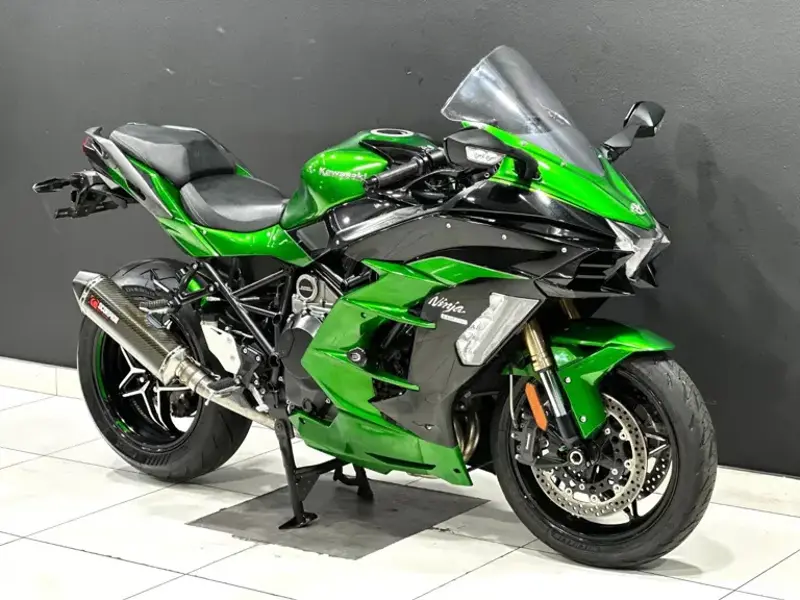

Full 2021 Kawasaki H2 SX-SE Ninja Specifications
Year
2020 - 21
Make Model
Kawasaki H2 SX-SE Ninja
Seat Height
835 mm / 32.8 in
Wheelbase
1480 mm / 58.3 in
Ground Clearance
130 mm / 5.1 in
Height
1205 mm / 47.5 in - SE 1262mm / 49.6 in
Length
1205 mm / 47.5 in - SE 1262 mm / 49.6 in
Width
775 mm / 30.5 in
Fuel Capacity
19 Litres / 5 US gal
Wet Weight
256 kg / 564 lbs - SE 260 kg / 573 lbs
Displacement
998 cc / 60.9 cub in
Engine Detail
Four Stroke, transverse four cylinder, DOHC, 16 valve, Supercharger Centrifugal, scroll-type
Bore x Stroke
76 x 55 mm
Compression Ratio
11.2:1
Cooling System
Liquid cooled
Fuel Induction
Fuel injection: φ40 mm x 4 with dual injection
Ignition
Digital
Lubrication
Forced, wet sump with oil cooler
Starter
Electric
Clutch
Wet multi-disc, manual.
Final Drive
Chain
Final Drive Ratio
2.444 (44/18)
Gear Ratios
1st 3.077 (40/13) 2nd 2.471 (42/17) 3rd 2.045 (45/22) 4th 1.727 (38/22) 5th 1.524 (32/21) 6th 1.348 (31/23)
Primary Drive Ratios
1.480 (74/50)
Transmission / Drive
6-speed, return, dog-ring
Frame Type
Trellis, high-tensile steel, with swingarm mounting plate
Suspension - Front
43 mm Inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Suspension - Rear
Uni-Trak with gas-charged shock, piggyback reservoir, dual-range (high/low-speed) compression damping, rebound damping and preload adjustability, and top-out spring
Rake
24.7°
Steering Angle
30° Right / 30° Left
Trail
103 mm / 4.0 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
139 mm / 5.5 in
Brakes - Front
Dual 320 mm discs, radial-mount, opposed 4-piston calipers, dual semi-floating
Brakes - Rear
Single 250mm disc, opposed 2-piston calipers
Tyres - Front
120/70 ZR17 M/C (58W)
Tyres - Rear
190/55 ZR17 M/C (75W)
