Husqvarna TC 125 Specs

2017 - 2023 • 3 variants

Husqvarna has built the TC 125, a motocross bike, across 3 variants since 2017, most recently updated for 2023. Under the tank sits a reed intake, 124.8 cc in capacity.

About the Husqvarna TC 125

The Husqvarna TC 125 is a Cross / motocross motorcycle from Husqvarna, produced from 2014 to 2023. This page provides a comprehensive technical reference for the Husqvarna TC 125, covering all available specification data including engine configuration, displacement, power output, dimensions, weight, and chassis details. Use the year selector above to find specifications for a specific model year. All data is sourced from manufacturer specifications and is intended as a technical reference for riders, mechanics, and enthusiasts.

Husqvarna TC 125 by Year

2023 Husqvarna TC 125 View specs →

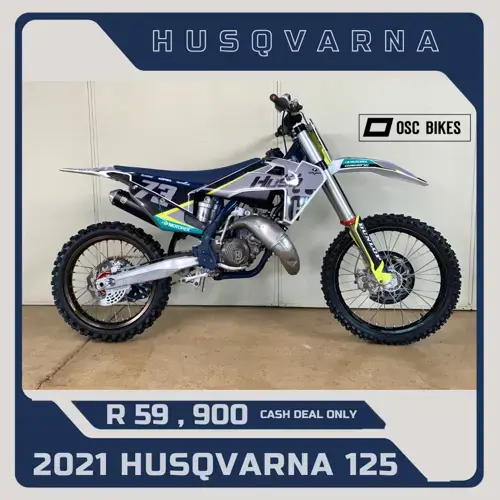

2021 Husqvarna TC 125 View specs →

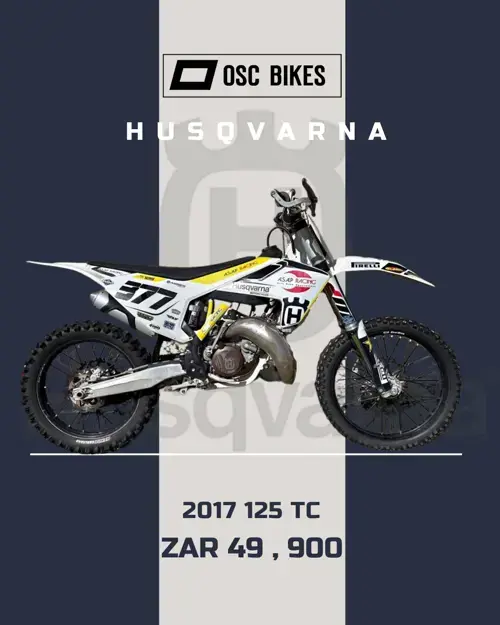

2017 Husqvarna TC 125 View specs →

Spec Evolution

How key specs changed across production years.

Specification	2014	2016	2017	2018	2019	2020	2021	2022	2023
Brakes - Front Diameter (in.)	10.2 inches	10.2 inches	10.2 inches	10.2 inches	-	-	-	-
Brakes - Front Diameter (mm)	260 mm	260 mm	260 mm	260 mm	-	-	-	-
Brakes - Rear Diameter (in.)	8.3 inches	8.3 inches	8.3 inches	8.3 inches	-	-	-	-
Brakes - Rear Diameter (mm)	210 mm	210 mm	210 mm	210 mm	-	-	-	-
Comments	Swedish made bike.	-	-	-	-	-	-	-
Displacement (cc)	124.80 cc	124.80 cc	124.80 cc	124.80 cc	124.8 cc	124.8 cc	124.8 cc	124.8 cc	124.8 cc
Ground Clearance (in.)	15.6 inches	14.8 inches ↓	14.8 inches	14.8 inches	14.8 inches	14.8 inches	14.8 inches	14.8 inches	13.8 inches ↓
Ground Clearance (mm)	395 mm	375 mm ↓	375 mm	375 mm	375 mm	375 mm	375 mm	375 mm	350 mm ↓
Oil Capacity (Quarts)	0.06 quarts	0.06 quarts	0.06 quarts	0.06 quarts	0.95 US quarts ↑	0.95 US quarts	0.95 US quarts	0.95 US quarts	0.95 US quarts
Seat Height	992 mm / 39.1 in.	960 mm / 37.8 in. ↓	960 mm / 37.8 in.	960 mm / 37.8 in.	950 mm / 37.4 in. ↓	950 mm / 37.4 in.	940 mm / 37.0 in. ↓	940 mm / 37.0 in.	939 mm / 37.0 in. ↓
Frame Type	Central tube frame of chrome molybdenum steel tubing, powder-coated	Chrome-molybdenum steel central-tube frame	Chrome-molybdenum steel central-tube frame	Chrome-molybdenum steel central-tube frame	Chrome-molybdenum steel central-tube frame	Chrome-molybdenum steel central-tube frame	Central double-cradle-type 25CrMo4 steel	Central double-cradle-type 25CrMo4 steel	Central double-cradle-type 25CrMo4 steel
Dry Weight	92.3 kg / 203.5 lbs	89.1 kg / 196.4 lbs ↓	87.4 kg / 192.7 lbs ↓	87.4 kg / 192.7 lbs	87.5 kg / 192.9 lbs ↑	87.5 kg / 192.9 lbs	87.5 kg / 192.9 lbs	87.5 kg / 192.9 lbs	92.5 kg / 203.9 lbs ↑
Engine Detail	Reed intake	Reed intake	Reed intake	Reed intake	Reed intake	Reed intake	Reed intake	-
Wheelbase	1,290 mm / 50.8 in.	1,485 mm / 58.5 in. ↑	1,485 mm / 58.5 in.	1,485 mm / 58.5 in.	1485 mm / 58.5 in. ↑	1485 mm / 58.5 in.	1485 mm / 58.5 in.	1485 mm / 58.5 in.	1485 mm / 58.5 in.
Brakes - Front	Single disc. Four-pot brake caliper	Single disc. Four-pot brake caliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper
Brakes - Rear	Single disc. One-pot brake caliper	Single disc. One-pot brake caliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper
Fuel Capacity	7.50 litres / 1.98 gallons	7.50 litres / 1.98 gallons	7.00 litres / 1.85 gallons ↓	7.00 litres / 1.85 gallons	8.00 litres / 2.11 US gallons ↑	8.00 litres / 2.11 US gallons	8.00 litres / 2.11 US gallons	8.00 litres / 2.11 US gallons	7.20 litres / 1.90 US gallons ↓
Suspension - Front	WP Suspension Up Side Down	WP USD ? 48 mm 4CS closed cartridge	WP-USD, AER 48, ? 48 mm	WP-USD, AER 48, ? 48 mm	WP-USD, AER 48, Ø 48 mm	WP-USD, AER 48, Ø 48 mm	WP XACT-USD, Ø 48 mm	WP XACT-USD, Ø 48 mm	WP XACT-USD, Ø 48 mm
Suspension - Rear	WP Monoshock	WP shock absorber with linkage	WP shock absorber with linkage	WP shock absorber with linkage	WP shock absorber with linkage	WP shock absorber with linkage	WP XACT Monoshock with linkage	WP XACT Monoshock with linkage	WP XACT Monoshock with linkage
Fuel System	Injection	-	-	Carburettor	Carburettor	Carburettor	Carburettor. 38 mm flat slide MIKUNI TMX	Carburettor. 38 mm flat slide MIKUNI TMX	Injection
Colours	Blue/yellow	Blue/yellow/white	Blue/yellow/white	Blue/yellow/white	Blue/yellow/white	Blue/yellow/white	White/yellow/blue	White/yellow/blue	White/grey/yellow
Clutch	Wet multi-disc clutch / hydraulically operated	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet multi-disc DS clutch, Brembo hydraulics
Final Drive	Chain	Chain	Chain	Chain	Chain (final drive)	Chain (final drive)	Chain (final drive)	Chain (final drive)	Chain (final drive)
Warranty	2 Years	2 Years	2 Years	-	-	-	-	-
Tyres - Front	90/90-21	80/100-21 ↓	80/100-21	80/100-21	80/100-21	80/100-21	80/100-21	80/100-21	80/100-21
Tyres - Rear	140/80-18	120/90-18 ↓	120/90-18	120/90-18	-	-	-	-
Rake	24.0°	26.1° ↑	26.1°	26.1°	26.1°	26.1°	26.1°	26.1°	26.1°
Wheel Travel - Front	300 mm / 11.8 in.	300 mm / 11.8 in.	310 mm / 12.2 in. ↑	310 mm / 12.2 in.	310 mm / 12.2 in.	310 mm / 12.2 in.	310 mm / 12.2 in.	300 mm / 11.8 in. ↓	305 mm / 12.0 in. ↑
Wheel Travel - Rear	335 mm / 13.2 in.	300 mm / 11.8 in. ↓	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	293 mm / 11.5 in. ↓
Ignition	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan	Kokusan	Kokusan EMS	MEDJ digital	MEDJ digital	MEDJ digital	Kokusan EMS	Kokusan EMS	Vitesco Technologies EMS
Power-to-Weight Ratio	-	-	0.4577 HP/kg	0.4577 HP/kg	0.4571 HP/kg	0.4571 HP/kg	0.4571 HP/kg	0.4571 HP/kg
Starter	Kick	Kick	Kick	Kick	Kick	Kick	Kick	Kick	Electric
