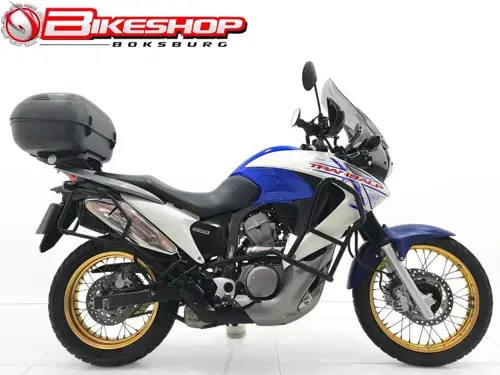

Honda XL 700V Transalp Specs
2009 - 2012
• 2 variants
Honda has built the XL 700V Transalp, a supermotard, across 2 variants since 2009, most recently updated for 2012. Under the tank sits a four stroke, 52o V-Twin, SOHC, 4 valves per cylinder, 680.20 cc in capacity. It makes 59.1 hp at peak.
About the Honda XL 700V Transalp
Documented here are the full technical specifications for the Honda XL 700V Transalp, a Enduro / Off-Road motorcycle with a production run from 2008 to 2012. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.
Honda XL 700V Transalp by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2008
|
2009
|
2012
|
|
Bore x Stroke (in,)
|
3.1 x 3.0 inches | 3.2 x 2.6 inches ↑ | 3.2 x 2.6 inches |
|
Engine Type
|
V2 | V2 | V2, four-stroke |
|
Bore x Stroke (mm)
|
79.0 x 76.0 mm | 81.0 x 66.0 mm ↑ | 81.0 x 66.0 mm |
|
Seat Height
|
- | 841 mm / 33.1 in. | 841 mm / 33.1 in. |
|
Dry Weight
|
218 kg / 480.6 lbs | 218 kg / 480.6 lbs | 218 kg / 480.6 lbs |
|
Brakes - Front
|
Double disc | Double disc | 2x 256 mm discs 2 piston calipers |
|
Wheelbase
|
- | 1,515 mm / 59.6 in. | 1,515 mm / 59.6 lbs |
|
Fuel Capacity
|
17.50 litres / 4.62 gallons | 17.50 litres / 4.62 gallons | 17.50 litres / 4.62 gallons |
|
Brakes - Rear
|
Single disc | Single disc | Single 240 mm disc 1 piston caliper |
|
Suspension - Front
|
- | 41 mm leading-axle telescopic fork,177 mm axle travel | 41 mm leading-axle telescopic fork,177 mm axle travel |
|
Suspension - Rear
|
- | Pro-Link with adjustable compression damping, 173 mm axle travel | Pro-Link with adjustable compression damping, 173 mm axle travel |
|
Fuel System
|
Injection | Injection. PGM-FI electronic fuel injection | Injection. PGM-FI electronic fuel injection |
|
Colours
|
- | Orange, blue, red, gray | Blue/white, black, silver/grey |
|
Clutch
|
Mechanical. cable-actuated, Wet, Wet, multiplate with coil springs | - | Electronic Dual Clutch |
|
Height
|
- | 2,250 mm / 88.6 in. | 1,220 mm / 48.0 in. ↓ |
|
Length
|
- | 2,250 mm / 88.6 in. | 2,250 mm / 88.6 in. |
|
Compression Ratio
|
9.6:1 | 10.0:1 ↑ | 10.0:1 |
|
Wet Weight
|
- | - | 277.0 kg / 610.7 lbs |
|
Tyres - Front
|
100/90-R19 | 100/90-R19 | 100/90 -19 |
|
Width
|
- | - | 905 mm / 35.6 in |
|
Tyres - Rear
|
130/80-R17 | 130/80-R17 | 130/80 -17 |
|
Wheel Travel - Front
|
- | - | 177 mm / 7.9 in |
|
Wheel Travel - Rear
|
- | - | 173 mm / 6.8 in |
|
Ignition
|
Fully transistorised electronic | Digital transistorised with electronic advance | Digital transistorised with electronic advance |
|
Max Torque
|
60.00 | 60.00 | 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5500 |
|
Power-to-Weight Ratio
|
0.2712 HP/kg | 0.2712 HP/kg | 0.2713 HP/kg |
