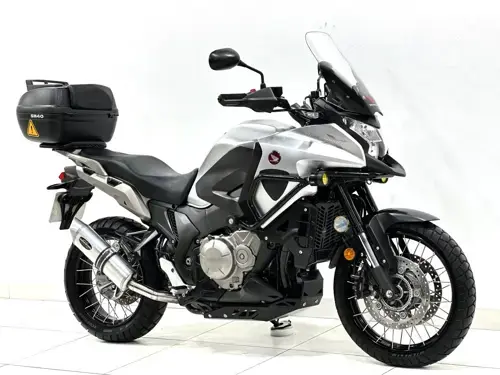

Honda VFR1200X Specs
2016
• 1 variants
Honda has built the VFR1200X, a sport tourer, across 1 variant since 2016. Under the tank sits a 76 degree cyclinder angle, 1237.0 cc in capacity. Torque tops out at 126 Nm.
About the Honda VFR1200X
The VFR1200X represents Honda's contribution to the Sport touring motorcycle segment, spanning the 2016 to 2020 production run. Our database contains detailed technical specifications for each model year, covering powertrain details, chassis geometry, suspension and braking systems, fuel capacity, and certified weight figures. Use the year navigation above to drill into year-specific data. All specifications are referenced from official Honda documentation.
Honda VFR1200X by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2016
|
2017
|
2018
|
2019
|
2020
|
|
Displacement (cc)
|
1237.00 cc | 1237.00 cc | - | 1237.0 cc | 1237.0 cc |
|
CO2
|
119.9 CO2 g/km. (CO2 - Carbon dioxide emission) | 119.9 CO2 g/km. (CO2 - Carbon dioxide emission) | 119.9 CO2 g/km. (CO2 - Carbon dioxide emission) | 143.8 CO2 g/km. (CO2 - Carbon dioxide emission) ↑ | 143.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Wheelbase
|
1,595 mm / 62.8 in. | 1,595 mm / 62.8 in. | 1,595 mm / 62.8 in. | 1595 mm / 62.8 in. ↑ | 1595 mm / 62.8 in. |
|
Fuel Capacity
|
21.50 litres / 5.68 gallons | 21.50 litres / 5.68 gallons | 21.50 litres / 5.68 gallons | 21.50 litres / 5.68 US gallons | 21.50 litres / 5.68 US gallons |
|
Colours
|
Pearl Black | Candy Red | Candy Red | Candy Red | Candy Red |
|
Final Drive
|
Shaft drive (cardan) | Shaft drive (cardan) | Shaft drive (cardan) | Shaft drive (cardan) (final drive) | Shaft drive (cardan) (final drive) |
|
Height
|
1,335 mm / 52.6 in. | 1,335 mm / 52.6 in. | 1,335 mm / 52.6 in. | 1335 mm / 52.6 in. ↑ | 1335 mm / 52.6 in. |
|
Length
|
2,285 mm / 90.0 in. | 2,285 mm / 90.0 in. | 2,285 mm / 90.0 in. | 2285 mm / 90.0 in. ↑ | 2285 mm / 90.0 in. |
|
Wet Weight
|
275.0 kg / 606.3 lbs | 275.0 kg / 606.3 lbs | 275.0 kg / 606.3 lbs | 277.0 kg / 610.7 lbs ↑ | 277.0 kg / 610.7 lbs |
|
Rake
|
28.0° | 28.0° | 28.0° | 28.0° | 28.0° |
|
Fuel Consumption
|
5.17 litres/100 km (19.3 km/l or 45.50 mpg) | 5.17 litres/100 km (19.3 km/l or 45.50 mpg) | 5.17 litres/100 km (19.3 km/l or 45.50 mpg) | 6.20 litres/100 km (16.1 km/l or 37.94 mpg) ↑ | 6.20 litres/100 km (16.1 km/l or 37.94 mpg) |
|
Max Torque
|
126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 6500 Revolutions | 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 6500 Revolutions | 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 6500 Revolutions | 126.0 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 6500 Revolutions | 126.0 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 6500 Revolutions |
