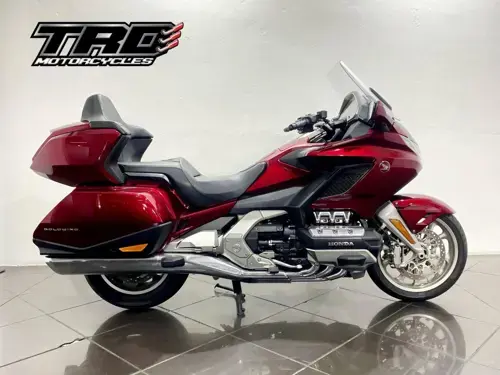

Honda Gold Wing Specs

2018 • 1 variants

First introduced in 2018, the Honda Gold Wing is a touring motorcycle that has seen 1 variant. The engine displaces 1833.0 cc. It delivers 167 Nm of torque.

About the Honda Gold Wing

Documented here are the full technical specifications for the Honda Gold Wing, a Touring motorcycle with a production run from 2016 to 2022. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

Honda Gold Wing by Year

2018 Honda Gold Wing View specs →

Spec Evolution

How key specs changed across production years.

Specification	2016	2018	2019	2020	2022
Bore x Stroke (in,)	2.9 x 2.8 inches	2.9 x 2.9 inches	2.9 x 2.9 inches	2.9 x 2.9 inches	2.9 x 2.9 inches
Bore x Stroke (mm)	74.0 x 71.0 mm	73.0 x 73.0 mm ↓	73.0 x 73.0 mm	73.0 x 73.0 mm	73.0 x 73.0 mm
CO2	155.9 CO2 g/km. (CO2 - Carbon dioxide emission)	-	-	-	126.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Comments	Model ID: GL1800. Model also called called Gold Wing Audio Comfort. Surround Sound. Cruise Control. Electric reverse.	Model ID: GL1800	-	-	Apple CarPlay™ and Android Auto™ allow smartphone use. Smart Key. Two USB Type-C sockets.
Brakes - Front Diameter (mm)	296 mm	320 mm ↑	-	-	-
Brakes - Front Diameter (in.)	11.7 inches	12.6 inches ↑	-	-	-
Seat Height	739 mm / 29.1 in.	744 mm / 29.3 in. ↑	744 mm / 29.3 in.	744 mm / 29.3 in.	745 mm / 29.3 in. ↑
Brakes - Front	Double disc. Floating discs. Three-piston calipers	Double disc. Floating discs. CBS three-piston calipers	Double disc. Floating discs. CBS three-piston calipers	Double disc. Floating discs. CBS three-piston calipers	Double disc. Floating discs. CBS three-piston calipers
Wheelbase	1,689 mm / 66.5 in.	1,694 mm / 66.7 in.	1694 mm / 66.7 in. ↑	1694 mm / 66.7 in.	1694 mm / 66.7 in.
Brakes - Rear	Single disc. Three-piston calipers.	Single disc. CBS three-piston calipers.	Single disc. CBS three-piston calipers.	Single disc. CBS three-piston calipers.	Single disc. CBS three-piston calipers.
Fuel Capacity	24.98 litres / 6.60 gallons	21.01 litres / 5.55 gallons ↓	21.01 litres / 5.55 US gallons	21.01 litres / 5.55 US gallons	21.01 litres / 5.55 US gallons
Suspension - Front	45mm cartridge fork with anti-dive system, 4.8 inches travel	Double Wishbone Type; 4.3 inches travel ↓	Double Wishbone Type; 4.3 inches travel	Double Wishbone Type; 4.3 inches travel	Double Wishbone
Suspension - Rear	Pro Arm® single-side swingarm with Pro-Link® single shock with computer-controlled spring preload adjustment with two memory presets; 4.1 inches travel	Pro Arm® single-side swingarm with Pro-Link® single shock; 4.1 inches travel	Pro Arm® single-side swingarm with Pro-Link® single shock; 4.1 inches travel ↓	Pro Arm® single-side swingarm with Pro-Link® single shock; 4.1 inches travel	Pro Arm® single-side swingarm with Pro-Link® single shock
Fuel System	Injection. Programmed Fuel Injection	Injection. Programmed Fuel Injection	Injection. Programmed Fuel Injection	Injection. Programmed Fuel Injection	Injection. Programmed Fuel Injection, 50mm
Colours	Grey Metallic/Black, Matte Altair Silver, Candy Red	Candy Ardent Red, Matte Majestic Silver, Pearl Stallion Brown	Darkness Black Metallic	Matte Metallic Black	Mat Jeans Blue Metallic
Clutch	Multi-plate with diaphragm spring in oil bath	Multi-plate with diaphragm spring in oil bath	Multi-plate with diaphragm spring in oil bath	Multi-plate with diaphragm spring in oil bath	Multi-plate with diaphragm spring in oil bath. Optional DCT.
Final Drive	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan) (final drive)	Shaft drive (cardan) (final drive)	Shaft drive (cardan) (final drive)
Length	2,630 mm / 103.5 in.	-	-	-	2475 mm / 97.4 in.
Wet Weight	415.5 kg / 916.0 lbs	357.0 kg / 787.0 lbs ↓	357.0 kg / 787.0 lbs	357.0 kg / 787.0 lbs	357.0 kg / 787.0 lbs
Compression Ratio	9.8:1	10.5:1 ↑	10.5:1	10.5:1	10.5:1
Tyres - Front	130/70-R18	130/70-18	130/70-18	130/70-18	130/70-18
Gearbox	5-speed	6-speed ↑	6-speed	6-speed	6-speed
Tyres - Rear	180/60-R16	200/55-16 ↑	-	-	-
Rake	29.2°	30.5° ↑	30.5°	30.5°	30.5°
Fuel Consumption	6.72 litres/100 km (14.9 km/l or 35.00 mpg)	-	-	-	5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Max Torque	167.00 Nm (17.0 kgf-m or 123.2 ft.lbs) @ 4000 Revolutions	167.00 Nm (17.0 kgf-m or 123.2 ft.lbs) @ 4000 Revolutions	167.0 Nm (17.0 kgf-m or 123.2 ft.lbs) @ 4000 Revolutions	167.0 Nm (17.0 kgf-m or 123.2 ft.lbs) @ 4000 Revolutions	170.0 Nm (17.3 kgf-m or 125.4 ft.lbs) @ 4500 Revolutions ↑
Valve System	2	4 ↑	4	4	4
