Honda CRF50F Specs

2007 - 2014 • 4 variants

The Honda CRF50F is an enduro motorcycle produced from 2007 to 2014 across 4 variants. Engine displacement is 49.0 cc. Peak torque is 4 Nm.

About the Honda CRF50F

As a Cross / motocross motorcycle, the Honda CRF50F was offered from the 2004 through to the 2023 model year. The technical data presented here covers the complete specification range for this model, including all engine variants, chassis dimensions, suspension travel, brake specifications, and weight figures. This information is useful for prospective buyers, current owners, and mechanics working on the Honda CRF50F.

AdSense - 728Ã90

Honda CRF50F by Year

2014 Honda CRF50F View specs →

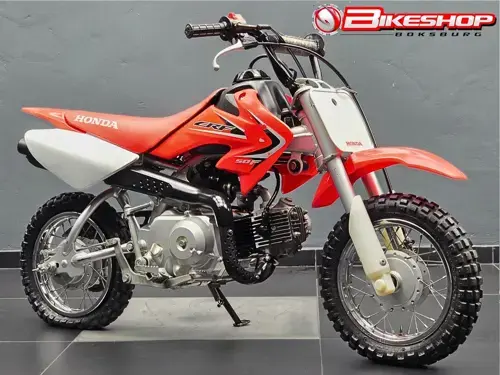

2011 Honda CRF50F View specs →

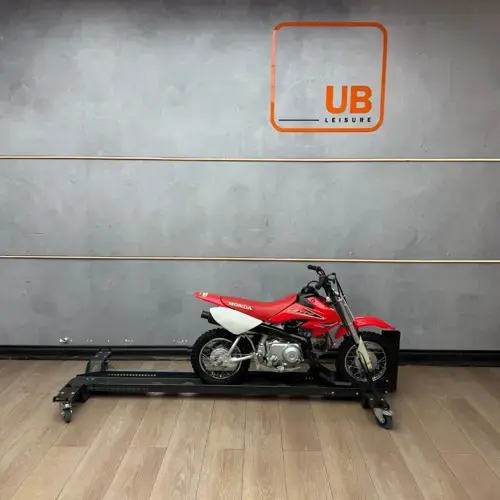

2010 Honda CRF50F View specs →

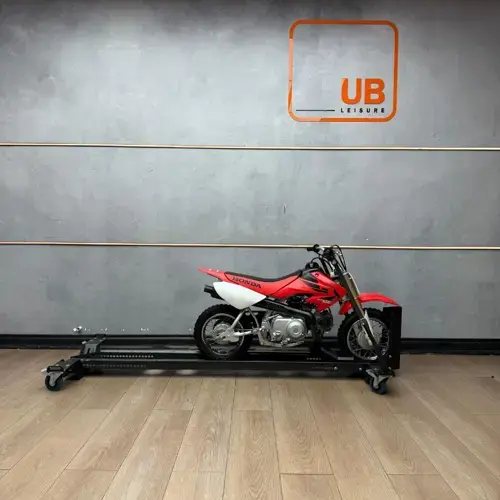

2007 Honda CRF50F View specs →

Spec Evolution

How key specs changed across production years.

Specification	2004	2005	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023
Ground Clearance (mm)	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	147 mm	152 mm ↑	152 mm
Ground Clearance (in.)	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	5.8 inches	6.0 inches ↑	6.0 inches
Fuel Control	SOHC	SOHC	SOHC	SOHC	SOHC	SOHC	SOHC	SOHC	SOHC	Overhead Cams (OHC)	SOHC	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)
Engine Type	Single cylinder	Single cylinder	Single cylinder	Single cylinder	Single cylinder	Single cylinder	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke
Displacement (cc)	49.00 cc	49.00 cc	49.00 cc	49.00 cc	49.00 cc	49.00 cc	49.00 cc	49.00 cc	49.00 cc	49.00 cc	49.00 cc	-	-	-	-	49.0 cc	49.0 cc	49.0 cc	49.0 cc	49.0 cc
Comments	-	-	-	-	-	-	-	-	French brand.	-	Model ID: CRF450X	Model id: CRF50F. ↓	Model id: CRF50F.	Model id: CRF50F. Adjustable throttle limiter.	Model id: CRF50F. Adjustable throttle limiter.	Model id: CRF50F. Adjustable throttle limiter.	Model id: CRF50F. Adjustable throttle limiter.	Model id: CRF50F. Adjustable throttle limiter.	Model id: CRF50F. Adjustable throttle limiter.	Model id: CRF50F. Adjustable throttle limiter.
Mods from previous model	-	-	-	-	-	-	-	Also called USHighland 507 ATX QuadRacer.	-	-	-	-	-	-	-	-	-	-	New graphics.	-
Seat Height	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	549 mm / 21.6 in.	548 mm / 21.6 in. ↓	548 mm / 21.6 in.
Frame Type	-	-	-	-	-	-	-	Aluminium	-	Steel	-	-	Steel	Steel	Steel	Steel	Steel	Steel	Steel	Steel
Dry Weight	-	47.2 kg / 104.0 lbs	47.2 kg / 104.0 lbs	47.2 kg / 104.0 lbs	-	-	-	-	47 kg / 103.6 lbs	47 kg / 103.6 lbs	47 kg / 103.6 lbs	47 kg / 103.6 lbs	47 kg / 103.6 lbs	47 kg / 103.6 lbs	47 kg / 103.6 lbs	49.9 kg / 110.0 lbs ↑	49.9 kg / 110.0 lbs	-	-	-
Fuel Capacity	3.02 litres / 0.80 gallons	3.02 litres / 0.80 gallons	3.02 litres / 0.80 gallons	3.02 litres / 0.80 gallons	2.64 litres / 0.70 gallons ↓	2.64 litres / 0.70 gallons	2.64 litres / 0.70 gallons	2.65 litres / 0.70 gallons	3.00 litres / 0.79 gallons ↑	3.00 litres / 0.79 gallons	3.00 litres / 0.79 gallons	3.00 litres / 0.79 gallons	3.00 litres / 0.79 gallons	3.00 litres / 0.79 gallons	3.00 litres / 0.79 gallons	3.00 litres / 0.79 US gallons	2.64 litres / 0.70 US gallons ↓	2.65 litres / 0.70 US gallons	4.10 litres / 1.08 US gallons ↑	2.65 litres / 0.70 US gallons ↓
Suspension - Front	Inverted telescopic fork;	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	21.7mm inverted telescopic fork	21.7mm inverted telescopic fork	21.7mm inverted telescopic fork	21.7mm inverted telescopic fork	21.7mm inverted telescopic fork	21.7mm inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork	Inverted telescopic fork
Suspension - Rear	Single-shock	Single-shock	Single-shock	Single-shock	Single-shock	Single-shock	Single-shock	Single-shock	Monoshock with cantilever-type swingarm	Monoshock with cantilever-type swingarm	Monoshock with cantilever-type swingarm	Monoshock with cantilever-type swingarm	Monoshock with cantilever-type swingarm	Monoshock with cantilever-type swingarm	Monoshock	Monoshock	Single-shock	Monoshock	Monoshock	Single shock
Fuel System	-	-	Carburettor. Keihin 37 mm flat-slide with throttle position sensor	-	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve carburator	Carburettor. 13mm piston-valve	Carburettor. 11 piston valve ↓	Carburettor. 11 piston valve
Colours	-	Red	Red	-	Red	Red	Red	Red	Red/white	Red/white	Red/white	Red	Red/white	Red/white	Red/white	Red/white	Red	Red/white	Red/white	Red/blue/white, White/pink
Clutch	-	-	-	-	-	-	Automatic	Wet, multiplate	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic
Final Drive	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain (final drive)	Chain (final drive)	Chain (final drive)	Chain (final drive)	Chain (final drive)
Height	-	-	-	-	-	-	-	-	1,150 mm / 45.3 in.	-	-	-	-	-	-	-	-	-	775 mm / 30.5 in.	775 mm / 30.5 in.
Rims	-	-	-	-	-	-	-	-	Wire spoke	Wire spoke	Wire spoke	Wire spoke	Wire spoked	Wire spoked	Wire spoked	Wire spoked	Wire spoked	Wire spoked	Aluminium spoke	Aluminium spoke
Length	-	-	-	-	-	-	-	-	1,810 mm / 71.3 in.	-	-	-	-	-	-	-	-	-	1298 mm / 51.1 in.	1298 mm / 51.1 in.
Warranty	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Six months transferable limited warranty	Six months transferable limited warranty	Six months transferable limited warranty	Six months transferable limited warranty
Wet Weight	-	-	-	-	-	49.9 kg / 110.0 lbs	49.9 kg / 110.0 lbs	49.9 kg / 110.0 lbs	94.0 kg / 207.2 lbs ↑	-	122.0 kg / 269.0 lbs	-	-	-	-	-	49.9 kg / 110.0 lbs	49.9 kg / 110.0 lbs	50.3 kg / 110.9 lbs ↑	50.4 kg / 111.0 lbs ↑
Emissions	-	-	-	-	-	-	-	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current CARB and EPA standards.	Meets current EPA off-road emissions standards.	Meets current EPA off-road emissions standards.	Meets current EPA off-road emissions standards.
Tyres - Front	-	70/70-19	70/70-19	-	70/0-19	70/10-.19	2.50-10 ↓	2.50-10	2.50-12	2.50-10	2.50-10	2.50-10	2.50-10	2.50-10	2.50-10	2.50-10	70/0-19 ↑	2.50-10 ↓	2.50-10	2.50-10
Width	-	-	-	-	-	-	-	1,016 mm / 40.0 in.	685 mm / 27.0 in. ↑	-	-	-	-	-	-	-	-	-	571 mm / 22.5 in.	571 mm / 22.5 in.
Tyres - Rear	-	90/90-16	90/90-16	-	90/80-16	90/10-.16	2.50-10 ↓	2.50-10	2.50-10	2.50-10	110/100-18 ↑	2.50-10 ↓	2.50-10	2.50-10	2.50-10	-	-	-	-	-
Primary Drive	-	-	-	-	-	-	-	#420 chain; 14T/37T	#420 chain; 14T/37T	#420 chain; 14T/37T	#520 T-ring-sealed chain; 13T/51T ↑	-	-	-	-	-	#420 chain; 14T/37T	#420 chain; 14T/37T	#420 chain; 14T/37T	#420 chain; 14T/37T
Rake	27.0°	25.0° ↓	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°	25.0°
Fuel Reserve	0.75 litres / 0.20 gallons	-	-	-	-	-	0.75 litres / 0.20 gallons	-	0.80 litres / 0.21 gallons	0.80 litres / 0.21 gallons	0.80 litres / 0.21 gallons	0.80 litres / 0.21 gallons	0.80 litres / 0.21 gallons	0.80 litres / 0.21 gallons	0.80 litres / 0.21 gallons	0.80 litres / 0.21 US gallons	0.76 litres / 0.20 US gallons ↓	0.76 litres / 0.20 US gallons	0.76 litres / 0.20 US gallons	0.76 litres / 0.20 US gallons
Trail	62 mm / 2.4 in.	-	-	-	-	-	-	-	-	-	110 mm / 4.3 in.	-	-	-	32 mm / 1.3 in.	32 mm / 1.3 in.	32 mm / 1.3 in.	32 mm / 1.3 in.	32 mm / 1.3 in.	32 mm / 1.3 in.
Wheel Travel - Front	89 mm / 3.5 in.	89 mm / 3.5 in.	89 mm / 3.5 in.	89 mm / 3.5 in.	89 mm / 3.5 in.	89 mm / 3.5 in.	89 mm / 3.5 in.	300 mm / 11.8 in. ↑	90 mm / 3.5 in. ↓	90 mm / 3.5 in.	315 mm / 3.5 in. ↑	90 mm / 3.5 in. ↓	90 mm / 3.5 in.	90 mm / 3.5 in.	89 mm / 3.5 in. ↓	89 mm / 3.5 in.	89 mm / 3.5 in.	89 mm / 3.5 in.	94 mm / 3.7 in. ↑	97 mm / 3.8 in. ↑
Wheel Travel - Rear	71 mm / 2.8 in.	71 mm / 2.8 in.	71 mm / 2.8 in.	71 mm / 2.8 in.	71 mm / 2.8 in.	71 mm / 2.8 in.	71 mm / 2.8 in.	71 mm / 2.8 in.	70 mm / 2.8 in. ↓	70 mm / 2.8 in.	312 mm / 12.3 in. ↑	70 mm / 2.8 in. ↓	70 mm / 2.8 in.	70 mm / 2.8 in.	71 mm / 2.8 in. ↑	71 mm / 2.8 in.	71 mm / 2.8 in.	71 mm / 2.8 in.	69 mm / 2.7 in. ↓	71 mm / 2.8 in. ↑
Ignition	-	CD	CD	CD	CD	CD	CD	CD	CD	CDI	CD	CD	CD	CD	CD	CD	CD	CD	CD	CD
Starter	-	-	-	-	-	-	-	Electric	Kick	Kick	Kick	Kick	Kick	Kick	Kick	Kick	Electric	Electric	Electric	Electric
Valve System	2	-	-	-	-	-	-	4	-	-	-	2	2	2	2	2	2	2	2	2
