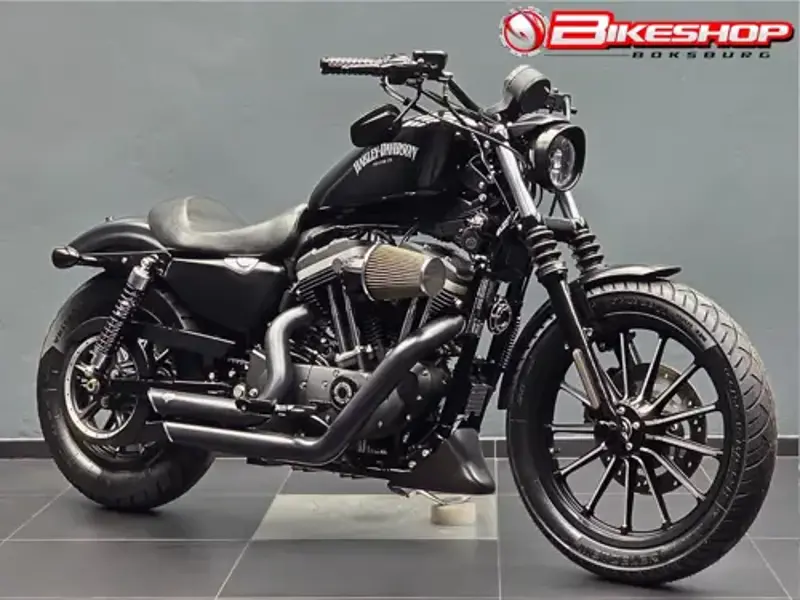

2012 Harley-Davidson XL 883N Iron Specifications

Name: 2012 Harley-Davidson XL 883N Iron
Brand: Harley-Davidson

Custom / cruiser • Specs last verified 13 July 2026

No images available

Tap to enlarge

2012 Harley-Davidson XL 883N Iron Overview

For 2012, Harley-Davidson offers the XL 883N Iron as a custom / cruiser motorcycle with 883 cc on tap. The 2012 Harley-Davidson XL 883N Iron is built around a Four stroke, 45° V-Twin, OHV, 2 valves per cylinder engine, a compression ratio of 8.8:1. Out on the road, the XL 883N Iron delivers 73 Nm @ 3750 rpm of torque. In everyday use, the 2012 XL 883N Iron tips the scales at 256.3 kg, carries a 12.5-litre fuel tank, offers a seat height of Laden 653 mm and spans a 1519 mm wheelbase. That's roughly 44.3 kg lighter than the average custom / cruiser motorcycle in our database. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2012 Harley-Davidson XL 883N Iron spec sheet below.

2012 XL 883N Iron - Pros & Cons

Strengths

Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
Accessible seat height: At just Laden 653 mm, flat-footing at a stop is easy for most riders - a genuine confidence builder for less experienced owners.
Low-maintenance final drive: Belt final drive is about as close to maintenance-free as motorcycle drivetrains get.

Considerations

Age-related wear: No particular mechanical concern flags for the XL 883N Iron - condition on any used example comes down to how well it's been looked after.

Wear Points & Servicing Notes

Heat management in traffic

Air cooling on the XL 883N Iron keeps the mechanical layout simple, but heat management in slow traffic needs more attention than on a liquid-cooled bike - plan routes and gear accordingly in warmer conditions.

Fuelling & injector care

Fuelling on the XL 883N Iron comes from Electronic sequential port fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.

Brake disc and pad wear

Single ∅300mm disc, 2 x ∅38mm piston calipers up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.

Suspension condition on used examples

Suspension duties are handled by ∅39mm Fork up front and Coil-over, dual-adjustable preload at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.

Final drive maintenance

Belt final drive keeps day-to-day maintenance minimal on the XL 883N Iron - just periodic tension and wear checks rather than the regular cleaning a chain demands.

Frame & chassis check

The Mild steel, tubular frame, circular sections, cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded chassis holds up well with normal use; on a used bike it's still worth checking the head-stock and swingarm pivot area for impact damage or corrosion.

Handling the weight at a standstill

The XL 883N Iron's 256.3 kg kerb weight is worth factoring into how you handle it at a standstill - parking-lot manoeuvres need a bit more deliberate technique than on a lighter machine.

XL 883N Iron - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 2012 Harley-Davidson XL 883N Iron should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept XL 883N Iron settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a XL 883N Iron's engine - keep to the manufacturer's interval rather than stretching it. Use the viscosity grade the manual specifies, not whatever's on sale.

Fuel system care

Injector systems like the XL 883N Iron's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.

2012 Harley-Davidson XL 883N Iron - Frequently Asked Questions

What engine does the 2012 Harley-Davidson XL 883N Iron have?

The 2012 Harley-Davidson XL 883N Iron uses a Four stroke, 45° V-Twin, OHV, 2 valves per cylinder. engine with 883 cc of displacement. It is air cooled.

How much does the 2012 Harley-Davidson XL 883N Iron weigh?

The 2012 Harley-Davidson XL 883N Iron weighs 256.3 kg. This is the manufacturer's wet figure.

How much power does the 2012 Harley-Davidson XL 883N Iron make?

The 2012 Harley-Davidson XL 883N Iron produces 73 Nm @ 3750 rpm of torque.

What is the fuel tank capacity of the 2012 Harley-Davidson XL 883N Iron?

The 2012 Harley-Davidson XL 883N Iron has a 12.5-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 208-250 km between stops.

Is the 2012 Harley-Davidson XL 883N Iron suitable for shorter riders?

The 2012 Harley-Davidson XL 883N Iron has a seat height of Laden 653 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2012 Harley-Davidson XL 883N Iron have?

The 2012 Harley-Davidson XL 883N Iron uses Single ∅300mm disc, 2 x ∅38mm piston calipers at the front and Single ∅260mm disc, 2 x ∅38mm piston calipers at the rear.

What tyre sizes does the 2012 Harley-Davidson XL 883N Iron use?

The 2012 Harley-Davidson XL 883N Iron runs 100/90B19 57H front and 130/90-16 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2012 Harley-Davidson XL 883N Iron have?

The 2012 Harley-Davidson XL 883N Iron is fitted with a 5 Speed transmission.

Harley-Davidson XL 883N Iron Spec Evolution

The Harley-Davidson XL 883N Iron was produced across 6 model years (2009-2017). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2009	2010	2012	2013	2015	2017
Engine Detail	Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.	Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.	Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.	Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.	Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.	Four stroke, 45° V-Twin, OHV, 2 valves per cylinder
Seat Height	Laden 653 mm / 25.7 in Unladen 683 mm / 26.9 in.	Laden 653 mm / 25.7 in Unladen 683 mm / 26.9 in.	Laden 653 mm / 25.7 in Unladen 683 mm / 26.9 in.	Laden 653 mm / 25.7 in Unladen 683 mm / 26.9 in.	Laden 653 mm / 25.7 in Unladen 683 mm / 26.9 in.	Laden 653 mm / 25.7 in Unladen 734 mm / 28.9 in
Displacement	883 cc / 50.8cu in/	883 cc / 50.8cu in/	883 cc / 50.8cu in/	883 cc / 50.8cu in/	883 cc / 50.8cu in/	883 cc / 53.9 cu-in
Brakes - Front	Single ∅300mm disc, 2 x ∅38mm piston calipers	Single ∅300mm disc, 2 x ∅38mm piston calipers	Single ∅300mm disc, 2 x ∅38mm piston calipers	Single ∅300mm disc, 2 x ∅38mm piston calipers	Single ∅300mm disc, 2 x ∅38mm piston calipers	Single 300mm disc, 2 piston caliper
Brakes - Rear	Single ∅260mm disc, 2 x ∅38mm piston calipers	Single ∅260mm disc, 2 x ∅38mm piston calipers	Single ∅260mm disc, 2 x ∅38mm piston calipers	Single ∅260mm disc, 2 x ∅38mm piston calipers	Single ∅260mm disc, 2 x ∅38mm piston calipers	Single 260mm disc, 2 piston caliper
Suspension - Front	∅39mm Fork	∅39mm Fork	∅39mm Fork	∅39mm Fork	∅39mm Fork	39mm Fork
Length	2179 mm / 85.4 in	2179 mm / 85.4 in	2179 mm / 85.4 in	2179 mm / 85.4 in	2179 mm / 85.4 in	2179 mm / 85.8 in
Rake	31.1°	31.1°	31.1°	31.1°	31.1°	30°

Key Specifications

Engine

Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Power

Not published by manufacturer

Torque

73 Nm / 7.44 kgf-m / 53.8 ft/lb @ 3750 rpm

Top Speed

Not published by manufacturer

Weight

256.3 kg / 565 lbs

Fuel Capacity

12.5 Litres / 3.3 US gal

Full 2012 Harley-Davidson XL 883N Iron Specifications

Year 2011 - 12

Make Model Harley Davidson XL 883N Iron

Seat Height Laden 653 mm / 25.7 in Unladen 683 mm / 26.9 in.

Wheelbase 1519 mm / 59.5 in.

Ground Clearance 120 mm / 4.7 in

Height 1107 mm / 43.5 in

Length 2179 mm / 85.4 in

Width 821 mm / 32.3 in

Fuel Capacity 12.5 Litres / 3.3 US gal

Oil Capacity 2.6 Litres / 0.69 US gal

Wet Weight 256.3 kg / 565 lbs

Max Torque 73 Nm / 7.44 kgf-m / 53.8 ft/lb @ 3750 rpm

Displacement 883 cc / 50.8cu in/

Engine Detail Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Bore x Stroke 76.2 x 96.8 mm

Compression Ratio 8.8:1

Cooling System Air cooled

Exhaust Chrome, staggered, shorty exhaust with dual mufflers

Fuel Induction Electronic sequential port fuel injection

Ignition Digital CDI

Starter Electric

Clutch Multi-plate clutch with diaphragm spring in oil bath

Final Drive Belt

Gear Ratios 1st 10.407 / 2nd 7.436 / 3rd 5.53 / 4th 4.583 / 5th 3.93

Primary Drive Chain, 34/57 ratio

Transmission / Drive 5 Speed

Frame Type Mild steel, tubular frame, circular sections, cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded

Suspension - Front ∅39mm Fork

Suspension - Rear Coil-over, dual-adjustable preload

Rake 31.1°

Trail 117 mm / 4.6 in

Wheel Travel - Front 92 mm / 3.62 in.

Wheel Travel - Rear 41 mm / 1.6 in.

Brakes - Front Single ∅300mm disc, 2 x ∅38mm piston calipers

Brakes - Rear Single ∅260mm disc, 2 x ∅38mm piston calipers

Tyres - Front 100/90B19 57H

Tyres - Rear 130/90-16

Wheels - Front Black, 13-spoke cast aluminium

Wheels - Rear Black, 13-spoke cast auminium

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
