Key Specifications
Engine
Four stroke, 60° V-twin, DOHC, 4 valve per cylinder
Power
115 hp / 84 kW @ 8250 rpm
Torque
105 Nm / 77.4 lb-ft @ 7300 rpm
Weight
275.0 kg / 606.3 lbs
Fuel Capacity
15 Litres / 4.0 US gal
Advertisement

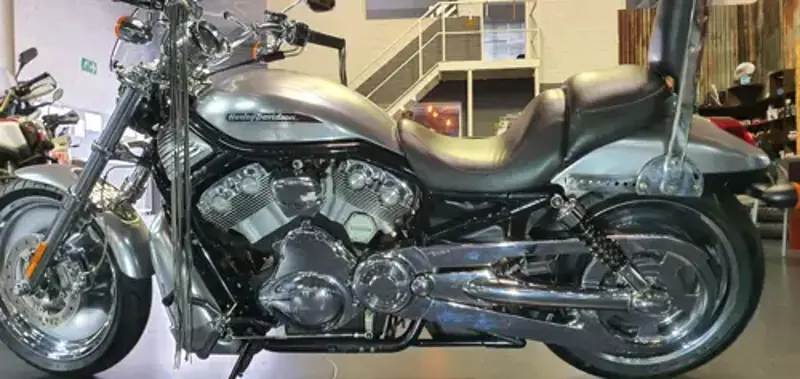

Full 2005 Harley-Davidson VRSCB V-Rod Specifications
Year
2004 - 05
Make Model
Harley Davidson VRSCB V-Rod
Seat Height
660 mm / 26.0 in
Wheelbase
1713 mm / 67.5 in
Ground Clearance
142 mm / 5.6 in
Length
2375 mm / 93.6 in
Dry Weight
275.0 kg / 606.3 lbs
Fuel Capacity
15 Litres / 4.0 US gal
Displacement
1130 cc / 59 cu-in
Engine Detail
Four stroke, 60° V-twin, DOHC, 4 valve per cylinder
Bore x Stroke
100 x 72 mm
Compression Ratio
11.3:1
Cooling System
Liquid cooled
Fuel Induction
Sequential Port Electronic fuel injection with 53mm throttle bodies
Ignition
Sequential, single fire non waste spark, coil on plug
Lubrication
Gerotor, wet sump
Starter
Electric
Battery Capacity
Sealed,maintenance-free, 12-volt, 12 amp-hour, 200 cca (per Battery Council International rating)
Clutch
Nine plate wet pressure fed with integral compensation
Final Drive
Belt
Gear Ratios
1st 2.5:1 (45/18) 2nd 1.68:1 (42/25) 3rd 1.345:1 (39/29) 4th 1.161:1 (36/31) 5th 1.04:1 (26/25)
Transmission / Drive
5 Speed
Frame Type
Steel perimeter upper frame w/ hydroformed main rails and bolt-on lower frame rails Swing Arm One piece cast aluminum polished
Suspension - Front
Huge 49mm telescopic forks
Suspension - Rear
Dual coil over adjustable shock
Fork Angle
38°
Rake
34°
Trail
100 mm / 3.9 in
Wheel Travel - Front
100 mm / 3.9 in
Wheel Travel - Rear
70 mm / 2.7 in
Brakes - Front
2x 292mm discs 4 piston calipers
Brakes - Rear
Single 292mm disc 4 piston caliper
Tyres - Front
D207 120/70ZR-19
Tyres - Rear
D207 180/55ZR-18
