Harley-Davidson Street Bob 114 Specs

2021 • 1 variants

The Harley-Davidson Street Bob 114 is a cruiser produced from 2021 across 1 variant. It is powered by a milwaukee-Eight® 114 engine displacing 1868.2 cc. Peak torque is 161.4 Nm.

About the Harley-Davidson Street Bob 114

Documented here are the full technical specifications for the Harley-Davidson Street Bob 114, a Custom / cruiser motorcycle with a production run from 2021 to 2023. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

Harley-Davidson Street Bob 114 by Year

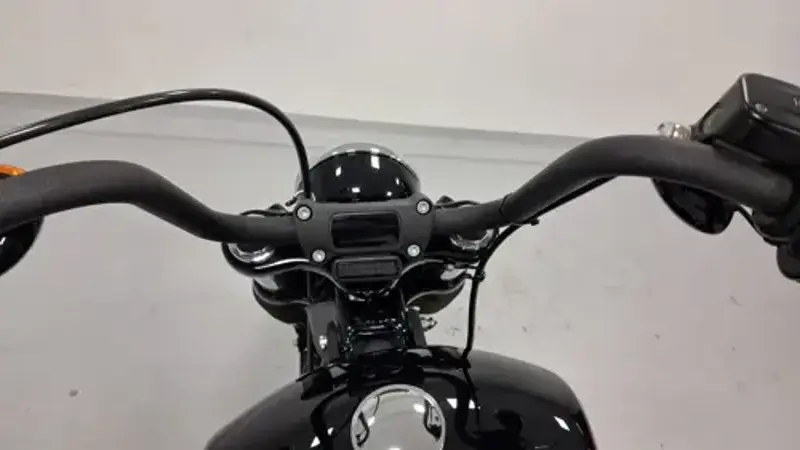

Harley-Davidson Street Bob 114 2021 specs

2021 Harley-Davidson Street Bob 114 View specs →

Spec Evolution

How key specs changed across production years.

Specification	2021	2022	2023
Dry Weight	287.6 kg / 634.0 lbs	286.2 kg / 631.0 lbs ↓	286.2 kg / 631.0 lbs
Engine Detail	Milwaukee-Eight® 114	Milwaukee-Eight® 114 engine	Milwaukee-Eight® 114 engine
Suspension - Front	Telescopic fork	Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers	Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
Suspension - Rear	Twin shocks	Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment	Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
Colours	Vivid Black, Deadwood Green, Stone Washed White Pearl, Baja Orange	Vivid Black, Fastback Blue, Gauntlet Grey Metallic	Redline Red, Vivid Black, Industrial Yellow
Rims	Gloss Black, Steel Laced.	Black, Annihilator cast aluminum wheels. Dunlop® Harley-Davidson Series, bias blackwal.	Black, Annihilator cast aluminum wheels. Dunlop® Harley-Davidson Series, bias blackwal tires.
Wet Weight	298.9 kg / 659.0 lbs	297.1 kg / 655.0 lbs ↓	297.1 kg / 655.0 lbs
Instrumentation	2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication	2.14 inch LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication	2.14 inch LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
Lighting system	High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings	All LED.	All LED.
