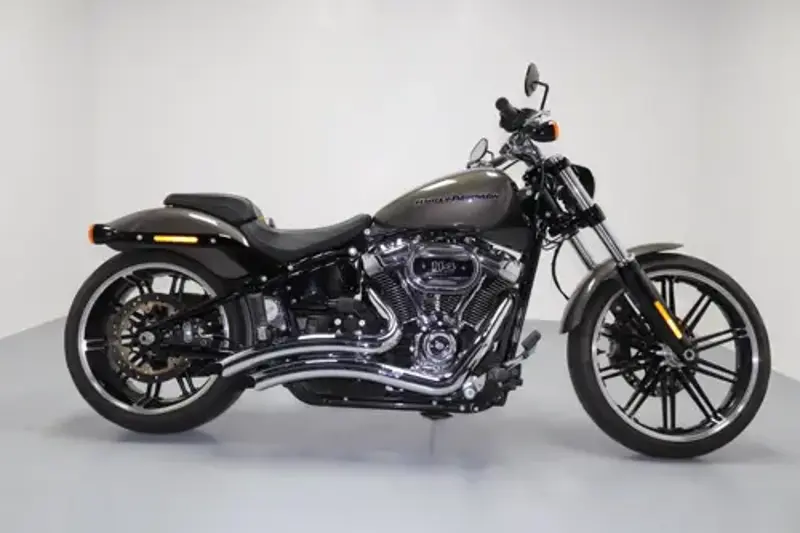

2021 Harley-Davidson Softail Breakout 114 Overview
The 2021 Harley-Davidson Softail Breakout 114 is a custom / cruiser motorcycle built around 1868 cc of displacement. Under the tank sits a Four stroke, V-Twin, Milwaukee-Eight 114, pushrod-operated, overhead valves with hydraulic self-adjusting lifters, 4 valves per cylinder engine, a compression ratio of 10.5:1. 2021 Harley-Davidson Softail Breakout 114 delivers 155 Nm @ 3250 of torque. From a practical standpoint, the 2021 Softail Breakout 114 tips the scales at 305 kg, carries a 13.2-litre fuel tank, offers a seat height of 665 mm and spans a 1695 mm wheelbase. Scroll down for the complete 2021 Harley-Davidson Softail Breakout 114 spec sheet covering every technical detail from suspension travel to tyre sizes.
2021 Softail Breakout 114 - Pros & Cons
Strengths
-
🔧
Fuel injection: The Electronic Sequential Port Fuel Injection (ESPFI) system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
-
📏
Accessible seat height: At 665 mm, the seat height is approachable for a wide range of rider heights and builds confidence in low-speed manoeuvring.
-
⚙️
Low-maintenance final drive: Belt, 32/66 ratio final drive means no chain to clean, lube or adjust - meaningfully less routine maintenance than a chain-driven equivalent.
Considerations
-
ℹ️
Age-related wear: As with any used Softail Breakout 114, a thorough pre-purchase inspection covering consumables, service history and tyres is always recommended.
Wear Points & Servicing Notes
Heat management in traffic
Softail Breakout 114's air-cooled design means engine-bay temperatures build up more in stop-start traffic than on a liquid-cooled equivalent - a function of the cooling method itself, not a defect. Mesh riding gear and avoiding prolonged idling help in hot climates.
Fuelling & injector care
Fuelling comes from Electronic Sequential Port Fuel Injection (ESPFI). Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.
Brake disc and pad wear
The Single 300 mm disc, 4 piston fixed caliper front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.
Suspension condition on used examples
Up front, the Softail Breakout 114 runs Showa Inverted cartridge fork and Mono Shock at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.
Final drive maintenance
Final drive is by belt - lower maintenance than chain with no lubrication needed, but tension and tooth wear should still be checked at service intervals.
Frame & chassis check
The frame is Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.
Handling the weight at a standstill
At 305 kg, the Softail Breakout 114 is a substantial machine - low-speed manoeuvring in car parks takes more physical effort than on a lighter bike, though the weight disappears once rolling.
Softail Breakout 114 - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2021 Harley-Davidson Softail Breakout 114, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Softail Breakout 114 should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task on any Softail Breakout 114. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.
Fuel system care
The Softail Breakout 114's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.
2021 Harley-Davidson Softail Breakout 114 - Frequently Asked Questions
What engine does the 2021 Harley-Davidson Softail Breakout 114 have?
The 2021 Harley-Davidson Softail Breakout 114 uses a Four stroke, V-Twin, Milwaukee-Eight 114, pushrod-operated, overhead valves with hydraulic self-adjusting lifters, 4 valves per cylinder engine with 1868 cc of displacement. It is air cooled.
How much does the 2021 Harley-Davidson Softail Breakout 114 weigh?
The 2021 Harley-Davidson Softail Breakout 114 weighs 305 kg. This is the manufacturer's wet figure.
How much power does the 2021 Harley-Davidson Softail Breakout 114 make?
The 2021 Harley-Davidson Softail Breakout 114 produces 155 Nm @ 3250 of torque.
What is the fuel tank capacity of the 2021 Harley-Davidson Softail Breakout 114?
The 2021 Harley-Davidson Softail Breakout 114 has a 13.2-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 220-263 km between stops.
Is the 2021 Harley-Davidson Softail Breakout 114 suitable for shorter riders?
The 2021 Harley-Davidson Softail Breakout 114 has a seat height of 665 mm. This is a comfortable, accessible height for most riders.
What brakes does the 2021 Harley-Davidson Softail Breakout 114 have?
The 2021 Harley-Davidson Softail Breakout 114 uses Single 300 mm disc, 4 piston fixed caliper at the front and Single 292 mm disc, 2 piston floating caliper at the rear.
What tyre sizes does the 2021 Harley-Davidson Softail Breakout 114 use?
The 2021 Harley-Davidson Softail Breakout 114 runs 130/60B21,63H,BW front and 240/40R18,79V,BW rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2021 Harley-Davidson Softail Breakout 114 have?
The 2021 Harley-Davidson Softail Breakout 114 is fitted with a 6 Speed transmission.
Key Specifications
Engine
Four stroke, V-Twin, Milwaukee-Eight 114, pushrod-operated, overhead valves with hydraulic self-adjusting lifters, 4 valves per cylinder
Power
Not published by manufacturer
Torque
155 Nm / 114.3 lb-ft @ 3250
Top Speed
Not published by manufacturer
Fuel Capacity
13.2 Litres / 3.5 US gal
Advertisement
Full 2021 Harley-Davidson Softail Breakout 114 Specifications
Year
2020 - 21
Make Model
Harley Davidson Softail Breakout 114
Seat Height
665 mm / 26.2 in
Wheelbase
1695 mm / 66.7 in
Ground Clearance
115 mm / 4.5 in
Length
2370 mm / 93.3 in
Dry Weight
294 kg / 648 lbs
Fuel Capacity
13.2 Litres / 3.5 US gal
Wet Weight
305 kg / 672 lbs
Displacement
1868 cc / 113.9 cu-in
Engine Detail
Four stroke, V-Twin, Milwaukee-Eight 114, pushrod-operated, overhead valves with hydraulic self-adjusting lifters, 4 valves per cylinder
Bore x Stroke
102 x 114 mm
Compression Ratio
10.5:1
Cooling System
Air cooled
Exhaust
2-into-2 staggered; catalyst in muffler
Fuel Induction
Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Single-fire, non-wasted, map-controlled spark ignition
Lubrication
Pressurized, dry-sump with oil cooler
Starter
Electric
Clutch
Mechanical, 10 plate wet, assist & conventional
Final Drive
Belt, 32/66 ratio
Gear Ratios
1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79
Primary Drive
Chain, 34/46 ratio
Transmission / Drive
6 Speed
Frame Type
Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Suspension - Front
Showa Inverted cartridge fork
Suspension - Rear
Mono Shock
Rake
34°
Swingarm
Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer
Trail
145 mm / 5.7 in
Brakes - Front
Single 300 mm disc, 4 piston fixed caliper
Brakes - Rear
Single 292 mm disc, 2 piston floating caliper
Tyres - Front
130/60B21,63H,BW
Tyres - Rear
240/40R18,79V,BW
Wheels
Gloss black, Gasser II cast aluminum
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
