Key Specifications
Engine
Four stroke, 60° V-twin Revolution Max 1250, Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT, four valves per cylinder
Power
150 hp / 112 kW @ 9000 rpm
Torque
127 Nm / 94 lb-ft @ 6750 rpm
Fuel Capacity
21.2 Litres / 5.6 US gal
Advertisement

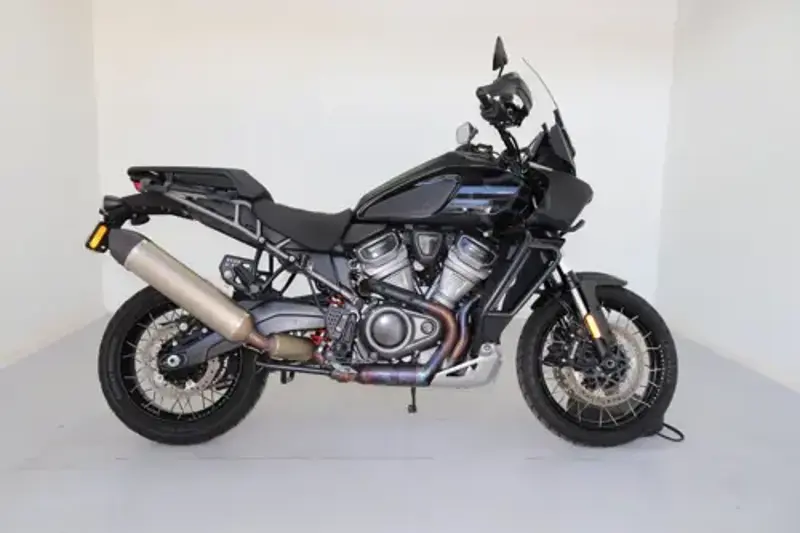

Full 2021 Harley-Davidson Pan America 1250 Special Specifications
Year
2021 -
Make Model
Harley Davidson Pan America 1250 Special
Seat Height
Low seat position 850 mm / 33.4 in High seat position 875 mm / 34.4 in Low seat position with optional ARH suspension 830 mm / 32.7 in High seat position with optional ARH suspension 855 mm / 33.7 in
Wheelbase
1580 mm / 62.2 in
Ground Clearance
210 mm / 8.3 in
Height
1510 mm / 59.4 in
Length
2265 mm / 89.2 in
Seat Height (Laden)
Low seat position 789 mm / 31.1 in High seat position 814 mm / 32 in Low seat position with optional ARH suspension 772 mm / 30.4 in High seat position with optional ARH suspension 797 mm / 31.4 in
Width
965 mm / 38 in
Dry Weight
239 kg / 527 lbs
Fuel Capacity
21.2 Litres / 5.6 US gal
Wet Weight
254 kg / 559 lbs
Displacement
1252 cc / 76.3 cu-in
Engine Detail
Four stroke, 60° V-twin Revolution Max 1250, Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT, four valves per cylinder
Bore x Stroke
105 x 72.3 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled
Exhaust
2-into-1-into-1, catalyst in header
Fuel Induction
Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication
Semi-dry sump
Starter
Electric
Clutch
Mechanical, 8 plate wet, assist & slip, 1090N
Final Drive Ratio
Chain, 19/48
Gear Ratios
1st 13.11 / 2nd 9.687 / 3rd 7.509 / 4th 6.057 / 5th 5.08 / 6th 4.436
Primary Drive Ratios
Gear, 49/89
Transmission / Drive
6 Speed
Frame Type
Stressed-member, high strength low alloy steel trellis frame; stamped, cast, and forged junctions; MIG welded; aluminum forged mid-structure
Suspension - Front
47mm inverted fork with electronically adjustable semi-active damping control (optional: Adjustable Right Height (ARH)), Aluminum fork triple clamps
Suspension - Rear
Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping, adjustable Ride Height (ARH)
Rake
25°
Swingarm
One-piece cast aluminum
Trail
108 mm / 4.3 in
Wheel Travel - Front
191 mm / 7.5 in
Wheel Travel - Rear
191 mm / 7.5 in
Brakes - Front
2x 320mm discs, radially mounted, monoblock, 4-piston caliper
Brakes - Rear
Single 280mm disc, floating, single piston caliper
ABS
Standard
Rims - Front
3.0 x 19
Rims - Rear
4.50 x 17
Tyres - Front
120/70R19 60V
Tyres - Rear
170/60R17 72V
Wheels
Aluminum cast, satin black (optional: annodized aluminum tubeless laced)
