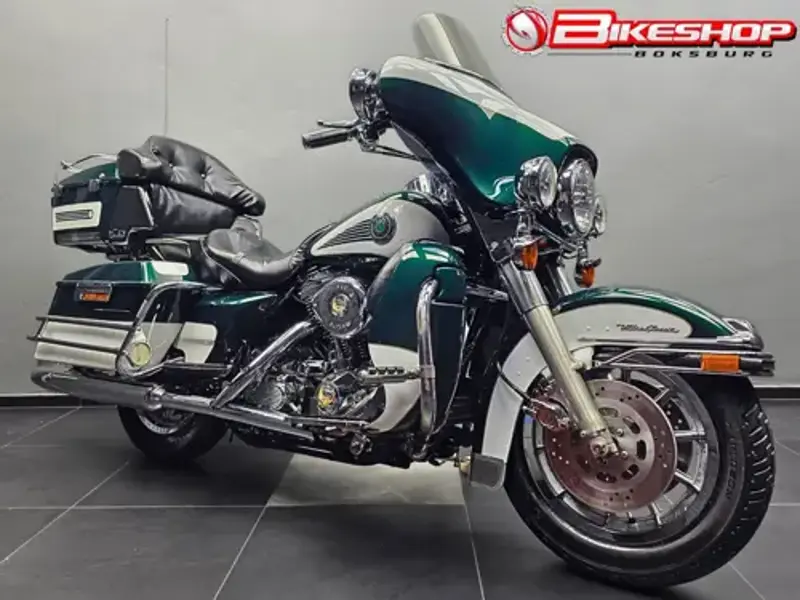

1997 Harley-Davidson Electra Glide Ultra Classic Specifications

Name: 1997 Harley-Davidson Electra Glide Ultra Classic
Brand: Harley-Davidson

Custom / cruiser • Specs last verified 13 July 2026

No images available

Tap to enlarge

1997 Harley-Davidson Electra Glide Ultra Classic Overview

For 1997, Harley-Davidson offers the Electra Glide Ultra Classic as a custom / cruiser motorcycle with 1338 cc on tap. The 1997 Harley-Davidson Electra Glide Ultra Classic is built around a V2, four-stroke engine. Out on the road, the Electra Glide Ultra Classic delivers 102 Nm @ 3000 of torque. Flat out, it's quoted at 145 km/h. In everyday use, the 1997 Electra Glide Ultra Classic tips the scales at 347 kg and offers a seat height of 692 mm. That's roughly 46.4 kg heavier than the average custom / cruiser motorcycle in our database. Every technical detail, from suspension travel to tyre sizes, is covered in the full 1997 Harley-Davidson Electra Glide Ultra Classic spec sheet below.

1997 Electra Glide Ultra Classic - Pros & Cons

Strengths

Accessible seat height: At just 692 mm, flat-footing at a stop is easy for most riders - a genuine confidence builder for less experienced owners.
Low-maintenance final drive: Belt final drive is about as close to maintenance-free as motorcycle drivetrains get.

Considerations

Age-related wear: No particular mechanical concern flags for the Electra Glide Ultra Classic - condition on any used example comes down to how well it's been looked after.

Wear Points & Servicing Notes

Final drive maintenance

Belt final drive keeps day-to-day maintenance minimal on the Electra Glide Ultra Classic - just periodic tension and wear checks rather than the regular cleaning a chain demands.

Handling the weight at a standstill

The Electra Glide Ultra Classic's 347 kg kerb weight is worth factoring into how you handle it at a standstill - parking-lot manoeuvres need a bit more deliberate technique than on a lighter machine.

Electra Glide Ultra Classic - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 1997 Harley-Davidson Electra Glide Ultra Classic should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept Electra Glide Ultra Classic settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a Electra Glide Ultra Classic's engine - keep to the manufacturer's interval rather than stretching it. Use the viscosity grade the manual specifies, not whatever's on sale.

1997 Harley-Davidson Electra Glide Ultra Classic - Frequently Asked Questions

What engine does the 1997 Harley-Davidson Electra Glide Ultra Classic have?

The 1997 Harley-Davidson Electra Glide Ultra Classic uses a V2, four-stroke engine with 1338 cc of displacement.

What is the top speed of the 1997 Harley-Davidson Electra Glide Ultra Classic?

The 1997 Harley-Davidson Electra Glide Ultra Classic has a factory-quoted top speed of 145 km/h. Real-world speeds vary depending on rider weight, conditions and state of tune.

How much does the 1997 Harley-Davidson Electra Glide Ultra Classic weigh?

The 1997 Harley-Davidson Electra Glide Ultra Classic weighs 347 kg. This is the manufacturer's dry figure.

How much power does the 1997 Harley-Davidson Electra Glide Ultra Classic make?

The 1997 Harley-Davidson Electra Glide Ultra Classic produces 102 Nm @ 3000 of torque.

Is the 1997 Harley-Davidson Electra Glide Ultra Classic suitable for shorter riders?

The 1997 Harley-Davidson Electra Glide Ultra Classic has a seat height of 692 mm. This is a comfortable, accessible height for most riders.

Harley-Davidson Electra Glide Ultra Classic Spec Evolution

The Harley-Davidson Electra Glide Ultra Classic was produced across 13 model years (1990-2019). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1990	1991	1992	1993	1994	1997	2001	2014	2015	2016	2017	2018	2019
Wet Weight	340.0 kg / 749.6 lbs	340.0 kg / 749.6 lbs	340.0 kg / 749.6 lbs	-	-	-	385.0 kg / 848.8 lbs	413.2 kg / 911.0 lbs	413.2 kg / 911.0 lbs	411.0 kg / 906.1 lbs	411.0 kg / 906.1 lbs	411.0 kg / 906.1 lbs	410.1 kg / 904.0 lbs
Dry Weight	-	-	-	351 kg / 773.8 lbs	347 kg / 765.0 lbs	347 kg / 765.0 lbs	-	400.1 kg / 882.0 lbs	400.1 kg / 882.0 lbs	394 kg / 868.6 lbs	394 kg / 868.6 lbs	394 kg / 868.6 lbs	398 kg / 877.4 lbs
Engine Detail	-	-	-	-	-	-	-	Air-cooled Twin Cam 103? with Integrated Oil-Cooler	Air-cooled Twin Cam 103? with Integrated Oil-Cooler	Integrated Oil-Cooler	Milwaukee-Eight? 107	Milwaukee-Eight? 107	Milwaukee-Eight™ 107
Engine Type	V2	V2	V2	V2	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke
Top Speed	-	-	-	-	-	145.0 km/h / 90.1 mph	165.0 km/h / 102.5 mph	45.0 km/h / 28.0 mph	-	-	-	-	-
Seat Height	-	-	-	711 mm / 28.0 in.	711 mm / 28.0 in.	692 mm / 27.2 in.	692 mm / 27.2 in.	693 mm / 27.3 in.	740 mm / 29.1 in.	740 mm / 29.1 in.	740 mm / 29.1 in.	740 mm / 29.1 in.	740 mm / 29.1 in.
Fuel Capacity	19.00 litres / 5.02 gallons	19.00 litres / 5.02 gallons	19.00 litres / 5.02 gallons	18.90 litres / 4.99 gallons	18.90 litres / 4.99 gallons	-	18.90 litres / 4.99 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 US gallons
Oil Capacity (Quarts)	-	-	-	-	-	-	-	0.25 quarts	0.25 quarts	0.25 quarts	0.25 quarts	0.25 quarts	5.18 US quarts

Key Specifications

Engine

V2, four-stroke

Power

Not published by manufacturer

Torque

102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3000

Top Speed

145.0 km/h / 90.1 mph

Weight

347 kg / 765.0 lbs

Fuel Capacity

Not published by manufacturer

Full 1997 Harley-Davidson Electra Glide Ultra Classic Specifications

Seat Height 692 mm / 27.2 in.

Dry Weight 347 kg / 765.0 lbs

Top Speed 145.0 km/h / 90.1 mph

Max Torque 102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3000

Power-to-Weight Ratio 0.1700 HP/kg

Displacement (cc) 1338.00 cc

Displacement (ci) 81.64 cubic inches

Engine Type V2, four-stroke

Starter Electric

Valve System 2

Final Drive Belt

Gearbox 5-speed

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
