Key Specifications
Engine
Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Torque
169 Nm / 124.6 lb-ft @ 3500 rpm
Fuel Capacity
22.7 Litres / US 6.0 gal
Advertisement

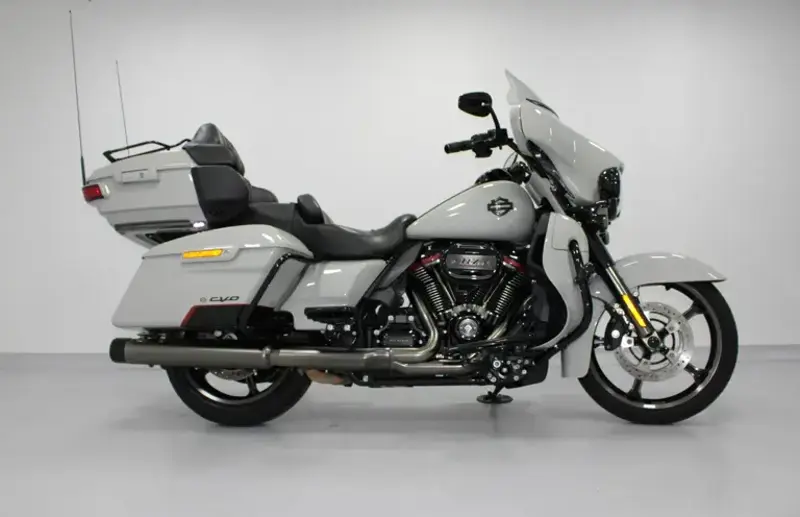

Full 2020 Harley-Davidson CVO Limited Specifications
Year
2019 - 20
Make Model
Harley Davidson CVO Limited
Seat Height
760 mm / 29.9 in
Wheelbase
1625 mm / 64.0 in
Ground Clearance
125 mm / 4.9 in
Length
2600 mm / 102.4 in
Dry Weight
411 kg / 906 lbs
Fuel Capacity
22.7 Litres / US 6.0 gal
Oil Capacity
4.7 Litres / US 5 qts
Wet Weight
428 kg / 944 lbs
Displacement
1923 cc / 117 cu-in
Engine Detail
Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Bore x Stroke
103.5 X 114.3 mm
Compression Ratio
10.2:1
Cooling System
Air cooled
Exhaust
Dual, with crossover
Fuel Induction
Electronic Sequential Port Fuel Injection
Ignition
Single-fire, non-wasted, map-controlled spark ignition
Lubrication
Pressurized, dry-sump with oil cooler
Starter
Electric
Final Drive
Belt
Gear Ratios
1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Primary Drive
Chain, 34/46 ratio
Transmission / Drive
6 Speed
Suspension - Front
Showa dual bending valve front suspension
Suspension - Rear
Emulsion rear suspension with hand-adjustable pre-load
Lean Angle
33.4°
Rake
26°
Trail
170 mm / 6.7 in
Brakes - Front
Caliper Type 32 mm, 4-piston fixed
Brakes - Rear
Caliper Type 32 mm, 4-piston fixed
Tyres - Front
130/80B17 65H
Tyres - Rear
180/65B16 81H
Wheels - Front
Gloss Black and Contrast Chrome Slicer
Wheels - Rear
Gloss Black and Contrast Chrome Slicer
