Ducati XDiavel Specs

2016 • 1 variants

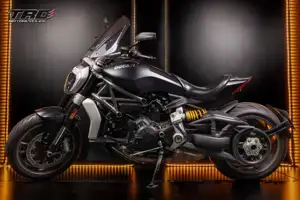

The Ducati XDiavel is a cruiser produced from 2016 across 1 variant. Peak power output is 156 hp. Peak torque is 128.9 Nm.

About the Ducati XDiavel

Documented here are the full technical specifications for the Ducati XDiavel, a Custom / cruiser motorcycle with a production run from 2016 to 2020. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

AdSense - 728Ã90

Ducati XDiavel by Year

2016 Ducati XDiavel View specs →

Spec Evolution

How key specs changed across production years.

Specification	2016	2018	2020
Displacement	1262 cc / 77 cu-in	1262 cc / 77 cu in	1262 cc / 77 cu-in
Brakes - Front	2 x 320 mm (12,60 in) Semifloating discs, Radial callipers and radial master cylinder. BOSCH cornering ABS as standard equipment	2x 320 mm semifloating discs, radial Brembo monobloc 4-piston M4-32 callipers and radial master cylinder	2x 320 mm semifloating discs, radial Brembo monobloc 4-piston M4-32 callipers and radial master cylinder
Brakes - Rear	265 mm (10,43 in) Disc, 2-piston floating calliper. BOSCH cornering ABS as standard equipment	Single 265 mm disc, 2-piston floating calliper	Single 265 mm disc, 2-piston floating calliper
Suspension - Front	Adjustable ø 50 mm (ø 1,97 in) usd fork with DLC treatment	50mm USD adjustable forks	50mm USD adjustable forks
Suspension - Rear	Single shock absorber, Adjustable preload and rebound, Remote reservoir. Single sided swingarm, Cast/trellis frame	Single shock absorber, adjustable preload and rebound, remote reservoir. Single sided cast/trellis frame swingarm	Single shock absorber, adjustable preload and rebound, remote reservoir. Single sided cast/trellis frame swingarm
Final Drive	Belt; Front sprocket Z28; Rear sprocket Z80	Belt, front sprocket Z28, rear sprocket Z80	Belt, front sprocket Z28, rear sprocket Z80
Tyres - Front	Pirelli Diablo Rosso II, 120/70 ZR17	120/70 ZR17 Pirelli Diablo Rosso II	120/70 ZR17 Pirelli Diablo Rosso II
Tyres - Rear	Pirelli Diablo Rosso II 240/45 ZR17	240/45 ZR17 Pirelli Diablo Rosso II	240/45 ZR17 Pirelli Diablo Rosso II
Primary Drive	Straight cut gears, 1,84:1 ratio	Straight cut gears, 1.84:1 ratio	Straight cut gears, 1.84:1 ratio
Rake	30°	30º	30º
Wheels - Front	3.50 x 17	Light alloy, cast, 3.50 x 17	Light alloy, cast, 3.50 x 17
Wheels - Rear	8.00 x 17	Light alloy, cast, 8.00 x 17	Light alloy, cast, 8.00 x 17
Fuel Induction	BOSCH fuel injection system, Full ride-by-wire system, DEQ 56 oval throttle bodies	BOSCH fuel injection system, full ride-by-wire system, 56mm oval throttle bodies	BOSCH fuel injection system, full ride-by-wire system, DEQ 56 oval throttle bodies
Max Torque	128.9 Nm / 13.1 kgf-m / 95 lb-ft @ 5000 rpm	128.9 Nm / 95 lb-ft @ 5000 rpm	128.9 Nm / 95 lb-ft @ 5000 rpm
