Key Specifications
Engine
Four stroke, 90°°L°twin cylinder, DOHC, desmodromic 4 valve per cylinder.
Power
109 kW / 148 hp @ 10750 rpm
Torque
99 Nm / 10.1 kgf-m / 73 ft-lb @ 9000 rpm
Weight
193 kg / 425.5 lbs
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Advertisement

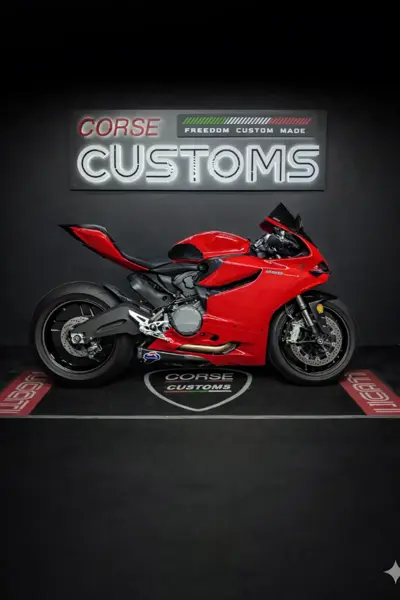

Full 2014 Ducati 899 Panigale Specifications
Year
2014
Make Model
Ducati 899 Panigale
Seat Height
830 mm / 32.48 in
Wheelbase
1426 mm / 56.14 in
Height
1100 mm / 43.31in
Length
2075 mm / 81.69in
Dry Weight
169 kg / 372.5 lbs
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Wet Weight
193 kg / 425.5 lbs
Displacement
899 cc / 54.9 cu in
Engine Detail
Four stroke, 90°°L°twin cylinder, DOHC, desmodromic 4 valve per cylinder.
Bore x Stroke
100 x 57.2 mm
Compression Ratio
12.5:1
Cooling System
Liquid cooled
Emissions
Euro 3 compliant
Fuel Induction
Mitsubishi electronic fuel injection system. Single injector per cylinder. Full ride-by-wire elliptical throttle bodies.
Ignition
Digital CDI
Lubrication
Wet sump
Starter
Electric
Clutch
Clutch Wet multiplate clutch with hydraulic control
Final Drive
Chain 520; Front Sprocket 15; Rear Sprocket 44
Gear Ratios
1st 37/15 / 2nd 30/16 / 3rd27/18 / 4th 25/20 / 5th 24/22 / 6th 23/24.
Primary Drive
Straight cut gears, Ratio 1.77:1
Transmission / Drive
6 Speed
Frame Type
Monocoque aluminum
Suspension - Front
Fully adjustable BPF Showa forks, 43 mm chromed inner tubes
Suspension - Rear
Fully adjustable Sachs unit. Aluminum double-sided swingarm
Rake
24°
Steering Angle
52°
Trail
96 mm / 3.78 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
130 mm / 5.12 in
Electrical System
2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Brakes - Front
2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston calipers with ABS
Brakes - Rear
Single 245 mm disc, 2-piston caliper with ABS
Tyres - Front
120/70 ZR17 Pirelli Diablo Rosso Corsa
Tyres - Rear
180/60 ZR17 Pirelli Diablo Rosso Corsa
Wheels - Front
10-spoke light alloy 3.50" x 17"
Wheels - Rear
10 spokes light alloy 5.50" x 17"
